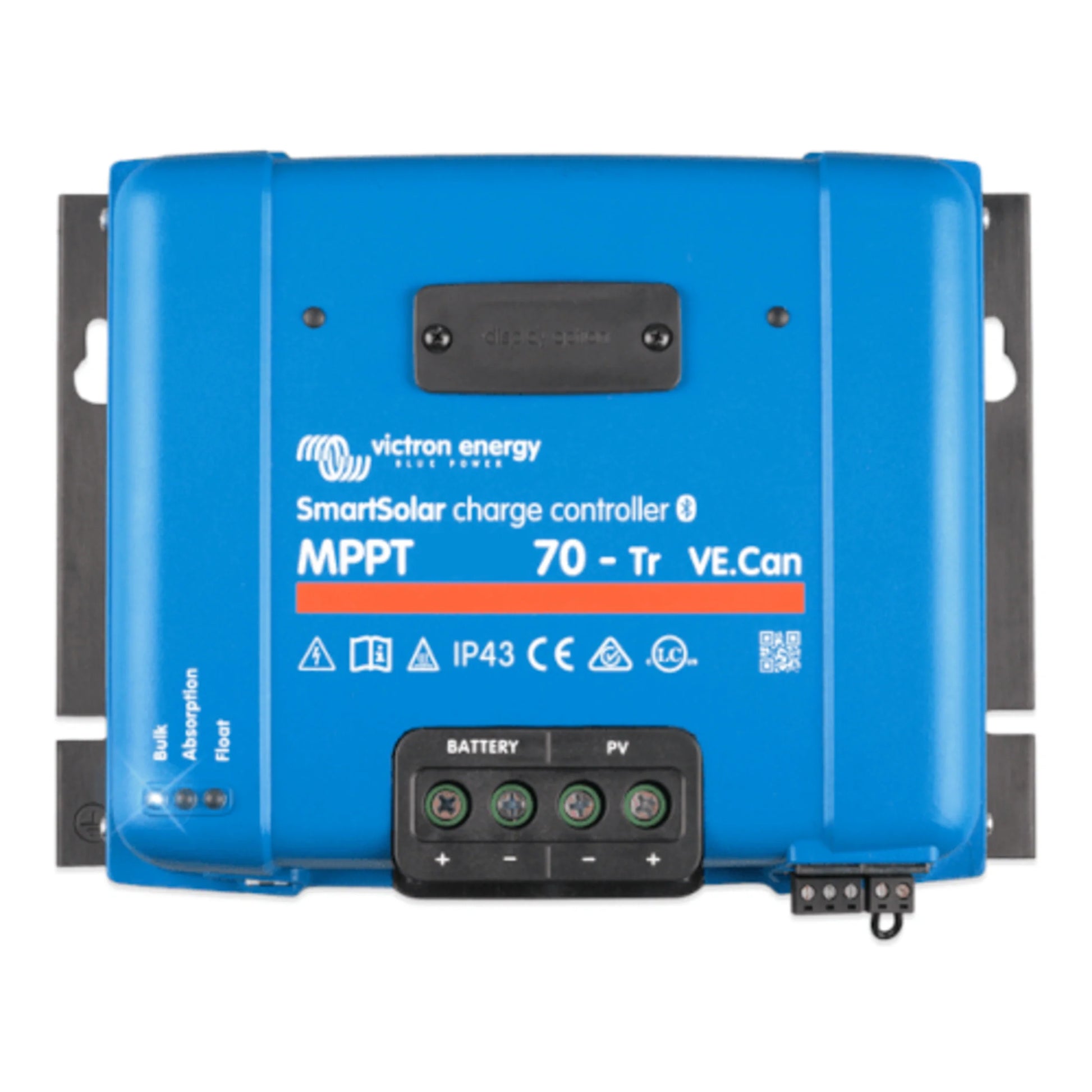

Victron Energy SmartSolar MPPT 250/70-Tr

The Victron Energy SmartSolar MPPT 150/60 to 250/70 charge controllers harness advanced Ultra-Fast Maximum Power Point Tracking (MPPT) technology to optimise solar energy harvesting and battery charging efficiency. Designed for off-grid, hybrid, and industrial solar systems, SmartSolar ensures reliable energy management while extending battery life.

Key Features:

⚡ Ultra-Fast MPPT Charging

• Maximised Solar Harvesting: Increases energy yield by up to 30% compared to PWM controllers.
• Adaptive MPPT Algorithm: Advanced detection of multiple power points ensures optimal energy harvest, even under partial shading conditions.
• Outstanding Conversion Efficiency: Exceeds 99% without the need for a cooling fan.

📡 Smart Connectivity & Remote Monitoring

• Built-in Bluetooth: Wireless monitoring and configuration via the VictronConnect App.
• VE.Direct Port: Enables wired data connection to a Color Control GX, other GX products, PC, or monitoring devices.
• Remote On/Off Function: Integrates with a VE.Bus BMS or external control systems.

🔋 Intelligent Battery Management

• Battery Recovery Function: Supports deeply discharged batteries, recharging from 0V if cells are undamaged.
• Smart Battery Sensing: Communicates battery voltage and temperature using Smart Battery Sense, BMV-712, or SmartShunt.
• Flexible Charging Algorithm: Fully programmable with 8 pre-configured charge profiles.

🛡️ Advanced Safety & Protection

• Over-Temperature Protection: Power derating prevents overheating.
• PV Short Circuit & Reverse Polarity Protection: Ensures system safety.
• PV Reverse Current Protection: Prevents backflow damage.

🔄 Synchronized Parallel Charging

• Bluetooth Synchronisation: Up to 10 units can be linked for parallel charging.

📌 Available Models:

• SmartSolar MPPT 150/60 – 150V max PV input, 60A charge current
• SmartSolar MPPT 150/70 – 150V max PV input, 70A charge current
• SmartSolar MPPT 250/60 – 250V max PV input, 60A charge current
• SmartSolar MPPT 250/70 – 250V max PV input, 70A charge current

🔧 Optional Accessories

• SmartSolar Pluggable LCD Display: Easily attachable for direct charge status viewing.
• Programmable Relay: Can be configured for alarms or automation via a smartphone.

The SmartSolar MPPT series is a state-of-the-art solar charge solution designed for maximum energy efficiency, smart connectivity, and long-term system reliability.

You can download the datasheet for Victron Energy SmartSolar MPPT range here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
