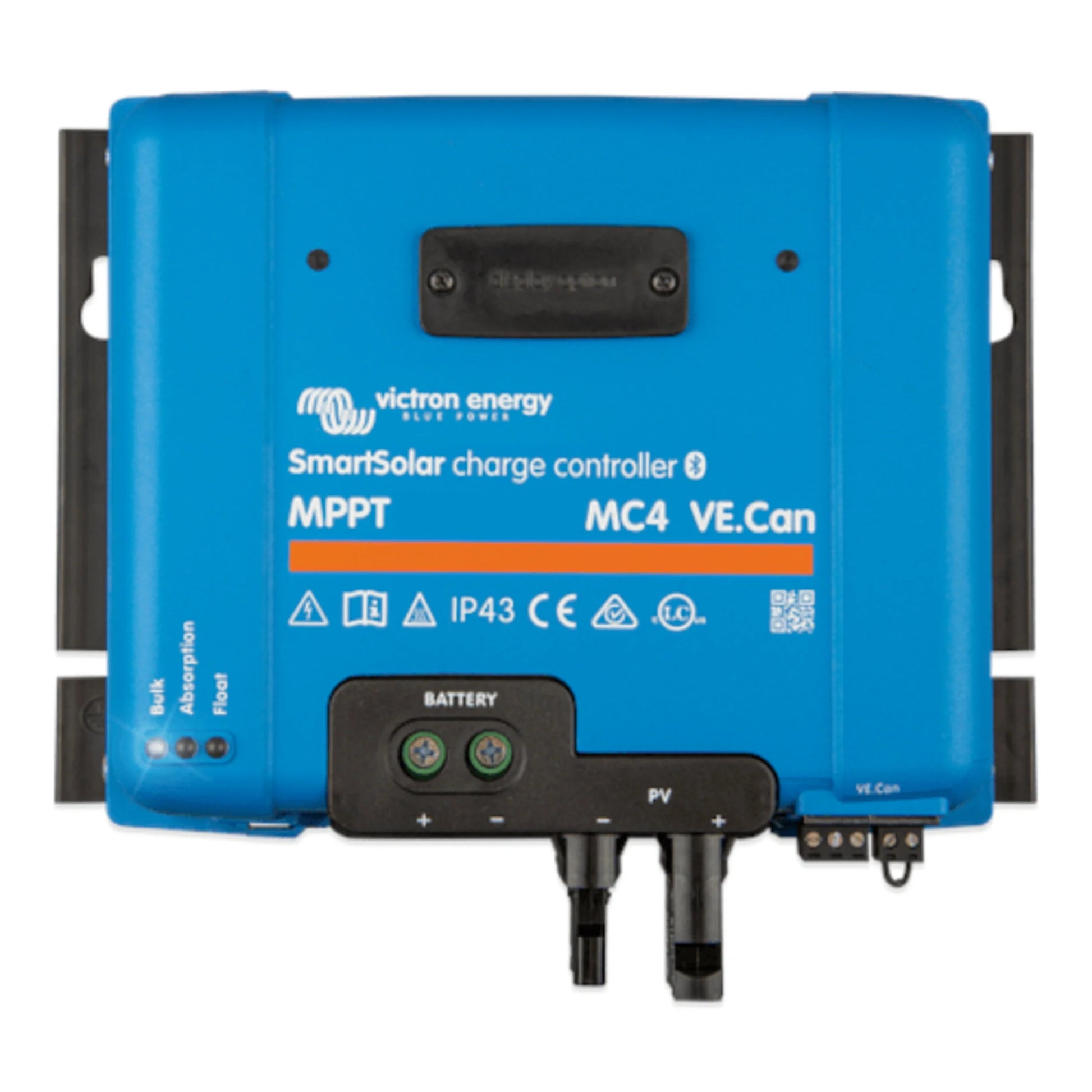

Victron Energy SmartSolar MPPT 250/100-MC4 VE.Can

The Victron Energy SmartSolar MPPT VE.Can series offers high-efficiency Maximum Power Point Tracking (MPPT) charge controllers designed for large-scale and industrial solar energy systems. With advanced connectivity options, including VE.Can and VE.Direct, these controllers ensure seamless system integration and remote monitoring.

Key Features:

⚡ Ultra-Fast MPPT Charging

• Maximum Energy Harvest: Increases solar efficiency by up to 30% compared to PWM controllers.
• Adaptive MPPT Algorithm: Optimises performance by identifying the best power point, even in partial shading conditions.
• High Conversion Efficiency: Exceeds 99%, with no cooling fan required.

📡 Smart Connectivity & Remote Monitoring

• Built-in Bluetooth: Monitor and configure settings via the VictronConnect App.
• VE.Direct & VE.Can: Allows wired connections to Color Control GX, other GX products, PCs, or monitoring systems.
• Parallel Charging: Sync up to 25 units with VE.Can or 10 units with Bluetooth for large installations.

🔋 Intelligent Battery Management

• Fully Programmable Charging: Includes 8 pre-configured charge profiles and a fully customisable charge algorithm.
• Battery Recovery Function: Supports charging from 0V if the battery is not permanently damaged.
• Smart Battery Sensing: Communicates battery voltage, temperature, and current using Smart Battery Sense, BMV-712, or SmartShunt.

🛡️ Advanced Safety & Protection

• Over-Temperature Protection: Automatic power derating at high temperatures.
• PV Short Circuit & Reverse Polarity Protection: Safeguards system components.
• PV Reverse Current Protection: Prevents backflow damage.

🔄 Synchronised VE.Can Charging

• Multiple Controller Solution: Connect and synchronise up to 25 SmartSolar controllers via VE.Can.

📌 Available Models:

• SmartSolar MPPT 250/70 VE.Can – 250V max PV input, 70A charge current
• SmartSolar MPPT 250/85 VE.Can – 250V max PV input, 85A charge current
• SmartSolar MPPT 250/100 VE.Can – 250V max PV input, 100A charge current

🔧 Optional Accessories

• SmartSolar Pluggable LCD Display: Plug-in display for direct charge status viewing.
• Programmable Relay: Configurable for alarms or system automation.
• Remote On/Off Function: Integrates with a VE.Bus BMS for automated control.

The SmartSolar MPPT VE.Can series is a state-of-the-art solar charge solution for large-scale, industrial, and off-grid solar installations, delivering efficiency, flexibility, and advanced system integration.

You can download the datasheet for Victron Energy SmartSolar MPPT range here.
