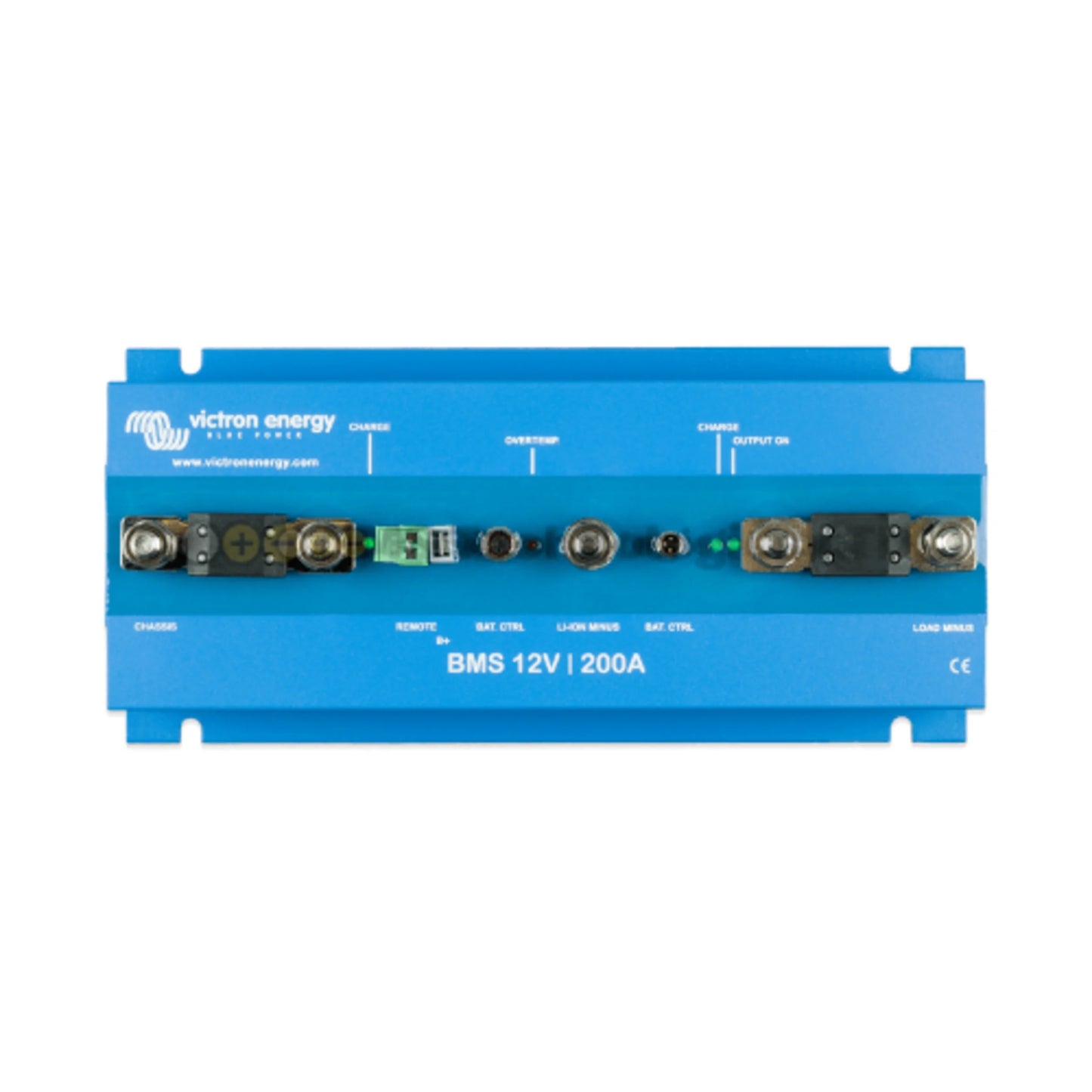

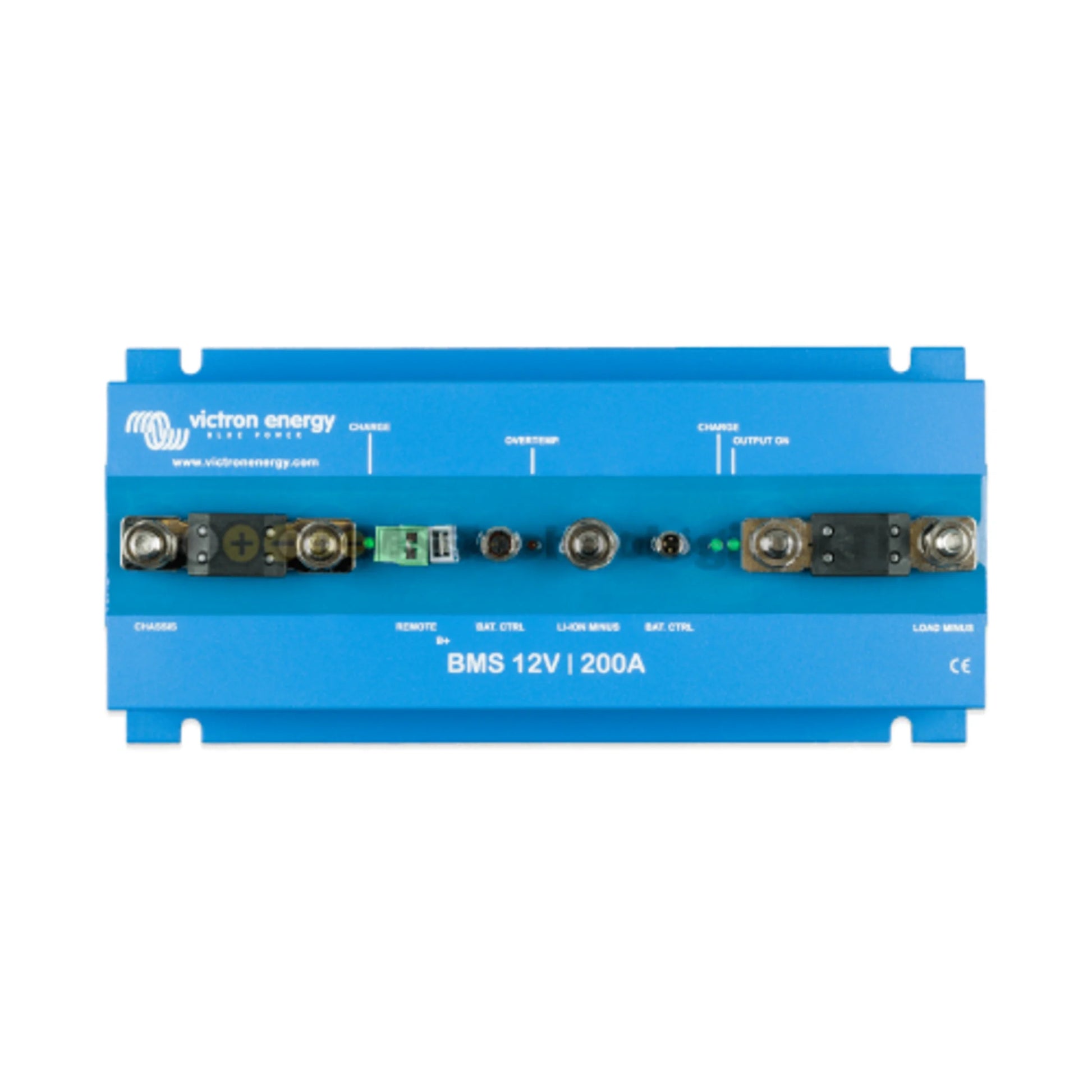

Smart BMS 12/200

The Smart BMS 12/200 is an all-in-one Battery Management System (BMS) designed for Victron Lithium-Iron-Phosphate (LiFePO4) Smart Batteries. Specifically engineered for 12V systems with a 12V alternator, such as in vehicles and boats, it provides safe and efficient battery management.

Key Features:

• Designed for 12V systems with a 12V alternator.
• Combines a Current Limiter, Battery Combiner, and Battery Protector in a single unit.
• Allows safe connection of any size 12V alternator and starter battery to Smart Lithium batteries.
• Monitors and protects each battery cell against:
  • Low voltage
  • High voltage
  • Over temperature conditions
• Dedicated alternator connection with current limiting to prevent overloading.
• One-way traffic from the alternator to the battery, protecting the starter battery from excessive discharge.
• Built-in Bluetooth for monitoring and configuration via the VictronConnect app.
• Remote on/off connector for system control via a remote switch.
• Pre-alarm contact to provide a warning before disconnecting the batteries from the system.

You can download the datasheet for the Victron Energy Smart BMS 12/200 here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
