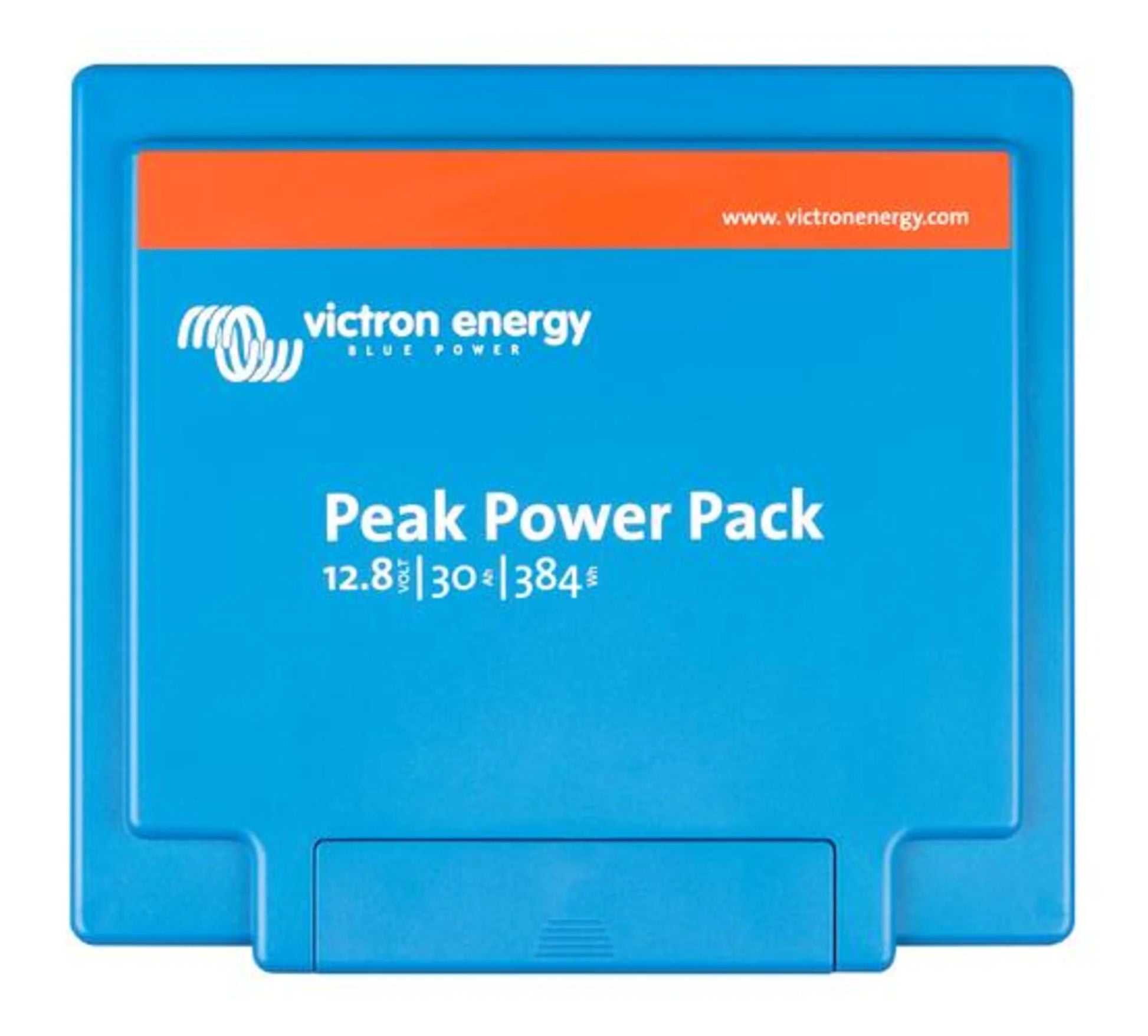

Victron Energy Lithium-Ion Peak Power Pack

The Victron Energy Lithium-Ion Peak Power Pack is a compact, lightweight battery pack with intrinsically safe LiFePO4 cells, a built-in charger, and high discharge current capability. Designed for mobile applications, it is ideal for caravan manoeuvring, solar power storage, and other energy-intensive uses.

Key Features:

• Nominal voltage: 12.8V
• Battery capacity: 20Ah to 40Ah
• Not suitable for parallel or series connection
• Lightweight and easy to install – perfect for mobile applications
• Effective protection against over-discharge, preventing damage to lead-acid replacements

Output 1 – "Mover" (High-Capacity Output)

• Designed for high-energy applications such as caravan manoeuvring
• Short-circuit proof and protected against excessive battery discharge

Output 2 – "Domestic" (Low DC Load Output)

• Ideal for lighting, audio, video, pumps, fridges, and other low-power devices
• Short-circuit proof and protected against excessive battery discharge

Charging Inputs

• Input 1 – "Car/Solar": Supports charging while driving or via a solar panel
• Voltage range: 11V – 25V
• Equipped with voltage and current control for safe charging
• Compatible with alternators and battery chargers
• Input 2 – "Adapter": Compatible with the supplied adapter
• Battery charging current: 3A (supports 110V/230V power supply)

Rapid Charging (30Ah/40Ah Models Only)

• A battery charger or inverter/charger can be connected to the high-capacity output
• Maximum charging current: 15A – 20A
• Recommended charging voltage: 14V (maximum 14.2V)

Storage Mode

• Reduces power consumption to almost zero
• Prevents battery damage due to excessive discharge during storage

Remote Control with Status Indicator

• Push-button (included) with dual-colour LED status indicator:
• Short push: High-capacity output activated for 30 minutes (red LED)
• Hold for 2 seconds: High-capacity output always activated (slow flashing red LED)
• Hold for 5 seconds: Storage mode activated (blue LED flashes 10 times)
• Battery charging via Input 1: Slow flashing blue LED
• Battery fully charged: Blue LED
• Overload or overheating detected: Flashing red LED

VE.Direct Port – PC & Smartphone Connectivity

• Connect to a PC or smartphone using 'VE.Direct to USB' or 'VE.Direct Bluetooth Smart Dongle'
• Operation:
• Output 1: On / 30-minute timer / Off
• Output 2: On / Off
• Input 1: On / Off
• Monitoring:
• Battery voltage
• Temperature and alarms

You can download the datasheet for the Victron Energy Peak Power Pack here.
