Trina Solar 450W Vertex S+ N-Type TOPCon Monofacial, Dual Glass, Black Frame

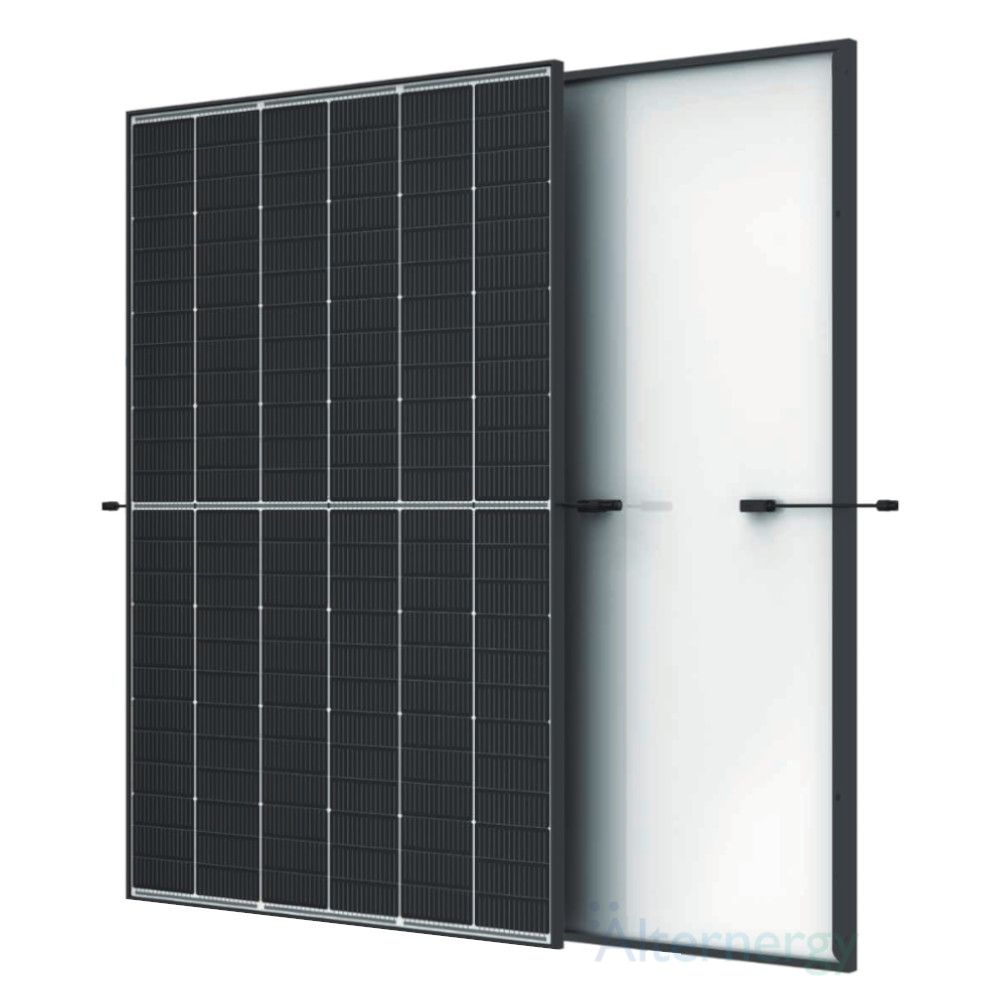

Trina Solar 450W Vertex S+ N-Type TOPCon Monofacial Dual Glass Solar Panel with Black Frame

Introducing the Trina Solar 450W Vertex S+ N-Type TOPCon Monofacial Dual Glass Solar Panel, an advanced solar solution designed for both commercial and residential applications. Utilizing N-Type i-TOPCon cell technology, this panel offers exceptional durability, fire resistance, and performance. With a sleek black aluminium frame and dual-glass construction, the Vertex S+ delivers 450W output power and an impressive 22.5% module efficiency.

Key Features:

• N-Type i-TOPCon Technology: Leverage the efficiency and performance of N-Type i-TOPCon cells, achieving a module efficiency of 22.5% for maximum energy output.
• Dual Glass Construction: Equipped with dual 1.6mm strengthened glass, this panel offers enhanced durability, resistance to fire, and protection against micro-cracks and scratches during installation.
• Monofacial Design: Optimized for installations where space efficiency and aesthetics are crucial, focusing power generation on one side of the panel.
• Innovative Mechanical Strength: Features non-destructive cutting technology that improves mechanical resistance, ensuring long-lasting durability and reliability.
• High Load Capacity: Certified to withstand heavy snow loads of up to 5,400 Pascals and wind loads of up to 4,000 Pascals, making it highly resilient in extreme weather conditions.
• Versatile Environmental Performance: With a fire rating of A and C, as well as resistance to salt spray, sand, dust, and ammonia, this panel is fully applicable in coastal, high temperature, high humidity, and other harsh environments.
• IP68 Protection: Provides superior protection against water and dust ingress, ensuring consistent performance over time.
• Comprehensive Warranty: Backed by a 25-year product warranty and an extended 30-year power warranty, ensuring long-term reliability and peace of mind.

Product Specifications:

• Brand: Trina Solar
• Power Class: 450 W
• Efficiency: 22.5%
• Cells: 144 Half Cells (6X24 half cells)
• Frame Colour: Black
• Backsheet: White
• Maximum System Voltage: 1,500V DC
• Open Circuit Voltage (Voc): 52.9V
• Short Circuit Current (Isc): 10.74A
• Connector Type: TS4 (MC4 EVO2 Compatible)
• Dimensions:
• Length: 1,762 mm
• Width: 1,134 mm
• Thickness: 30 mm
• Weight: 21 kg
• Panels per Pallet: 36
• Panels per Container: 936
• MCS Certification Number: BABT8804-123-450W
• Warranty:
• Product: 25 Years
• Performance: 30 Years
• Annual Degradation: 0.40%

Datasheet

For detailed technical specifications, download the product datasheet here.
