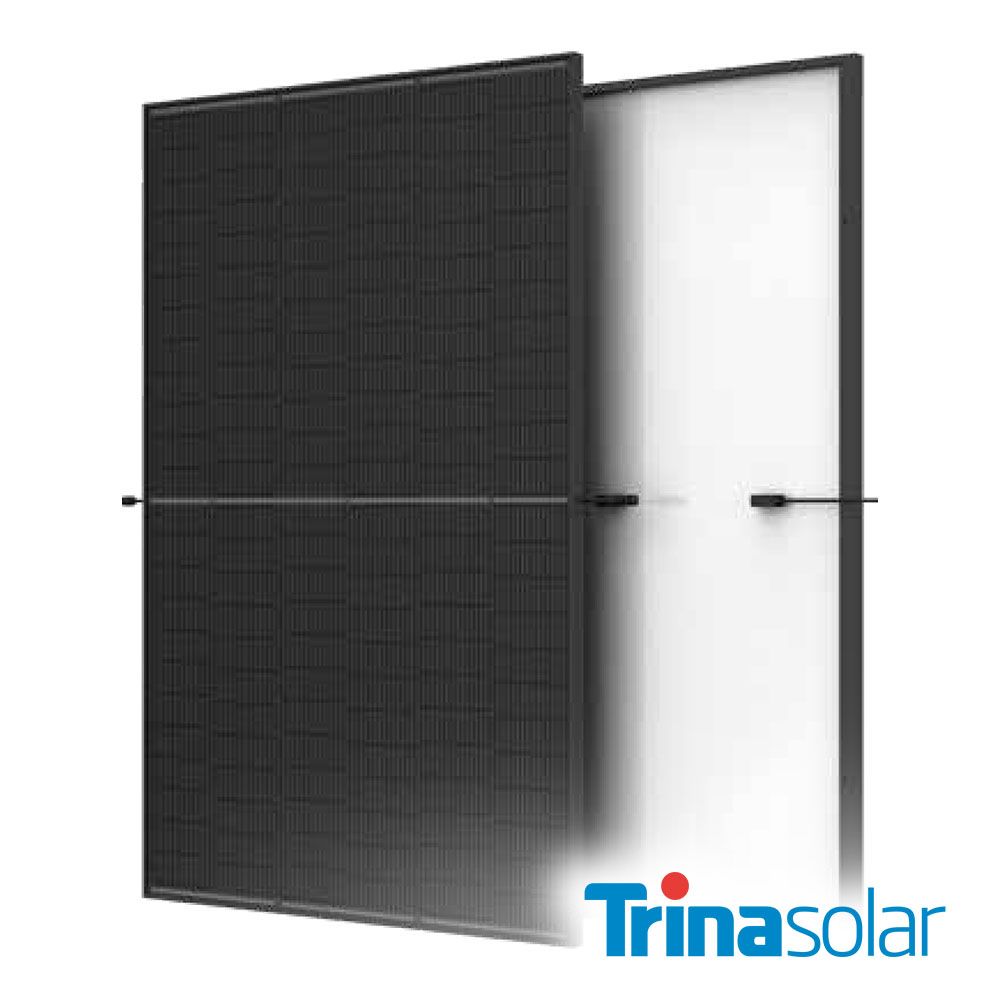

Trina Solar 445W Vertex S+ N-Type TOPCon Monofacial, Dual Glass, All Black

Trina Solar 445W Vertex S+ N-Type TOPCon Monofacial Dual Glass All Black Solar Panel

Enhance your solar installation with the Trina Solar 445W Vertex S+ N-Type TOPCon Monofacial Dual Glass All Black Solar Panel. Utilizing advanced N-Type i-TOPCon cell technology, this panel is designed for superior durability, fire resistance, and performance. The Vertex S+ delivers 445W output power with a module efficiency of 22.3%, making it an ideal choice for both commercial and residential applications where aesthetics and performance are paramount.

Key Features:

• N-Type i-TOPCon Technology: Achieve high performance with N-Type i-TOPCon cells, delivering a module efficiency of 22.3% for optimal energy production.
• Dual Glass Construction: Features dual 1.6mm strengthened glass, offering enhanced durability, fire resistance, and protection against micro-cracks and scratches during installation.
• All Black Design: A sleek and stylish all-black appearance, with a black aluminium frame and black backsheet, perfect for aesthetically demanding installations.
• Monofacial Design: Optimized for power generation on one side, making it suitable for installations where space efficiency and design are crucial.
• Enhanced Mechanical Strength: Innovative non-destructive cutting technology ensures improved mechanical resistance, enhancing the panel's durability and longevity.
• High Load Capacity: Certified to withstand heavy snow loads up to 5,400 Pascals and wind loads up to 4,000 Pascals, ensuring resilience in extreme weather conditions.
• Versatile Environmental Performance: With a fire rating of C and resistance to salt spray, sand, dust, and ammonia, this panel is ideal for coastal, high temperature, high humidity, and other harsh environments.
• IP68 Protection: Provides excellent protection against water and dust ingress, ensuring the panel's long-term performance.
• Comprehensive Warranty: Backed by a 25-year product warranty and an extended 30-year power warranty, providing long-term reliability and peace of mind.

Product Specifications:

• Brand: Trina Solar
• Power Class: 445 W
• Efficiency: 22.3%
• Cells: 144 Half Cells (6X24 half cells)
• Frame Colour: Black
• Backsheet: Black
• Maximum System Voltage: 1,500V DC
• Open Circuit Voltage (Voc): 52.6V
• Short Circuit Current (Isc): 10.71A
• Connector Type: TS4 (MC4 EVO2 Compatible)
• Dimensions:
• Length: 1,762 mm
• Width: 1,134 mm
• Thickness: 30 mm
• Weight: 21.0 kg
• Panels per Pallet: 36
• Panels per Container: 936
• MCS Certification Number: BABT8804-129-445W
• Warranty:
• Product: 25 Years
• Performance: 30 Years
• Annual Degradation: 0.40%

Datasheet

For detailed technical specifications, download the product datasheet here.
