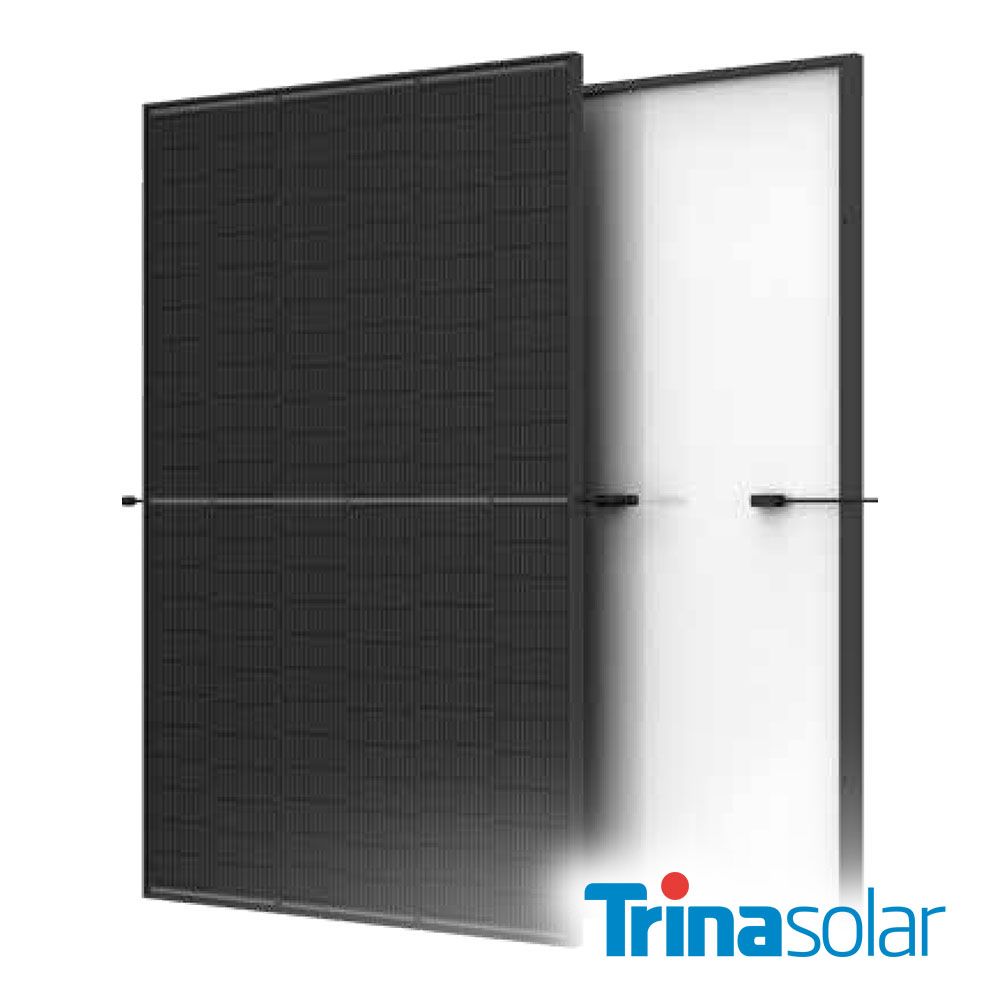

Trina Solar 440W Vertex S+ N-Type TOPCon Monofacial, Dual Glass, All Black

Trina Solar 440W Vertex S+ N-Type TOPCon Monofacial Dual Glass All Black Solar Panel

Elevate your solar installation with the Trina Solar 440W Vertex S+ N-Type TOPCon Monofacial Dual Glass All Black Solar Panel. This advanced panel, built on N-Type i-TOPCon cell technology, offers superior durability, fire resistance, and high performance. With a sleek all-black design, the Vertex S+ delivers 440W of power and a module efficiency of 22%, making it a top choice for both commercial and residential applications where aesthetics and performance are crucial.

Key Features:

• N-Type i-TOPCon Technology: Benefit from cutting-edge N-Type i-TOPCon cells, delivering a module efficiency of 22.0% for optimized energy production.
• Dual Glass Construction: Designed with dual 1.6mm strengthened glass, this panel provides enhanced durability, fire resistance, and protection against micro-cracks and scratches during installation.
• All Black Design: A stylish and sleek all-black appearance, with a black aluminium frame and black backsheet, perfect for aesthetically demanding installations.
• Monofacial Design: Optimized for power generation on one side, ideal for installations where space efficiency and design are critical.
• Innovative Mechanical Strength: Non-destructive cutting technology improves mechanical resistance, ensuring long-lasting durability and reliability.
• High Load Capacity: Certified to withstand heavy snow loads of up to 5,400 Pascals and wind loads of up to 4,000 Pascals, ensuring robust performance in extreme weather conditions.
• Versatile Environmental Performance: With a fire rating of C and resistance to salt spray, sand, dust, and ammonia, this panel is fully suited for coastal, high-temperature, high-humidity, and other harsh environments.
• IP68 Protection: Offers top-tier protection against water and dust ingress, ensuring long-term performance and reliability.
• Comprehensive Warranty: Backed by a 25-year product warranty and an extended 30-year power warranty, providing long-term peace of mind and dependable energy production.

Product Specifications:

• Brand: Trina Solar
• Power Class: 440 W
• Efficiency: 22.0%
• Cells: 144 Half Cells (6X24 half cells)
• Frame Colour: Black
• Backsheet: Black
• Maximum System Voltage: 1,500V DC
• Open Circuit Voltage (Voc): 52.2V
• Short Circuit Current (Isc): 10.67A
• Connector Type: TS4 (MC4 EVO2 Compatible)
• Dimensions:
• Length: 1,762 mm
• Width: 1,134 mm
• Thickness: 30 mm
• Weight: 21.0 kg
• Panels per Pallet: 36
• Panels per Container: 936
• MCS Certification Number: BABT8804-129-440W
• Warranty:
• Product: 25 Years
• Performance: 30 Years
• Annual Degradation: 0.40%

Datasheet

For detailed technical specifications, download the product datasheet here.
