Sunsynk MAX 16kW Single-Phase Hybrid Inverter | SYNK-16K-SG01LP1

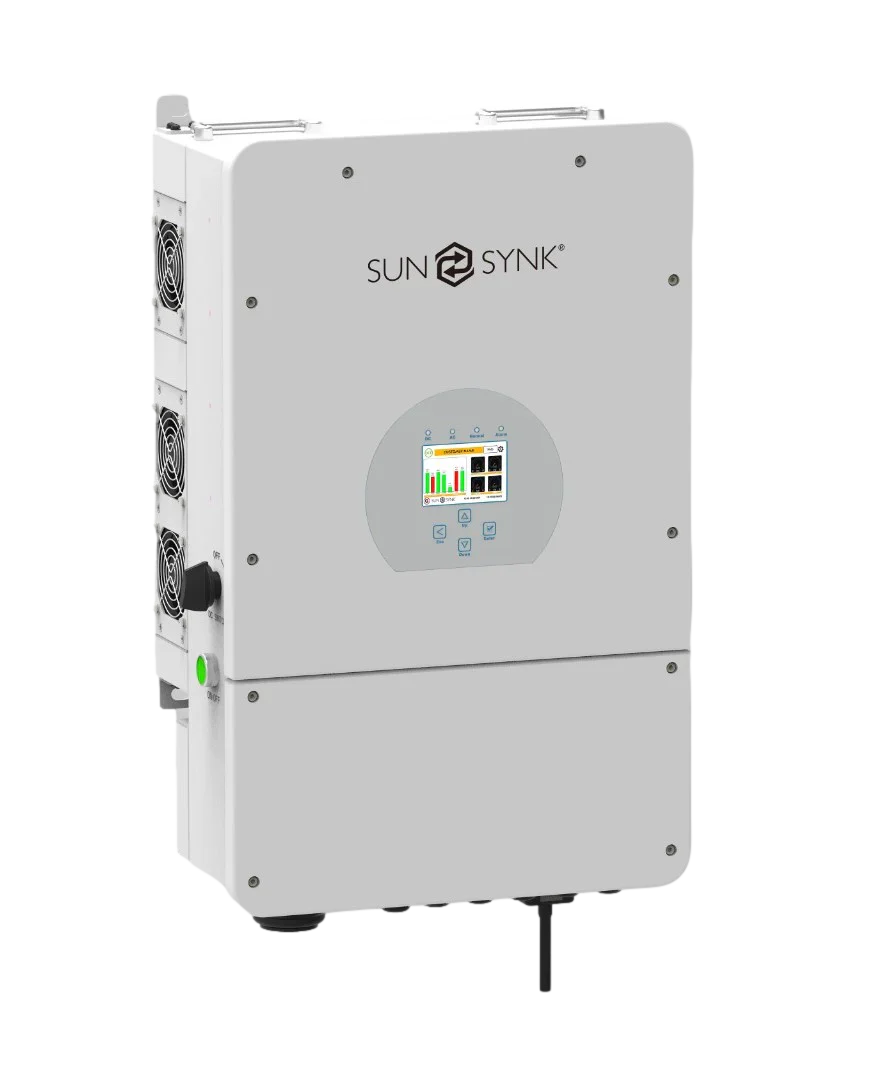

Sunsynk MAX 16kW Hybrid Inverter

With a remarkable maximum output power of 16kW and a battery charge current of 300A, the Sunsynk MAX hybrid inverter is a cutting-edge power management tool that enables users to effectively control power flow from multiple sources such as solar, mains power (grid), and generators.

This hybrid inverter is ideal for large domestic single-phase solar installations, delivering an exceptional amount of power from a low-voltage inverter, helping users to efficiently achieve their energy parity targets.

Users can programme multiple operation modes to manage their system efficiently, and remotely monitor performance via Wi-Fi. The Sunsynk MAX is also designed for outdoor installation, boasting an IP65 protection rating, and is supplied with a five-year warranty for added peace of mind.

Key Features:

• User-Friendly Display: Intuitive visual power flow screen makes it easy to monitor and manage energy use.
• Wi-Fi Monitoring: Supports remote monitoring via Wi-Fi, with two strings for each MPP tracker.
• Optimised Battery Charging: Smart-settable three-stage MPPT charging enhances battery performance and longevity.
• Versatile Operation Modes: Programmable for multiple operation modes including on-grid, off-grid, and UPS.
• Battery Compatibility: Works seamlessly with both lithium-ion and lead-acid batteries.
• Power Limiting Function: Prevents excess power overflow to the grid, ensuring efficient energy use.
• Comprehensive Protection: Built-in safeguards against overload, over-temperature, and short-circuits.
• Outdoor Ready: Rated IP65 for ingress protection, suitable for outdoor installations.
• Compact and Sturdy: Dimensions of 464mm (W) √ó 763mm (H) √ó 282mm (D) with a weight of 60kg.
• Peace of Mind: Comes with a five-year warranty.

For more detailed information, download the Sunsynk MAX Datasheet.
