Sunsynk Lifelynk X 3.6kW Single-Phase Hybrid Inverter | SUN-LIFE3.6X-HYB

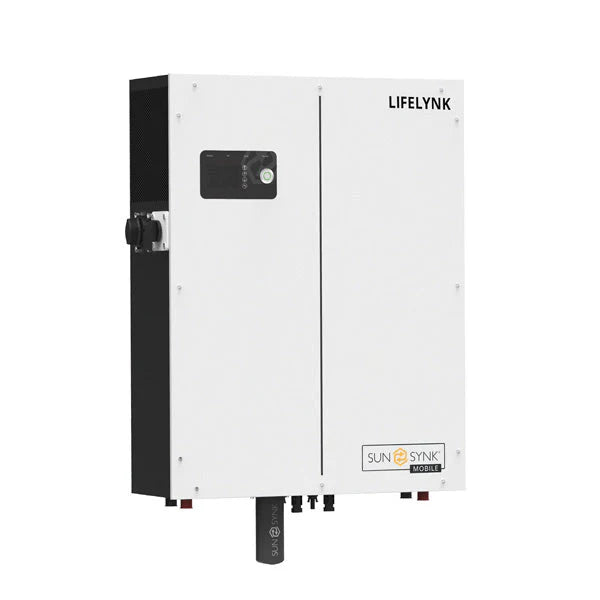

Sunsynk Lifelynk X 3.6kW Hybrid Inverter

The Sunsynk Lifelynk X 3.6kW hybrid inverter is expertly designed to simplify and accelerate installation processes. This all-in-one, plug-and-play, expandable inverter is perfect for making large-scale fit-outs straightforward and efficient. With the dedicated Sunsynk Connect platform, you have full control and access to the system, allowing for easy site-specific customisation.

Supplied with everything required for a quick installation, this hybrid inverter features built-in connection points for load, grid, CT, and Wi-Fi data logger ports, making it a true plug-and-play system.

This product is ideal for retrofitting into an existing solar PV setup, provided it matches the power rating of the current solar array. The built-in battery is expandable, allowing you to increase capacity if needed. The Sunsynk Lifelynk X also has the capability to power an emergency system during a power cut and is well-suited for installation alongside an EV charger.

Key Features:

• Quick Installation: Designed for rapid setup, making it ideal for smaller properties, social housing, and local government projects.
• All-in-One Unit: 3.6kW hybrid inverter, 3.84kWh LiFePO4 battery, and 4.5kW MPPT integrated into one compact unit.
• User-Friendly Display: Easy-to-read LCD display for simple system monitoring.
• Remote Monitoring: Supports Wi-Fi or GSM monitoring for remote access and control.
• Optimised Battery Performance: Inbuilt MPPT trackers and smart-settable three-stage MPPT charging maximise battery efficiency.
• Comprehensive Connectivity: Comes with built-in connection ports and preset factory settings for seamless integration.
• Programmable Controller: Fully programmable for supply priority between battery and grid.
• Ingress Protection: Rated IP20 for protection against dust and small objects.
• Compact and Lightweight: Dimensions of 701mm (H) x 534mm (L) x 182mm (W) and a weight of 51.7kg.

For more detailed information, download the Sunsynk Mobile Datasheet.
