Sungrow 40kW P2 Inverter

Product Description

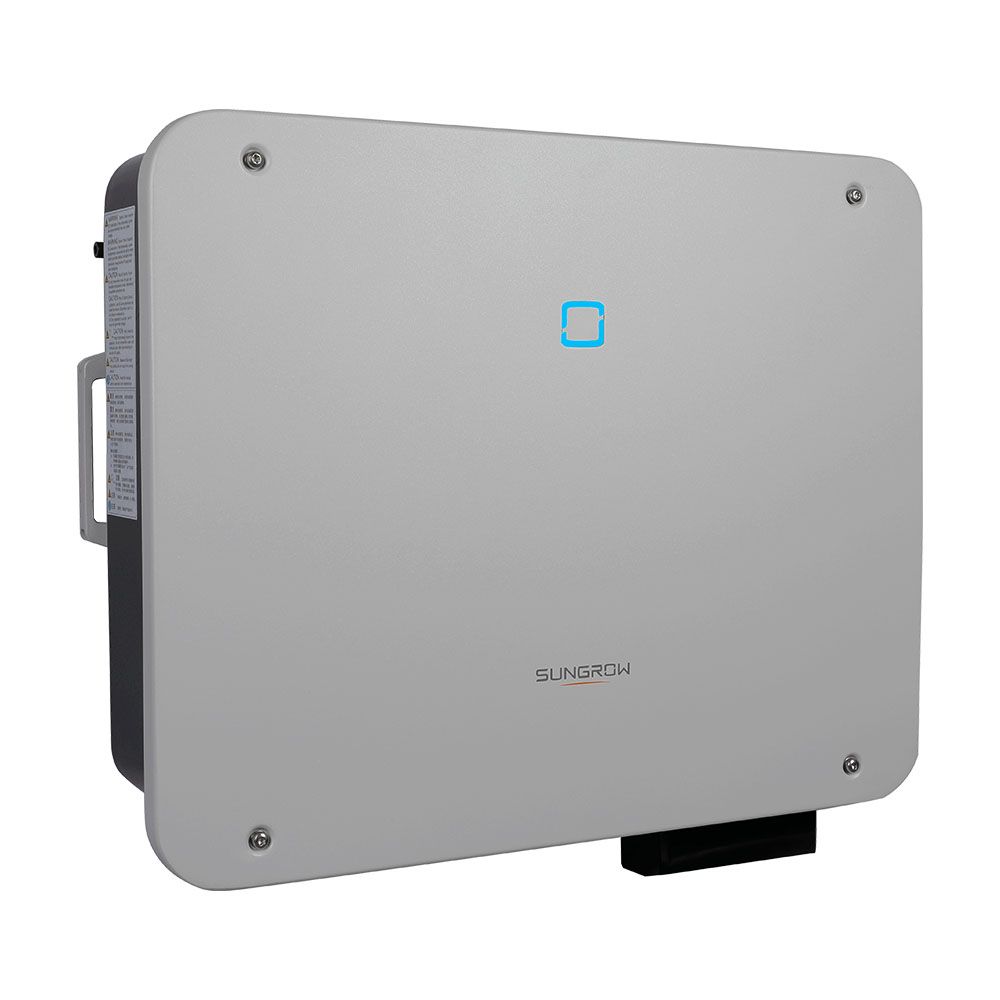

The Sungrow 40kW P2 Inverter (SG40CX-P2 V12) is a powerful and efficient three-phase string inverter designed for commercial solar applications. This inverter offers compatibility with high-power PV modules and incorporates advanced safety features such as AFCI 2.0 technology, ensuring secure and reliable operation. The inverter’s design allows for easy installation by a single person, and its high-quality, durable fans maintain optimal operating temperatures under all conditions, enhancing performance and longevity.

Key Features:

• Dynamic Shading Optimisation Mode: Enhances energy yield by effectively managing partial shading conditions.
• Built-in PID Recovery Function: Restores performance affected by potential-induced degradation.
• Key Component Diagnosis and Protection: Ensures reliable operation and extended service life.
• Plug and Play with Buckle Design: Simplifies the installation process with a user-friendly setup.
• Compatibility with 500Wp+ PV Modules: Supports high-power solar panels for increased energy production.
• DC Type I+II SPD, AC Type II SPD: Provides advanced surge protection for both DC and AC sides.
• IP66 Protection and C5 Anti-corrosion: Ensures durability in harsh environmental conditions.
• Support for AFCI 2.0 Function: Offers enhanced safety with arc-fault circuit interrupter technology.
• Maximum Efficiency of 98.5%: Achieves top-tier energy conversion rates for optimal performance.
• Smart IV Curve Diagnosis: Facilitates remote monitoring and diagnosis, simplifying maintenance.
• G99 Certified: Compliant with UK grid connection standards.
• 5-Year Warranty: Provides assurance of long-term reliability.

Technical Specifications:

• Brand: Sungrow
• Rated Power: 40,000W
• Maximum DC Power: 56,000W
• Inverter Phase: Three-phase
• Total Number of Strings: 8
• Number of MPP Trackers: 4
• MPPT Voltage Range / Rated Input Voltage: 160 - 1000V
• Start-up Input Voltage: 200V
• Maximum Input Voltage: 1100V
• Maximum Input Current per MPPT: 30A
• European Efficiency: 98.3%
• Integrated DC Switch: Yes
• Inverter IP Rating: IP66
• Dimensions (WxHxD): 645 x 575 x 245 mm
• Weight: 40kg
• Grid Connection Standards: G99
• Warranty Period: 5 Years

The Sungrow SG40CX-P2 V12 inverter is an ideal choice for commercial solar projects, offering exceptional efficiency, advanced safety features, and ease of installation, making it a top option for businesses seeking to maximise their solar energy potential.

Datasheet:
Download datasheet here.
