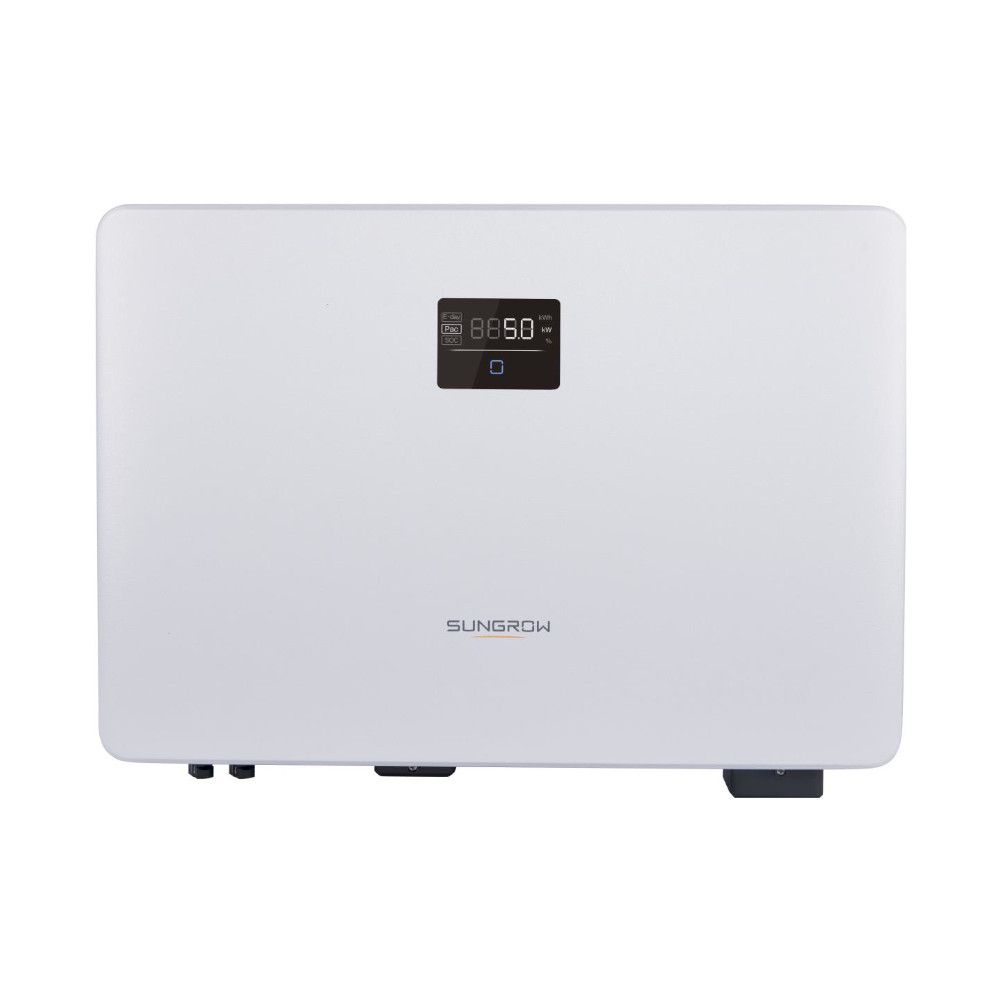

Sungrow 3.6kW Single Phase Hybrid Inverter - Dual Tracker

Product Description

The Sungrow 3.6kW Single Phase Hybrid Inverter with Dual MPP Trackers is a versatile and efficient solution for residential solar energy systems. Ideal for both retrofitting and new installations, this hybrid inverter is designed to seamlessly manage energy from solar panels and batteries. The Sungrow SHRS series, ranging from 3.0kW to 6.0kW, is perfect for homes seeking to optimise their energy usage and gain greater independence from the grid.

The inverter features a lightweight and compact design, optimised for heat dissipation, and is easy to install with its plug-and-play setup. The user-friendly display and advanced customisation options make it an excellent choice for residential installations.

With dual Maximum Power Point (MPP) trackers, this inverter ensures maximum energy harvest from your solar panels, even in partial shading conditions. It also includes a built-in Energy Management System (EMS) with advanced customisation, providing optimal energy management for your home. The integrated smart PID recovery function, natural cooling, and robust communication options—including WLAN, Ethernet, RS485, and CAN—make this inverter a reliable and intelligent choice for a wide range of solar installations.

Key Features:

• Dual MPP Trackers: Maximises energy production by tracking two independent strings of solar panels.
• Maximum Input Current: 32A, supporting a wide range of input voltages.
• Battery Voltage Range: 80V - 460V, compatible with various battery systems.
• European Efficiency: 97.1%, ensuring high energy conversion rates.
• Built-in EMS: Advanced Energy Management System for optimal energy use.
• IP65 Protection: Dust and water resistance, suitable for outdoor installations.
• Smart PID Recovery Function: Integrated function to recover potential-induced degradation.
• Natural Cooling: Passive cooling system for silent operation and reduced maintenance.
• Comprehensive Communication: Supports WLAN, Ethernet, RS485, and CAN for versatile connectivity.
• Lightweight Design: Weighing 18.5kg, it's easy to handle and install.
• 10-Year Warranty: Long-term peace of mind with a decade of coverage.
• Certified: G98 and G99 certified for compliance with grid connection standards.

Technical Specifications:

• Brand: Sungrow
• Rated Power: 3,600W
• Maximum DC Power: 5,400W
• Inverter Phase: Single-phase
• Total Number of Strings: 2
• Number of MPP Trackers: 2
• MPPT Voltage Range / Rated Input Voltage: 40 - 560V
• Start-up Input Voltage: 50V
• Maximum Input Voltage: 600V
• Maximum Input Current per MPPT: 16A
• European Efficiency: 97.1%
• Integrated DC Switch: Yes
• Inverter IP Rating: IP65
• Dimensions (WxHxD): 490 x 340 x 170 mm
• Weight: 18.5kg
• Grid Connection Standards: G98, G100-2, G99
• Warranty Period: 10 Years

This hybrid inverter is the perfect solution for homes looking to optimise their solar energy use, offering reliable performance, easy installation, and advanced features.

Datasheet:
Download datasheet here.
