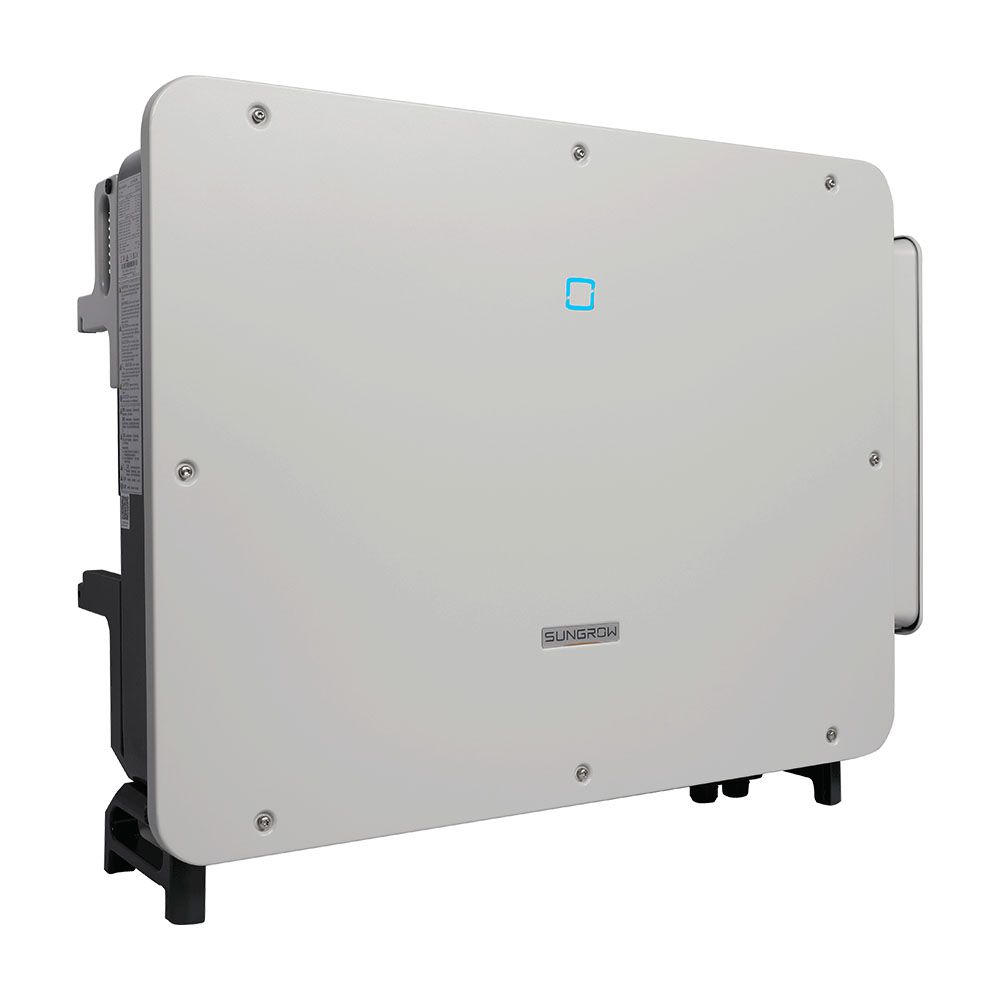

Sungrow 125kW P2 Inverter

Product Description

The Sungrow 125kW P2 Inverter (SG125CX-P2) is a high-performance string inverter designed for large-scale commercial solar power systems. With its advanced features and flexible design capabilities, this inverter is ideal for maximising energy production and ensuring reliable operation in commercial installations. The inclusion of 12 MPPTs (Maximum Power Point Trackers) allows for optimal solar power plant design, accommodating complex layouts and varying module orientations. The inverter is compatible with high-power PV modules and offers enhanced safety through AFCI 2.0 technology. Its durable, high-quality fans ensure optimal operating temperatures, contributing to the inverter's longevity and consistent performance.

Key Features:

• Dynamic Shading Optimisation Mode: Improves energy yield by effectively managing partial shading conditions.
• 12 MPPTs with Maximum Efficiency of 98.5%: Allows for flexible design and maximised energy production.
• Grid Fault Record Function: Facilitates remote operation and maintenance by recording grid faults.
• Key Component Diagnosis and Protection: Ensures reliable operation and extended service life.
• Compatibility with 240mm² Al AC Cables: Supports large cable sizes for high-capacity installations.
• Compatibility with 500Wp+ PV Modules: Supports high-power solar panels for greater energy output.
• Drawer-style Cable Sealing Plate: Simplifies installation with support for AC cable pre-assembly.
• DC Type I+II SPD, AC Type II SPD: Provides advanced surge protection for both DC and AC sides.
• IP66 Protection and C5 Anti-corrosion: Ensures durability and protection against harsh environmental conditions.
• Support for AFCI 2.0 Function: Offers enhanced safety with arc-fault circuit interrupter technology.
• Maximum Efficiency of 98.5%: Ensures top-tier energy conversion rates for optimal performance.
• Smart IV Curve Diagnosis: Facilitates remote monitoring and diagnosis, simplifying maintenance.
• G99 Certified: Compliant with UK grid connection standards.
• 5-Year Warranty: Provides assurance of long-term reliability.

Technical Specifications:

• Brand: Sungrow
• Rated Power: 125,000W
• Maximum DC Power: 175,000W
• Inverter Phase: Three-phase
• Total Number of Strings: 24
• Number of MPP Trackers: 12
• MPPT Voltage Range / Rated Input Voltage: 180 - 1000V
• Start-up Input Voltage: 200V
• Maximum Input Voltage: 1100V
• Maximum Input Current per MPPT: 30A
• European Efficiency: 98.3%
• Integrated DC Switch: Yes
• Inverter IP Rating: IP66
• Dimensions (WxHxD): 1020 x 795 x 360 mm
• Weight: 87kg
• Grid Connection Standards: G99
• Warranty Period: 5 Years

The Sungrow SG125CX-P2 inverter is an excellent choice for commercial solar projects, offering exceptional efficiency, advanced safety features, and ease of installation, making it a top option for businesses looking to optimise their solar energy systems.

Datasheet:
Download datasheet here.
