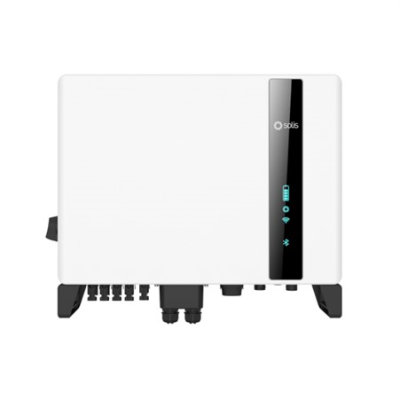

Solis S6 6kW 3 Phase Hybrid Inverter with DC - 3 MPPT for HV Batteries (WIFI/LAN)
Solis S6 6kW 3 Phase Hybrid Inverter with DC - 3 MPPT for HV Batteries (WIFI/LAN)
Couldn't load pickup availability
SKU:S6-EH3P6K-H-EU
Solis S6 6kW 3 Phase Hybrid Inverter with DC - 3 MPPT for HV Batteries (WiFi/LAN)
The Solis S6 6kW 3 Phase Hybrid Inverter is a powerful and versatile solution designed for residential and small commercial PV energy storage systems. With its 3 MPPTs (Maximum Power Point Trackers), the inverter offers exceptional flexibility in module design, supporting multiple string orientations and layouts. Its high input current capacity of 16A per string makes it compatible with modern high-power solar modules, ensuring optimal energy generation.
This hybrid inverter features an integrated switching device for backup power, supplying critical loads during grid failures with seamless switchover. The Solis S6 supports parallel operation of up to 10 hybrid inverters via RS485 communication, enabling scalable energy storage solutions. The built-in AFCI (Arc-Fault Circuit Interrupter) function enhances system safety by proactively reducing fire risks.
The inverter also includes WiFi and LAN communication options for remote monitoring and system management via SolisCloud, providing users with real-time performance insights and control.
Key Features:
- 6kW three-phase hybrid inverter with 3 MPPTs for flexible system configuration
- Integrated switching device for backup power during grid outages
- High input current of 16A per string, compatible with high-power solar modules
- Supports parallel connection of up to 10 hybrid inverters via RS485 communication
- Built-in AFCI (Arc-Fault Circuit Interrupter) for enhanced fire protection
- WiFi and LAN connectivity for remote monitoring and control
- Designed for use with high-voltage (HV) batteries
- IP66-rated enclosure for outdoor and indoor installations
Technical Specifications:
Manufacturer | Solis |
---|---|
SKU | S6-EH3P6K-H-EU |
Phases | 3 Phase |
Power Rating (kW) | 6 kW |
Inverter Type | Hybrid Inverter |
No. of MPPT | 3 |
Maximum Input Current | 16A |
Parallel Connection | Up to 10 hybrid inverters via RS485 |
Communication Options | RS485, WiFi, LAN |
Protection Category | IP66 |
Commodity Code | 85044085 |
Dimensions (H x W x D) (mm) | 496 x 596 x 230 mm |
Download the datasheet for Solis S6 6kW 3 Phase Hybrid Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
