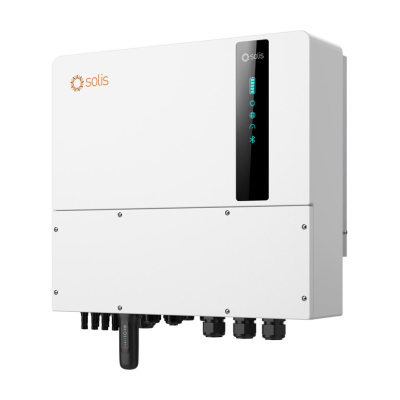

Solis S6 20kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)

Solis S6 20kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)

Regular price £2,003.99
Regular price Sale price £2,003.99
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:S6-EH3P20K-H-EU

Solis S6 20kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WiFi/LAN)

The Solis S6 20kW 3 Phase Hybrid Inverter is a high-performance energy storage solution designed for large residential and small commercial PV systems. With its 4 MPPT (Maximum Power Point Trackers), this inverter supports complex rooftop configurations and varying orientations, ensuring optimal energy harvesting. This series supports generator input and parallel operation of up to 6 hybrid inverters, making it ideal for scalable and flexible system designs.

The Solis S6 20kW inverter is equipped with UPS-level switching for seamless backup power, offering 200% surge power for 10 seconds, ensuring stable power delivery during sudden surges. It supports unbalanced and half-wave loads across both the grid and backup ports, making it a reliable choice for sensitive and diverse electrical loads.

With a maximum string current of 20A, this inverter is compatible with modern high-current solar modules. Its intelligent AC coupling scheme allows for easy upgrades of existing grid-connected systems to hybrid energy storage setups. Additionally, the system offers 6 customisable charge/discharge time settings, providing full control over energy management, peak shaving, and load shifting.

Key Features:

  • 20kW three-phase hybrid inverter with 4 MPPTs for flexible system configuration
  • Supports up to 6 inverters in parallel for scalable installations
  • Automatic UPS switching for seamless backup
  • 200% surge power backup for 10 seconds
  • Maximum string current of 20A for compatibility with high-current modules
  • Supports unbalanced and half-wave loads for both grid and backup ports
  • Integrated peak shaving control in self-use and generator modes
  • 6 customisable charge/discharge time settings
  • Supports intelligent AC coupling for easy upgrades of existing grid-connected systems
  • IP66-rated enclosure for indoor and outdoor installations

Technical Specifications:

Application Commercial
Manufacturer Solis
Phases 3 Phase
Power Rating (kW) 20 kW
Inverter Type Hybrid Inverter
No. of MPPT 4
Maximum String Current 20A
Maximum Charge/Discharge Current 50A
Surge Power 200% for 10 seconds
Customisable Settings 6 charge/discharge time settings
Communication Options WiFi/LAN, RS485
Protection Category IP66
Commodity Code 85044086
Dimensions (H x W x D) (mm) 563 x 546 x 235 mm

Download the datasheet for Solis S6 20kW 3 Phase Hybrid Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
