Solis S6 15kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)
Solis S6 15kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)
Couldn't load pickup availability
SKU:S6-EH3P15K-H-EU

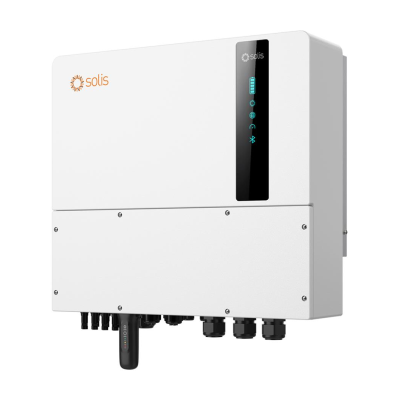

Solis S6 15kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WiFi/LAN)
The Solis S6 15kW 3 Phase Hybrid Inverter is a high-performance energy storage solution, designed to meet the demands of large residential and commercial PV systems. Equipped with 4 MPPTs (Maximum Power Point Trackers), it provides optimal conditions for rooftops with varying orientations, ensuring maximum energy capture. This hybrid inverter is compatible with high-power solar modules thanks to its exceptional input current capacity of 16A, making it an ideal choice for modern, high-efficiency PV installations.
In the event of a power failure, the integrated UPS function ensures that critical loads continue to receive power with a fast switchover, offering seamless backup performance. With a maximum efficiency of 98% and an EU efficiency rating of 97.5%, the Solis S6 Hybrid Inverter is designed for exceptional energy conversion, enhancing the overall performance and reliability of your PV system.
Built for high-voltage (HV) lithium-ion batteries, this inverter supports a wide MPPT voltage range of 200V to 850V and has a peak DC power capacity of 16kW. It features an IP66-rated enclosure for dust and water protection, making it suitable for both indoor and outdoor installations. The Solis S6 Hybrid Inverter also supports WiFi/LAN communication for remote monitoring and control via SolisCloud, providing a user-friendly experience for system management and maintenance.
Key Features:
- 15kW three-phase hybrid inverter with 4 MPPTs for optimal energy harvesting
- High input current of 16A per string for compatibility with high-performance solar modules
- Wide MPPT voltage range (200V - 850V) for flexible system design
- Maximum DC power capacity of 16kW
- Integrated UPS function for seamless backup with fast switchover
- Maximum inverter efficiency: 98%
- EU efficiency rating: 97.5%
- IP66-rated enclosure for durability in outdoor environments
- Supports high-voltage lithium-ion batteries
- WiFi/LAN communication for real-time remote monitoring and control
- 5-year manufacturer’s warranty for peace of mind
Technical Specifications:
Manufacturer | Solis |
---|---|
Inverter Type | Hybrid Inverter |
No. of MPPT | 4 |
Maximum Efficiency | 98% |
EU Efficiency | 97.5% |
MPPT Voltage Range (VDC) | 200V - 850V |
Maximum Input Current | 16A |
Maximum Input Voltage (VDC) | 1000V |
Maximum DC Power | 16kW |
Nominal Voltage | 600V |
Battery Technology | Lithium-ion |
Protection Class | IP66 |
Rated Capacity | 10kW |
Commodity Code | 85044086 |
Dimensions (H x W x D) (mm) | 563 x 546 x 235 mm |
Warranty | 5 years |
Download the datasheet for Solis S6 15kW 3 Phase Hybrid Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
