Solis
Solis S6 12kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)
Solis S6 12kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)
Couldn't load pickup availability
SKU:S6-EH3P12K-H-EU

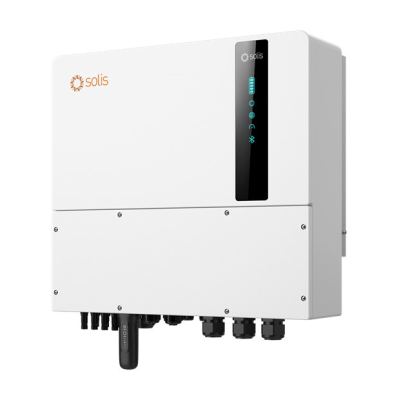

Solis S6 12kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WiFi/LAN)
The Solis S6 12kW 3 Phase Hybrid Inverter is an advanced energy storage solution designed for large residential and small commercial PV systems. This powerful hybrid inverter supports generator input and parallel operation of multiple inverters, making it highly versatile for larger systems. The 4 MPPT (Maximum Power Point Tracking) design is ideal for complex rooftop configurations and varying orientations, ensuring optimal energy capture and distribution.
The Solis S6 12kW Hybrid Inverter offers exceptional backup capabilities, including UPS-level switching with a switching time of less than 40ms and a 200% surge backup capacity for 10 seconds. With a continuous AC backup power output of 10kW and peak power of 16kVA, it ensures reliable power delivery during outages. This system is equipped with intelligent EMS (Energy Management System) functionality, supporting three-phase unbalanced loads and flexible programmable energy management modes for self-consumption, time-of-use, and off-grid backup.
Remote monitoring and upgrades via SolisCloud make maintenance simple and efficient. Safety features such as integrated AFCI (Arc-Fault Circuit Interrupter) protection proactively reduce fire risks, ensuring system safety and longevity.
Key Features:
- 12kW three-phase hybrid inverter with 4 MPPTs for flexible system design
- Supports up to 10kW continuous AC backup power and 16kVA peak surge power
- 200% surge capacity for 10 seconds for high-demand loads
- Switching time of less than 40ms for seamless UPS-level backup
- Supports generator input and parallel operation of multiple inverters
- High DC input current of 26A per string for compatibility with high-power modules
- Advanced intelligent EMS for real-time energy management and load balancing
- AFCI protection to reduce fire risks
- Remote control and firmware upgrades via SolisCloud
- Supports time-of-use shifting, peak shaving, and off-grid backup modes
- IP66-rated for outdoor use
- 24-hour intelligent monitoring and management
Technical Specifications:
Application | Commercial |
---|---|
Manufacturer | Solis |
Phases | 3 Phase |
Power Rating (kW) | 12 kW |
Inverter Type | Hybrid Inverter |
No. of MPPT | 4 |
Maximum Efficiency | 98.4% |
Maximum DC Input Current | 26A |
Backup Power | 10kW continuous, 16kVA peak |
Switching Time | Less than 40ms |
Surge Capacity | 200% for 10 seconds |
Operating Modes | Self-consumption, time-of-use, off-grid backup |
Communication Options | CAN, RS485, WiFi/LAN |
Commodity Code | 85044086 |
Dimensions (H x W x D) (mm) | 563 x 546 x 235 mm |
Protection Category | IP66 |
Download the datasheet for Solis S6 12kW 3 Phase Hybrid Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
