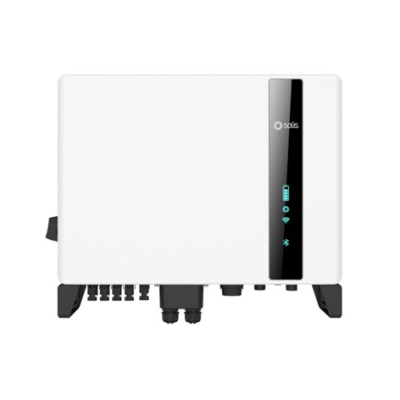

Solis S6 10kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)
Solis S6 10kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)
Couldn't load pickup availability
SKU:S6-EH3P10K-H-EU
Solis S6 10kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WiFi/LAN)
The Solis S6 10kW 3 Phase Hybrid Inverter is a powerful and flexible solution designed for commercial photovoltaic (PV) systems. With its four independent MPPTs (Maximum Power Point Trackers), this hybrid inverter offers exceptional flexibility for module design, making it compatible with modern, high-power solar modules. The integrated switching device for backup power ensures uninterrupted power supply to selected loads in the event of a grid failure, providing peace of mind and energy security.
This inverter supports parallel connection of up to 10 hybrid inverters via RS485 communication, allowing for scalable system designs. The high input current of 16A per string and a short-circuit current of up to 24A per MPPT make it suitable for high-performance PV arrays. The Solis S6 hybrid inverter also features integrated AFCI (Arc-Fault Circuit Interrupter) protection, enhancing system safety by reducing fire risks.
The Solis S6 comes with built-in WiFi and LAN communication for seamless system monitoring and control through SolisCloud. Additionally, a 3-phase smart meter with current transformers is included for precise energy measurement, along with a 1m battery cable with MC4 connectors for easy integration with high-voltage (HV) batteries.
Key Features:
- 10kW three-phase hybrid inverter with 10.0 kVA emergency power output
- Integrated switching device for backup power in case of grid failure
- 4 MPPTs for flexible module configuration
- High input current of 16A per string and short-circuit current of 24A per MPPT
- Parallel connection of up to 10 hybrid inverters via RS485
- Integrated AFCI function for enhanced fire protection
- Supports CAN, RS485, and WiFi/LAN communication
- 1m battery cable with MC4 connectors included
- 3-phase smart meter with current transformers included
- IP66-rated protection for outdoor installations
- 5-year warranty for peace of mind
Technical Specifications:
Application | Commercial |
---|---|
Manufacturer | Solis |
Phases | 3 Phase |
Power Rating (kW) | 10 kW |
Inverter Type | Hybrid Inverter |
No. of MPPT | 4 |
Maximum Input Current per String | 16A |
Maximum Short-Circuit Current per MPPT | 24A |
Communication Options | CAN, RS485, WiFi/LAN |
Commodity Code | 85044086 |
Dimensions (H x W x D) (mm) | 496 x 596 x 230 mm |
Protection Category | IP66 |
Warranty | 5 Years |
Download the datasheet for Solis S6 10kW 3 Phase Hybrid Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
