Solis 5G 40kW Solar Inverter - 3 Phase with DC
Solis 5G 40kW Solar Inverter - 3 Phase with DC
Couldn't load pickup availability
SKU:S5-GC40K-DC

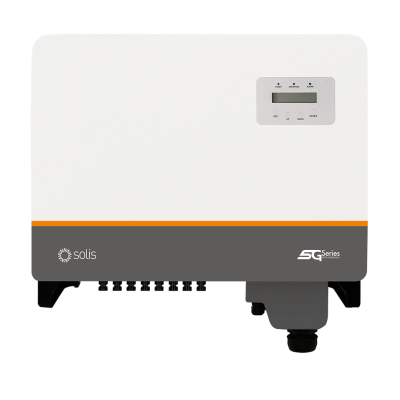

Solis 5G 40kW Solar Inverter
The Solis 5G 40kW Solar Inverter is an advanced solution tailored for commercial PV systems. Its innovative 3/4 MPPT design allows for flexible configuration options, supporting multiple orientation systems while reducing environmental impact and increasing energy generation efficiency. With its robust features and durable design, this inverter is a reliable choice for high-performance solar installations.
With a maximum efficiency of 98.7%, this inverter supports string currents up to 16A and enables 150%+ DC oversizing, making it compatible with high-power modules and reducing installation costs. Its fan-less natural convection design ensures quiet operation and a longer lifespan. The inverter also includes advanced safety features such as AFCI protection to proactively reduce fire risks, and intelligent string monitoring with Smart I-V curve scanning for effective system diagnostics.
Integration with SolisCloud enables seamless remote monitoring, upgrades, and control. Connectivity options include RS485, WiFi, and GPRS, simplifying installation by reducing wiring complexity. The IP66-rated enclosure guarantees reliability in harsh environments, and the optional night-time PID recovery function boosts overall system yield.
Key Features
- Max. efficiency: 98.7%
- String current up to 16A
- 3/4 MPPT design for flexible system orientation
- Fan-less natural convection design for longer lifespan
- Wide voltage range and low startup voltage
- AFCI protection to proactively reduce fire risks
- Supports export power control
- Intelligent string monitoring and Smart I-V curve scanning
- Night-time PID recovery function (optional) to enhance system yield
- Supports RS485, WiFi, and GPRS communication
- Supports aluminium wire access to reduce costs
- Globally recognised branded components for enhanced durability
- IP66 protection level
Technical Specifications
| Feature | Specification |
|---|---|
| Application | Commercial |
| Manufacturer | Solis |
| Phases | 3 Phase |
| Power Rating | 40 kW |
| Inverter Type | String Inverter |
| Built-in DC | Yes |
| No. of MPPT | 3 |
| Built-in Communication | Optional |
| Commodity Code | 85044086 |
| Dimensions (H x W x D) | 629 x 647 x 252 mm |
Download the datasheet for the Solis 5G 40kW Solar Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
