Solis 5G 36kW Solar Inverter - 3 Phase with DC
Solis 5G 36kW Solar Inverter - 3 Phase with DC
Couldn't load pickup availability
SKU:S5-GC36K-DC

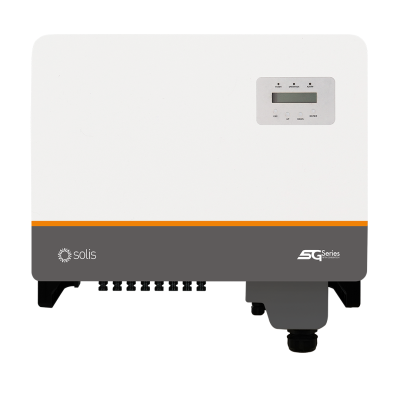

Solis 5G 36kW Solar Inverter
The Solis 5G 36kW Solar Inverter offers advanced technology and flexibility, making it a powerful solution for commercial PV systems. Its innovative 3/4 MPPT design supports multiple orientation configurations, reducing environmental impact and increasing generation efficiency for diverse installation scenarios.
Delivering a maximum efficiency of 98.7%, this inverter supports string currents up to 16A and allows for 150%+ DC oversizing. Its wide voltage range and low startup voltage enhance adaptability, while the natural convection fan-less design ensures a longer lifespan with minimal maintenance. The inverter also features AFCI protection to proactively reduce fire risks, and intelligent string monitoring with Smart I-V curve scanning for efficient system diagnostics.
Integration with SolisCloud allows for seamless remote monitoring, upgrades, and control. Support for RS485, WiFi, and GPRS communication reduces wiring complexity and installation costs. Its IP66-rated enclosure ensures reliable operation even in harsh environmental conditions. The optional night-time PID recovery function boosts overall system yield, making this inverter a versatile and efficient choice for commercial applications.
Key Features
- Max. efficiency: 98.7%
- String current up to 16A
- 3/4 MPPT design for flexible system orientation
- Fan-less natural convection design for longer lifespan
- Wide voltage range and low startup voltage
- AFCI protection to proactively reduce fire risks
- Supports export power control
- Intelligent string monitoring and Smart I-V curve scanning
- Night-time PID recovery function (optional) to improve system yield
- Supports RS485, WiFi, and GPRS communication
- Supports aluminium wire access to reduce costs
- Globally recognised branded components for enhanced durability
- IP66 protection level
Technical Specifications
| Feature | Specification |
|---|---|
| Application | Commercial |
| Manufacturer | Solis |
| Phases | 3 Phase |
| Power Rating | 36 kW |
| Inverter Type | String Inverter |
| Built-in DC | Yes |
| No. of MPPT | 3 |
| Built-in Communication | Optional |
| Commodity Code | 85044086 |
| Dimensions (H x W x D) | 629 x 647 x 252 mm |
Download the datasheet for the Solis 5G 36kW Solar Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
