Solis 5G 25kW Solar Inverter - 3 Phase with DC
Solis 5G 25kW Solar Inverter - 3 Phase with DC
Couldn't load pickup availability
SKU:S5-GC25K-DC

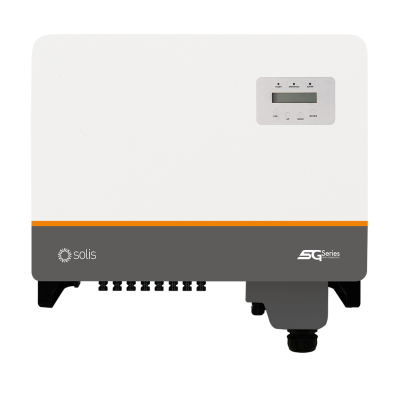

Solis 5G 25kW Solar Inverter
The Solis 5G 25kW Solar Inverter is an advanced and flexible solution for commercial PV power stations. Featuring a 3/4 MPPT design, this inverter allows for a versatile configuration scheme, minimising environmental impact while enhancing energy generation efficiency. Its robust design and high-performance components make it a reliable choice for modern solar installations.
Delivering a maximum efficiency of 98.7%, the inverter supports string currents of up to 16A, ensuring compatibility with high-power modules and reducing installation costs. It features a wide voltage range and low startup voltage, enabling seamless adaptation to various system requirements. Safety is prioritised with AFCI protection, proactively reducing fire risks, and intelligent string monitoring with Smart I-V curve scanning for enhanced system diagnostics.
The inverter supports export power control and integrates seamlessly with RS485, WiFi, and GPRS for advanced connectivity. With SolisCloud compatibility, users can register, monitor, and upgrade the inverter remotely, streamlining system management. Its IP66-rated, fan-less natural convection design ensures a longer lifespan and reliable operation in challenging environments. Night-time PID recovery (optional) further boosts overall system yield.
Key Features
- Max. efficiency: 98.7%
- String current up to 16A
- 3/4 MPPT design for flexible system orientation
- Fan-less natural convection design for longer lifespan
- Wide voltage range and low startup voltage
- AFCI protection to proactively reduce fire risks
- Supports export power control
- Intelligent string monitoring and Smart I-V curve scanning
- Night-time PID recovery function (optional) to increase system yield
- Supports RS485, WiFi, and GPRS communication
- Supports aluminium wire access to reduce costs
- Globally recognised branded components for extended durability
- IP66 protection level
Technical Specifications
| Feature | Specification |
|---|---|
| Application | Commercial |
| Manufacturer | Solis |
| Phases | 3 Phase |
| Power Rating | 25 kW |
| Inverter Type | String Inverter |
| Built-in DC | Yes |
| No. of MPPT | 3 |
| Built-in Communication | Optional |
| Commodity Code | 85044086 |
| Dimensions (H x W x D) | 629 x 647 x 252 mm |
Download the datasheet for the Solis 5G 25kW Solar Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
