SolarEdge

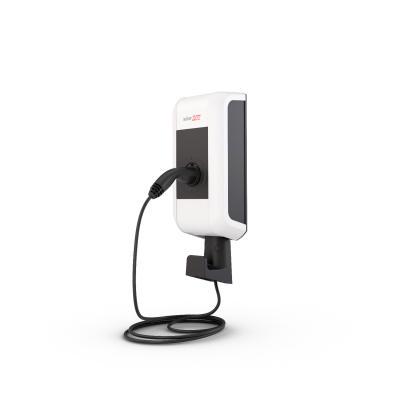

SolarEdge Smart EV Charger - 7.4kW, 1ph, 6m Cable Type 2, For installations in UK

SolarEdge Smart EV Charger - 7.4kW, 1ph, 6m Cable Type 2, For installations in UK

Regular price £1,172.99
Regular price Sale price £1,172.99
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:SE-EVK74C00-01

SolarEdge 7.4kW Smart EV Charger - Single Phase

The SolarEdge Smart EV Charger is a tethered single-phase charger that integrates seamlessly with the SolarEdge Home range. Designed for SolarEdge SetApp-enabled residential inverters up to 15kW (excluding the Single Phase Inverter with Compact Technology), it allows homeowners to optimise and control household energy directly from the mySolarEdge app.

Features:

  • Use excess solar power to charge your EV
  • Monitor and control PV and EV from a single app
  • Customise charging schedules for low-rate periods
  • G100 Issue 2 Amendment 2 compliant
  • Tamper protection and prevention of main circuit breaker tripping
  • Dynamic balancing of charging power output
  • Mode 3 charger combining PV and grid electricity
  • Tethered 6m Type 2 cable included
  • Smart scheduling with Time-of-Use (TOU) rates to charge during off-peak hours
  • Track PV, EV, and grid consumption
  • Warranty: 3 years

Installation Requirements:

  • Earth electrode must be installed
  • Residential systems only (maximum of three chargers per site)
  • Must include an inverter and meter in the system
  • Vertical installation on an appropriate wall surface
  • Cloud and inverter communication via Ethernet, LSA+, or Wi-Fi

Specifications:

Specification Details
Phases 1 Phase
EV Power Rating 7.4 kW
Dimensions (H x W x D) 260 x 764 x 385 mm

Download the datasheet for SolarEdge Smart EV Charger here.
