SolarEdge
SolarEdge S850 Power Optimizer
SolarEdge S850 Power Optimizer
Regular price
£55.99
Regular price
Sale price
£55.99
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:S850-1GM4MRY

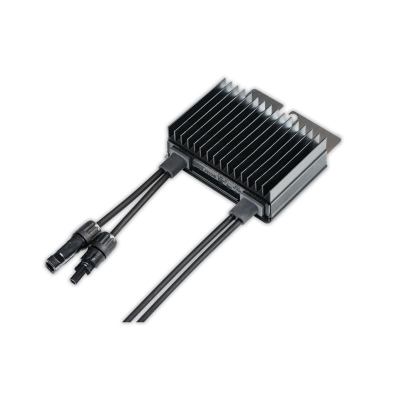

SolarEdge S850 Power Optimizer
The SolarEdge S850 Power Optimizer is specifically designed to work seamlessly with SolarEdge inverters, delivering up to 25% more energy and peak efficiency of 99.5%. This advanced optimizer prevents module mismatch or partial shading issues and offers flexible installation for maximum space utilisation.
Key Features:
- Quick installation with safe voltage reduction during installation or fire
- Supports nominal input power up to 850W and high short-circuit currents (up to 12.5A)
- Durable IP68-rated design, operational in temperatures from -40°C to +185°C
- Compliance with global standards for safety, EMC, and fire protection
Technical Specifications:
| Specification | Details |
|---|---|
| Nominal Input Power | 850 W |
| MPPT Voltage Range | 12.5 - 105 Vdc |
| Maximum Efficiency | 99.5% |
| Operating Temperature | -40°C to +185°C |
| Degree of Protection | IP68 |
| Dimensions (W x D x H) | 129 x 162 x 59 mm |
| Weight | 1064 g (including wires) |
| Compliance | EMC: IEC61000-6-2/3, Safety: IEC62019-1, Fire: VDE-AR-E 2100-712 |
Download the datasheet for SolarEdge S850 Power Optimizer here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
