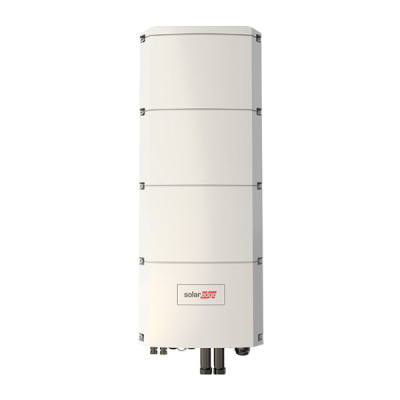

SolarEdge Home Hub Inverter 8kW - 3 Phase with Backup
SolarEdge Home Hub Inverter 8kW - 3 Phase with Backup
Couldn't load pickup availability
SKU:SE8K-RWB48BFN4
SolarEdge Home Hub 8kW Inverter – Three Phase with Optional Backup Capability
The SolarEdge Home Hub 8kW Inverter delivers advanced energy management and backup capabilities, designed for residential and commercial applications. This inverter integrates seamlessly with SolarEdge LV batteries and supports optional backup functionality via the SolarEdge Backup Interface. Whether installed at the time of setup or at a later date, this feature ensures continued energy supply during grid outages, preventing blackouts and power cuts to the home.
Unlike older StorEdge three-phase inverters, the SolarEdge Home Hub 8kW Inverter is purpose-built for backup compatibility. It combines sophisticated digital control technology with efficient power conversion architecture to maximise solar power harvesting and ensure superior reliability. Its fixed-voltage technology optimises performance regardless of the number of PV modules or changing environmental conditions.
An integrated data monitoring receiver aggregates power optimiser performance data from each PV module and transmits it to the SolarEdge Monitoring Portal. This allows for performance analysis, fault detection, and troubleshooting. For system design, SolarEdge also offers the online SolarEdge Designer tool.
Key Features:
- Backup Ready: Enables backup power during grid outages with the optional SolarEdge Backup Interface.
- Advanced Efficiency: DC-coupled solution eliminates AC conversion losses for superior energy storage efficiency.
- Enhanced Safety: High voltage elimination during installation, monitoring, and firefighting.
- Simple Installation: Quick inverter commissioning via SolarEdge SetApp.
- Comprehensive Monitoring: Module-level monitoring with visibility into battery status, PV performance, and self-consumption.
- Reliability: Industry-leading peak inverter efficiency of 98%.
Technical Specifications:
| Category | Specifications |
|---|---|
| AC Power Output | 8000VA |
| Max Current (per phase) | 13A |
| Number of Phases | 3 |
| Backup Output | |
| Max Power Output | 7200VA |
| Max Current (per phase) | 11.7A |
| Number of Phases | 3 |
| Auto Switchover Time | < 10s |
| PV Input | |
| Maximum DC Power | 13,000W |
| Max Input Voltage | 900V |
| Nominal DC Input | 750V |
| Max Input Current | 17.3A |
| Peak Inverter Efficiency | 98% |
| Battery Input/Output | |
| Max Charge/Discharge Power | 5000W |
| Input Voltage Range | 40-62V |
| Max Continuous Current | 125A |
| Communication | CAN |
| Physical & Environmental | |
| Protection Rating | IP65 |
| Weight | 37kg |
| Dimensions | 907 x 317 x 192 mm |
| Supported Communications | Wi-Fi & Cellular |
Download the datasheet for the SolarEdge Home Hub 5kW Three Phase Inverter here.
