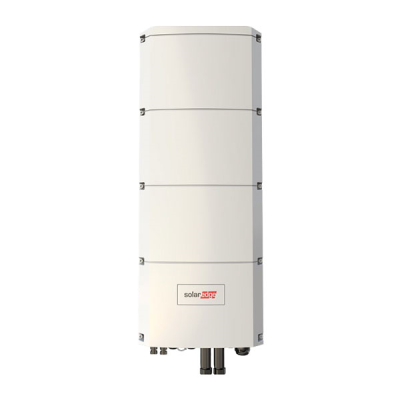

SolarEdge Home Hub Inverter 5kW - 3 Phase with Backup
SolarEdge Home Hub Inverter 5kW - 3 Phase with Backup
Couldn't load pickup availability
SKU:SE5K-RWB48BFN4
SolarEdge Home Hub 5kW Inverter – Three Phase with Optional Backup Capability
The SolarEdge Home Hub 5kW Inverter offers advanced energy management and backup capabilities, making it an ideal solution for residential and commercial applications. Designed to integrate seamlessly with SolarEdge LV batteries, this inverter provides the option for backup functionality with the addition of the SolarEdge Backup Interface. This ensures continued system operation during power outages, maintaining household energy even during blackouts.
This model improves upon older StorEdge versions, which lack the capability to adapt for backup functionality. The SolarEdge Home Hub inverter combines cutting-edge digital control technology with efficient power conversion architecture, achieving exceptional solar power harvesting and industry-leading reliability. Its fixed-voltage technology ensures optimal performance regardless of the number of PV modules or environmental conditions.
An integrated data monitoring receiver aggregates power optimiser performance data from each PV module, enabling remote performance analysis, fault detection, and troubleshooting through the SolarEdge Monitoring Portal. Additionally, SolarEdge provides a system design tool, SolarEdge Designer, to streamline planning and installation.
Key Features:
- Simple Installation: Easy setup and commissioning using the SolarEdge SetApp.
- Enhanced Safety: High voltage elimination during installation, maintenance, and firefighting.
- Backup Ready: Manages PV production, battery storage, and power outage operations (requires additional hardware).
- Superior Efficiency: DC-coupled architecture eliminates AC conversion losses to the battery.
- Monitoring: Module-level monitoring with full visibility of battery status, PV performance, and self-consumption data.
- Reliable Performance: Industry-leading peak inverter efficiency of 98%.
Technical Specifications:
| Category | Specifications |
|---|---|
| AC Power Output | 5000VA |
| Max Current (per phase) | 8A |
| Number of Phases | 3 |
| Backup Output | |
| Max Power Output | 4500VA |
| Max Current (per phase) | 7.2A |
| Number of Phases | 3 |
| Auto Switchover Time | < 10s |
| PV Input | |
| Maximum DC Power | 10,000W |
| Max Input Voltage | 900V |
| Nominal DC Input | 750V |
| Max Input Current | 13.3A |
| Peak Inverter Efficiency | 98% |
| Battery Input/Output | |
| Max Charge/Discharge Power | 5000W |
| Input Voltage Range | 40-62V |
| Max Continuous Current | 125A |
| Communication | CAN |
| Physical & Environmental | |
| Protection Rating | IP65 |
| Weight | 37kg |
| Dimensions | 907 x 317 x 192 mm |
| Supported Comms | Wi-Fi & Cellular |
Download the datasheet for the SolarEdge Home Hub 5kW Three Phase Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
