SolarEdge

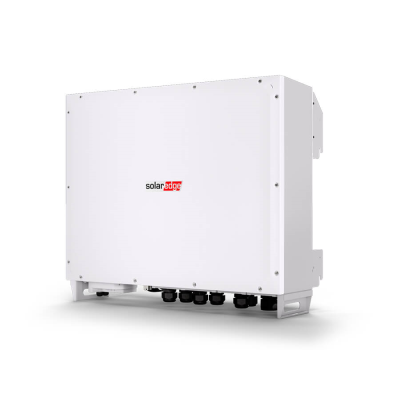

SolarEdge 50KW PCS050 Battery Inverter

SolarEdge 50KW PCS050 Battery Inverter

Regular price £4,141.99
Regular price Sale price £4,141.99
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:PCS050-RW-400V-A01-01

SolarEdge 50kW PCS050 Battery Inverter

The SolarEdge PCS050 is a high-performance bi-directional battery inverter, designed as part of an AC-coupled power conversion system (PCS). This advanced inverter enables seamless charging and discharging of the SolarEdge CSS-OD commercial energy storage system, supporting optimal energy utilisation and grid integration for commercial solar installations.

Key Features and Benefits

  • Bi-Directional Operation: Enables charging and discharging of the battery with up to 50kW power.
  • AC-Coupled Design: Allows for charging the battery from either excess PV energy or the grid.
  • Expandable Storage: Connect to one or two SolarEdge 102kWh CSS-OD battery systems, enabling a 2-hour or 4-hour battery configuration with up to 204kWh of storage capacity.
  • Direct Mounting: Designed to mount directly on the side of the CSS-OD battery cabinet for a compact and efficient setup.
  • High Efficiency: Achieves up to 97.5% efficiency for maximum energy utilisation.
  • Integrated Protection: Includes Type II DC surge protection, Type III AC surge protection, reverse polarity protection, grid monitoring, and earth leakage protection.
  • Robust Design: IP65-rated for outdoor and indoor installations, ensuring durability in all environments.
  • Long-Term Reliability: Backed by a 10-year system warranty for peace of mind.

Technical Specifications

Specification Details
Manufacturer SolarEdge Technologies
Power Rating 50kW
Battery Voltage 48V
Communication Ports RS-485 / CAN
Surge Protection Type II (DC) / Type III (AC)
Ingress Protection IP65
Dimensions (H x W x D) 325 x 650 x 715 mm
Warranty 10 Years

Applications

  • Commercial energy storage systems requiring bi-directional inverters for charging and discharging.
  • Large-scale solar installations with integrated energy storage solutions.
  • Systems needing flexible energy management, utilising both PV surplus and grid charging capabilities.

The SolarEdge 50kW PCS050 Battery Inverter is a versatile and efficient solution for commercial energy storage systems. Its high efficiency, robust design, and seamless integration with the CSS-OD battery cabinet make it an ideal choice for modern solar energy applications.

Download the datasheet for the SolarEdge 50kW PCS050 Battery Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
