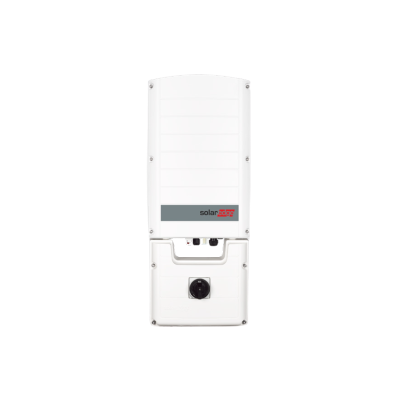

SolarEdge 30kW Solar Inverter-3 phase MC4, AC/DC Segregation
SolarEdge 30kW Solar Inverter-3 phase MC4, AC/DC Segregation
SKU:SE30K-RW00IBNJ4
SolarEdge 30kW 3 Phase Solar Inverter - MC4 with AC/DC Segregation
The SolarEdge 30kW 3 Phase Solar Inverter is a high-performance solution for commercial solar installations, offering advanced safety, communication, and efficiency features. Supporting a maximum input voltage of 1000V, this inverter is designed with an integrated safety unit that includes a DC switch, MC4 connectors, and Type 2 Surge Protection Devices (SPD) on both AC and DC sides for superior protection. Its IP65 rating ensures durability for both outdoor and indoor installations.
Key Features and Benefits
- Advanced Safety: Integrated leakage current detection and arc protection with automatic shutdown to ensure system safety.
- AC/DC Segregation: Physical separation of alternating current (AC) and direct current (DC) for enhanced safety and system organisation.
- Integrated Safety Unit: Two-pole switch located on the underside allows the entire circuit to be de-energised by interrupting both neutral and phase wires.
- Type 2 Surge Protection Devices: Safeguards against overvoltage from lightning strikes or power surges on both AC and DC sides.
- Comprehensive Connectivity: Built-in RS485 and Ethernet connections, with optional WiFi via an external antenna or mobile network connectivity through an add-on card.
- Panel-Level Monitoring: Full transparency of the PV system’s performance through the SolarEdge monitoring platform.
- SetApp Commissioning: Intuitive and efficient commissioning via the SetApp mobile application.
- Active Cooling: Fan cooling system operates efficiently with a noise level of 62 dBA.
- High Voltage Support: Maximum input voltage of 1000V for enhanced system flexibility.
Technical Specifications
Specification | Details |
---|---|
Manufacturer | SolarEdge Technologies |
Phases | 3 Phase |
Built-in DC | Yes |
Maximum Input Voltage | 1000V |
Connections | RS485, Ethernet, optional WiFi or mobile network |
Cooling | Active fan cooling |
Noise Level | 62 dBA |
IP Rating | IP65 |
Surge Protection | Type 2 (AC and DC) |
Dimensions (H x W x D) | 1020 x 400 x 400 mm |
Commodity Code | 85044086 |
Security and Protection
- Leakage Current Detection: Automatically shuts down the system to prevent potential danger.
- Arc Protection: Detects and mitigates harmful arcs to safeguard the system.
- Two-Pole Switch: De-energises the circuit for maintenance and safety.
The SolarEdge 30kW 3 Phase Solar Inverter with MC4 connectors and AC/DC segregation is a robust and efficient solution for modern solar energy systems. With advanced safety features, comprehensive connectivity options, and support for high-voltage systems, this inverter is ideal for optimising energy production in commercial installations.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
