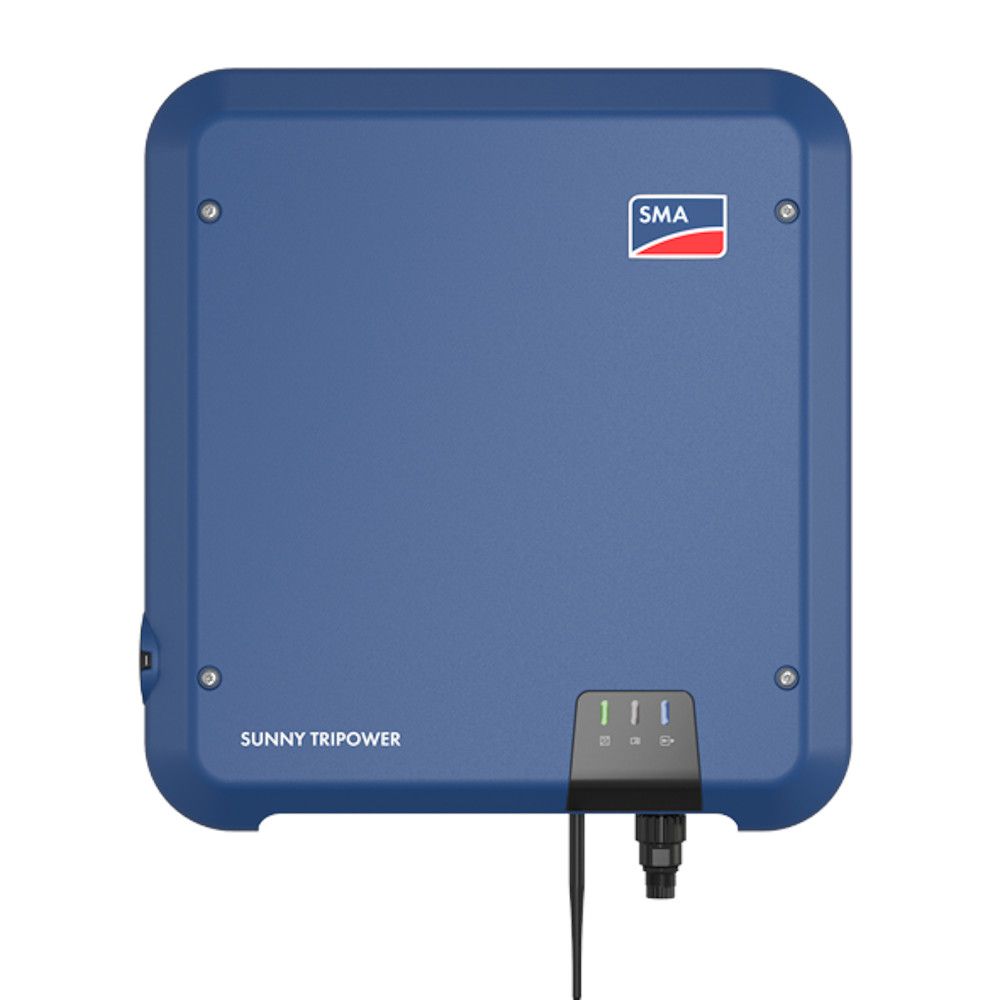

SMA Sunny Tripower STP8.0-3AV-40 Three Phase Inverter

SMA Sunny Tripower STP8.0-3AV-40 3Ph Inverter

The Sunny Tripower 8.0–10.0 is designed to maximise the performance of PV systems in private households, combining top-tier inverter efficiency with maximum user convenience. With integrated services and advanced shade solutions, this inverter is equipped to handle any challenges posed by residential rooftops, ensuring maximum solar yields and significant reductions in electricity costs.

Key Features:

Quick and Easy Installation:

Weighing only 20.5 kilograms, this three-phase Sunny Tripower is quick to install and takes up minimal space. Thanks to its integrated web interface, the Sunny Tripower can be commissioned swiftly using a smartphone or tablet, offering a 100% plug-and-play installation experience.

Intelligent Solar Power Generation:

In addition to established features such as SMA ShadeFix and SMA Smart Connected, the Sunny Tripower now includes integrated TS4-R communication for module optimisation. The SMA ShadeFix system ensures maximum yields even in light shade, while the optional TS4-R module optimisers can be selectively installed for roofs with significant shading or complex designs. Dynamic active power limitation allows for direct use of excess energy, reducing dependency on grid power.

Flexible Expansion Anytime:

The Sunny Tripower keeps PV system operators and installers future-ready. As solar power usage in the home increases, intelligent energy management and SMA storage solutions can be seamlessly added to systems featuring the Sunny Tripower.

Investment Security Included:

SMA Smart Connected offers free and automatic inverter monitoring, making SMA the first manufacturer to provide this service. This feature helps installers offer quick and targeted support to their customers. In the event of an inverter failure, SMA proactively notifies the PV system owner and installer, reducing diagnosis time and minimising downtime. If replacement is required, SMA quickly sends a replacement device at no additional cost.

Specifications:

• Brand: SMA
• Rated Power (W): 8,000
• Max DC Power (W): 15,000
• Inverter Phase: 3
• Total No. of Strings: 3
• No. of MPP Trackers: 2
• MPPT Voltage Range / Rated Input Voltage (V): 260-800
• Start-up Input Voltage (V): 150
• Max. Input Voltage (V): 1,000
• European Efficiency (%): 97.7
• Integrated DC Switch: Yes
• Inverter IP Rating: IP65
• Depth (mm): 176
• Height (mm): 497
• Width (mm): 460
• Product Weight (Kg): 20.5
• Grid Connection Standards (G98/G99/G100): G98
• Warranty Period: 5 Years

For more detailed information, download the datasheet here.
