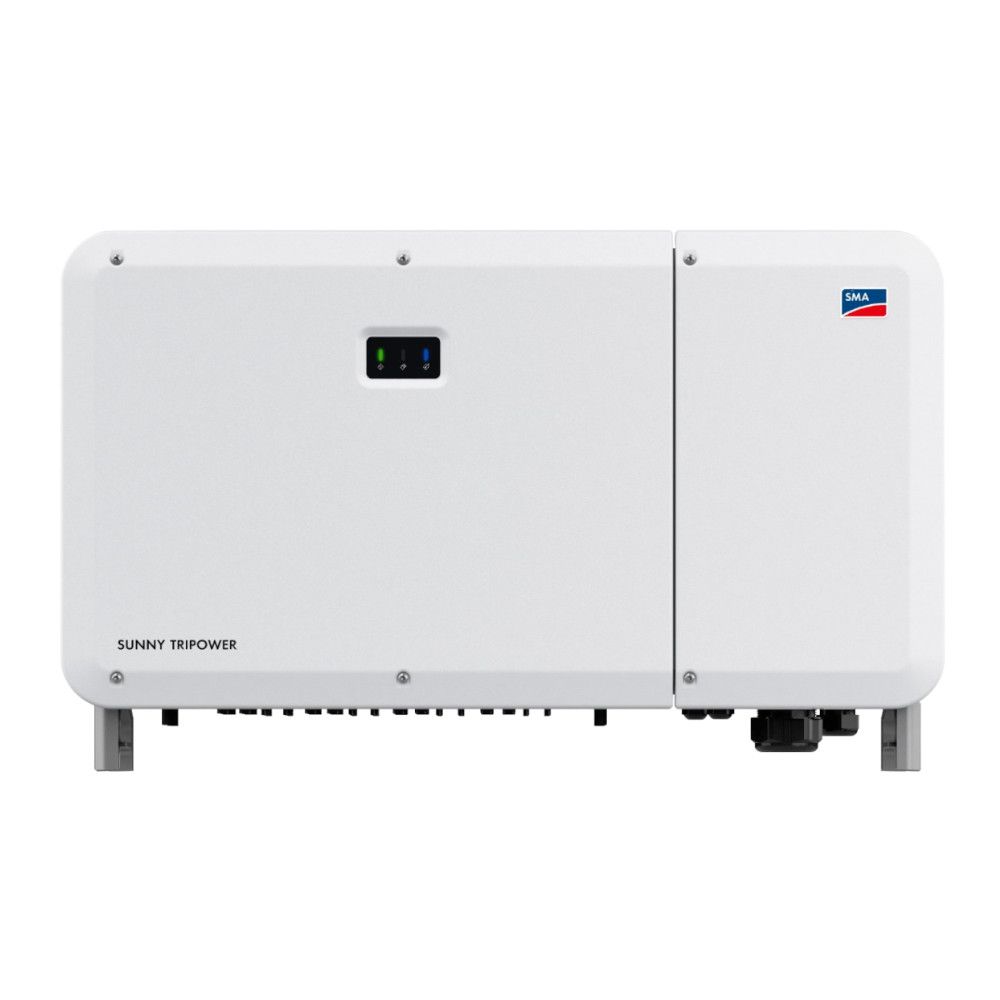

SMA Sunny Tripower CORE2 - STP 110-60 with AFCI

SMA Sunny Tripower CORE2 - STP 110-60 with AFCI

The Sunny Tripower CORE2 is the ideal inverter for larger commercial PV solutions, capable of supporting systems up to the megawatt range.

With 110 kilowatts, 24 strings, and 12 independent MPP trackers, the Sunny Tripower CORE2 with AFCI allows for a particularly high solar coverage in ground-mounted PV systems and across various roof pitches throughout the day.

The integrated SMA ShadeFix software solution automatically optimises system performance, even with partially shaded modules. Additionally, the automatic monitoring service SMA Smart Connected ensures maximum PV system yields by quickly detecting any failures.

As a central component of the SMA Energy System Business, the Sunny Tripower CORE2 offers installers and PV system operators high-quality components from a single source. It also provides future-proof options to expand their systems with SMA storage solutions.

The inverter comes with a 5-year guarantee as standard, with the option to extend it up to 20 years.

Notes:

• SMA confirmed that the CORE2 Inverter does not meet UK G100 requirements for export limitation due to specific platform limitations. Alternatives are mentioned in their statement, available in the attachment letter (20/11/22).
• SMA Statement: "An SMA Data Manager M is only needed if online monitoring on our Sunny Portal powered by EnnexOS or any Dynamic Power Control functions need to be implemented at the point of interconnection. The SMA CORE2 inverters are SunSpec Modbus Compatible (please refer to the attachment 'Sunspec Modbus Model Overview'). The end customer is free to use any third-party device for Monitoring and Control by using external G100 standalone devices.”

Key Features:

• 12 independent MPPTs
• 98.4% European efficiency
• 24 strings supported
• Integrated arc-fault circuit interrupter (AFCI)
• Max DC voltage: 1,100V
• C Sunclix connectors
• Compatible with Data Manager M
• Maximum yields with the integrated SMA ShadeFix software solution
• Flexible and future-proof expansion with seamless integration into the SMA Energy System Business
• Ethernet communication interface
• Integrated DC load-break switch
• DC overvoltage protection type I/II
• AC overvoltage protection type II
• Compatible with bifacial modules
• Up to 150% PV array oversizing supported
• Active air cooling
• IP66 degree of protection

Specifications:

• Brand: SMA
• Rated Power (W): 110,000
• Max DC Power (W): 165,000
• Inverter Phase: 3
• Total No. of Strings: 24
• No. of MPP Trackers: 12
• MPPT Voltage Range / Rated Input Voltage (V): 500-800
• Start-up Input Voltage (V): 200
• Max. Input Voltage (V): 1,100
• European Efficiency (%): 98.4
• Integrated DC Switch: Yes
• Inverter IP Rating: IP66
• Depth (mm): 363
• Height (mm): 682
• Width (mm): 1,117
• Product Weight (Kg): 93.5
• Grid Connection Standards (G98/G99/G100): G99
• Warranty Period: 5 Years

For more detailed information, download the datasheet here.
