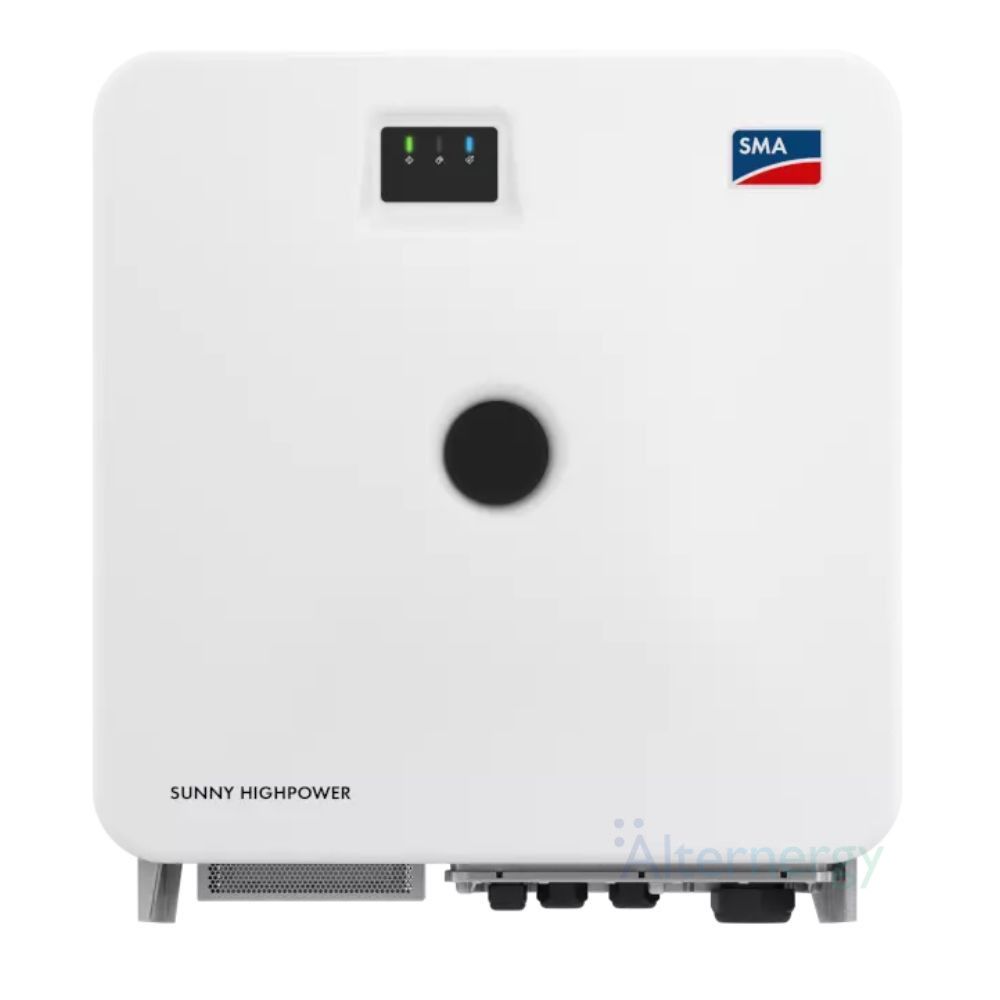

SMA Sunny Highpower PEAK3 172kW

SMA Sunny Highpower PEAK3 172kW

The SMA PEAK3 string inverters offer a decentralised solution for large-scale PV solar plants, providing optimal performance in a compact and lightweight design.

Key Features:

1500 VDC, 172 kW, Compact Design:

Designed for top performance while keeping transportation costs low and installation easy, the SMA PEAK3 string inverters are ideal for large-scale PV projects. The PV array can be oversized by up to 200% when combined with project-specific DC Combiner Boxes. The system is completed by the Data Manager, ensuring compliance with all grid operator requirements and enabling quick project start-up.

Maximum Safety & Reliability:

Each component of the PEAK3 inverter is specifically tailored to reduce weight, minimise potential error sources, and maximise efficiency. The SMA OptiCool™ active cooling system is a proven technology that ensures the long-term reliability of the inverters.

Fast Installation, Easy Commissioning:

Ergonomic grips and an integrated hook-in mechanism simplify the mounting process of the inverters. Large DC cables can be easily routed through a separable connection plate, making the connection hassle-free. A single Data Manager can commission up to 200 inverters centrally within minutes.

Efficient Control, Convenient Monitoring:

Reliable and fast Ethernet communication between the Data Manager and the inverter allows direct control of each device. The entire plant portfolio can be centrally monitored using the new Sunny Portal powered by ennexOS, allowing easy configuration changes across multiple plants. Additional monitoring systems can access all devices via the open Modbus/TCP interface.

Specifications:

• Brand: SMA
• Rated Power (W): 172,000
• Max DC Power (W): 344,000
• Inverter Phase: 3
• Total No. of Strings: 2
• No. of MPP Trackers: 1
• MPPT Voltage Range / Rated Input Voltage (V): 968-1450
• Start-up Input Voltage (V): 1,032
• Max. Input Voltage (V): 1,500
• European Efficiency (%): 98.9
• Integrated DC Switch: Yes
• Inverter IP Rating: IP65
• Depth (mm): 462
• Height (mm): 830
• Width (mm): 770
• Product Weight (Kg): 99
• Grid Connection Standards (G98/G99/G100): G99
• Warranty Period: 5 Years

For more detailed information, download the datasheet here.
