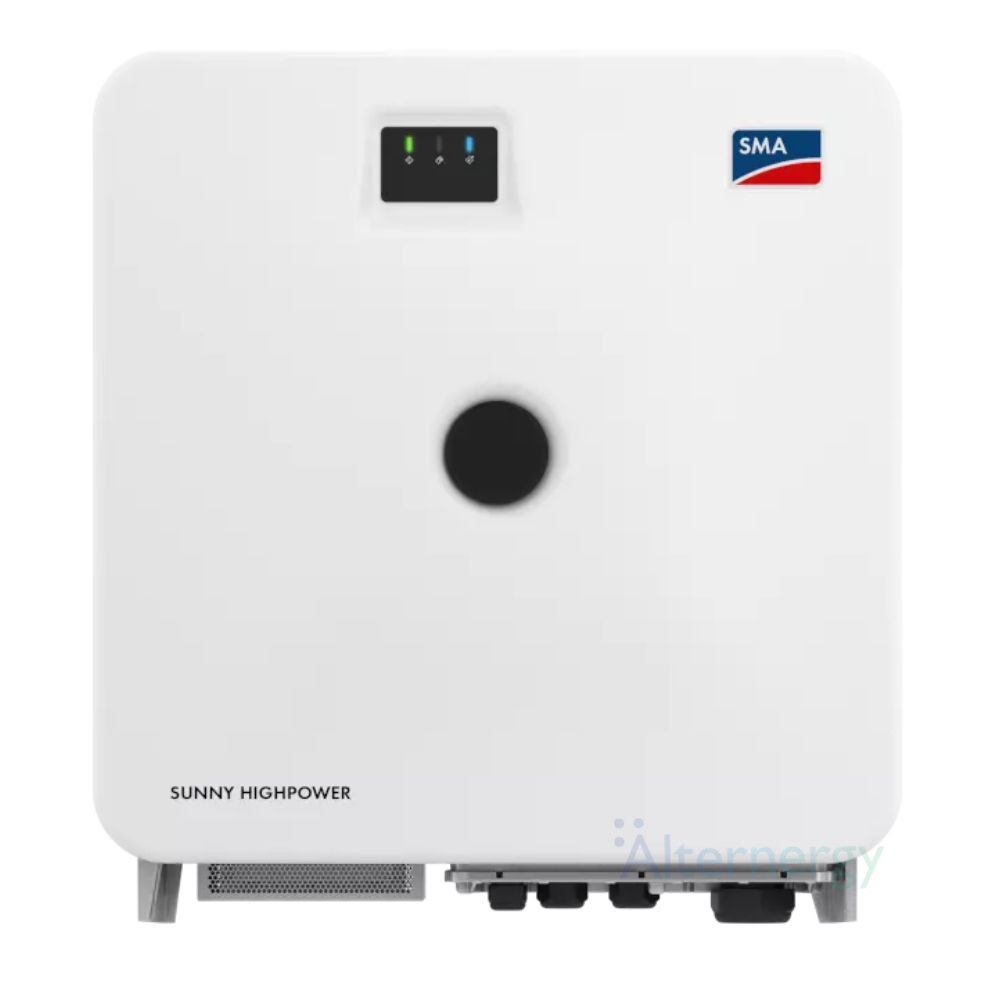

SMA Sunny Highpower PEAK3 150kW

SMA Sunny Highpower PEAK3 150kW

The SMA PEAK3 string inverters offer a decentralised solution for large-scale PV solar plants, combining optimal performance with a lightweight, compact design.

Key Features:

1500 VDC, 150 kW, Compact Design:

Delivering top performance at a reduced weight, the SMA PEAK3 string inverters facilitate cheaper transportation and easier installation. The PV array can be oversized by up to 200% when combined with project-specific DC Combiner Boxes. The Data Manager completes the system, ensuring all grid operator requirements are met, making it easy to get large-scale projects up and running.

Maximum Safety & Reliability:

Each component of the PEAK3 inverter is tailored to minimise weight, reduce potential error sources, and maximise efficiency. Proven technologies, such as the SMA OptiCool™ active cooling system, ensure the inverters' long-term reliability.

Fast Installation, Easy Commissioning:

With ergonomic grips and an integrated hook-in mechanism, mounting the inverters is straightforward. Large, stiff DC cables can be routed easily via a separable connection plate, simplifying the connection process. A single Data Manager can commission up to 200 inverters centrally within minutes.

Efficient Control, Convenient Monitoring:

Reliable, fast Ethernet communication between the Data Manager and the inverter allows for direct control of each device. The entire plant portfolio can be monitored centrally through the new Sunny Portal powered by ennexOS, with configuration changes easily managed across plants. Additional monitoring systems can access all devices via the open Modbus/TCP interface.

Specifications:

• Brand: SMA
• Rated Power (W): 150,000
• Max DC Power (W): 300,000
• Inverter Phase: 3
• Total No. of Strings: 2
• No. of MPP Trackers: 1
• MPPT Voltage Range / Rated Input Voltage (V): 880-1450
• Start-up Input Voltage (V): 940
• Max. Input Voltage (V): 1,500
• European Efficiency (%): 98.8
• Integrated DC Switch: Yes
• Inverter IP Rating: IP65
• Depth (mm): 462
• Height (mm): 830
• Width (mm): 770
• Product Weight (Kg): 99
• Grid Connection Standards (G98/G99/G100): G99
• Warranty Period: 5 Years

For more detailed information, download the datasheet here.
