Pylon Force H1 Battery Management Unit

Pylon Force H1 Battery Management Unit

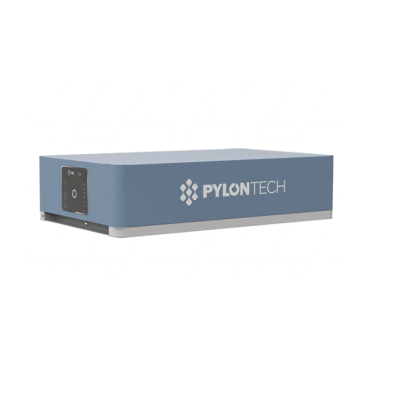

The Pylontech Force H1 Battery Management Unit (BMS) is an essential component of the Force H1 Energy Storage System (ESS) range. It must be paired with the FH48074 Battery Module/Cassette to ensure optimal performance. The BMS is supplied with a UP/US Cable Kit and is designed to enhance the safety and efficiency of your energy storage setup.

Key Features:

• Long Cycle Life:
  Over 5,000 cycles at 25°C with 90% Depth of Discharge (DoD) for daily cyclic applications, ensuring durability and long-term performance.
• Wide Temperature Range:
  Operates efficiently within a working temperature range of 0°C to 50°C, with excellent discharge performance and cycle life. Storage temperature range of -20°C to 60°C.
• Indoor and Covered Outdoor Installation:
  Suitable for both indoor and covered outdoor installations, with an IP55 protection rating for added durability.
• Advanced Safety Features:
  Equipped with protection functions including over-discharge, over-charge, over-current, and high/low temperature safeguards.
• Lithium Iron Phosphate (LiFePO4) Technology:
  Utilises LiFePO4 cathode material for enhanced safety and long cycle life.
• Modular and Expandable Design:
  Offers a scalable solution with a capacity range from 10.65kWh to 24.86kWh, allowing for quick and secure installation and maintenance without exposed wiring or connectors.
• Inverter Compatibility:
  Compatible with a wide range of available hybrid inverters and is Clean Energy Council (CEC) approved.

Additional Specifications:

• Manufacturer: Pylon Technologies
• Weight: 36.0 kg
• Battery Chemistry: Lithium-Ion
• Commodity Code: 85371010
• Dimensions (mm) (H x W x D): 380 x 190 x 600
