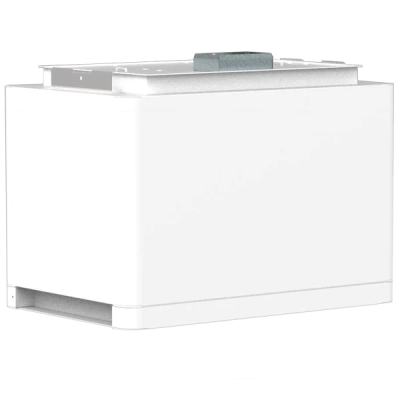

Pylon Force-FH2 3.55kWh Lithium Battery

Pylon Force-FH2 3.55kWh Lithium Battery

The Pylontech Force H2 is the latest high-voltage battery storage system designed to deliver efficient and flexible energy solutions. This advanced system is ideal for large homes and small commercial applications, offering a modular stacking system that allows for configurations ranging from 96V to 384V and 7.1kWh to 14.21kWh capacity. The new design simplifies installation, saving time for installers, and requires a battery management unit to operate.

Key Features:

• Flexible Module Design:
  Modular setup allows for easy expansion and adaptability to meet varying energy storage needs.
• Reliable Performance:
  Engineered with Pylontech’s trusted technology, ensuring consistent and dependable energy storage.
• High Usable Capacity:
  Offers 90% Depth of Discharge (DoD) for maximum usable capacity, providing more energy when you need it.
• Durable and Weatherproof:
  Rated with IP55 class protection, making it suitable for both indoor and outdoor installations.

Technical Specifications:

• Battery Type: Lithium-Ion
• Nominal Energy: 3552 Wh
• Depth of Discharge: 90.00%
• Voltage: 96 V
• Continuous Discharge Rate (Normal Use): 1776 W
• Maximum Discharge Rate (5 Minutes): 3840 W
• Surge Discharge Rate (15 Seconds): 3840 W
• Maximum Charge Rate (5 Minutes): 1776 W

Additional Specifications:

• Manufacturer: Pylon Technologies
• Weight: 38.0 kg
• Voltage: 48V
• Battery Chemistry: Lithium-Ion
• Commodity Code: 85076000
• Dimensions (mm) (H x W x D): 545 x 391 x 421
