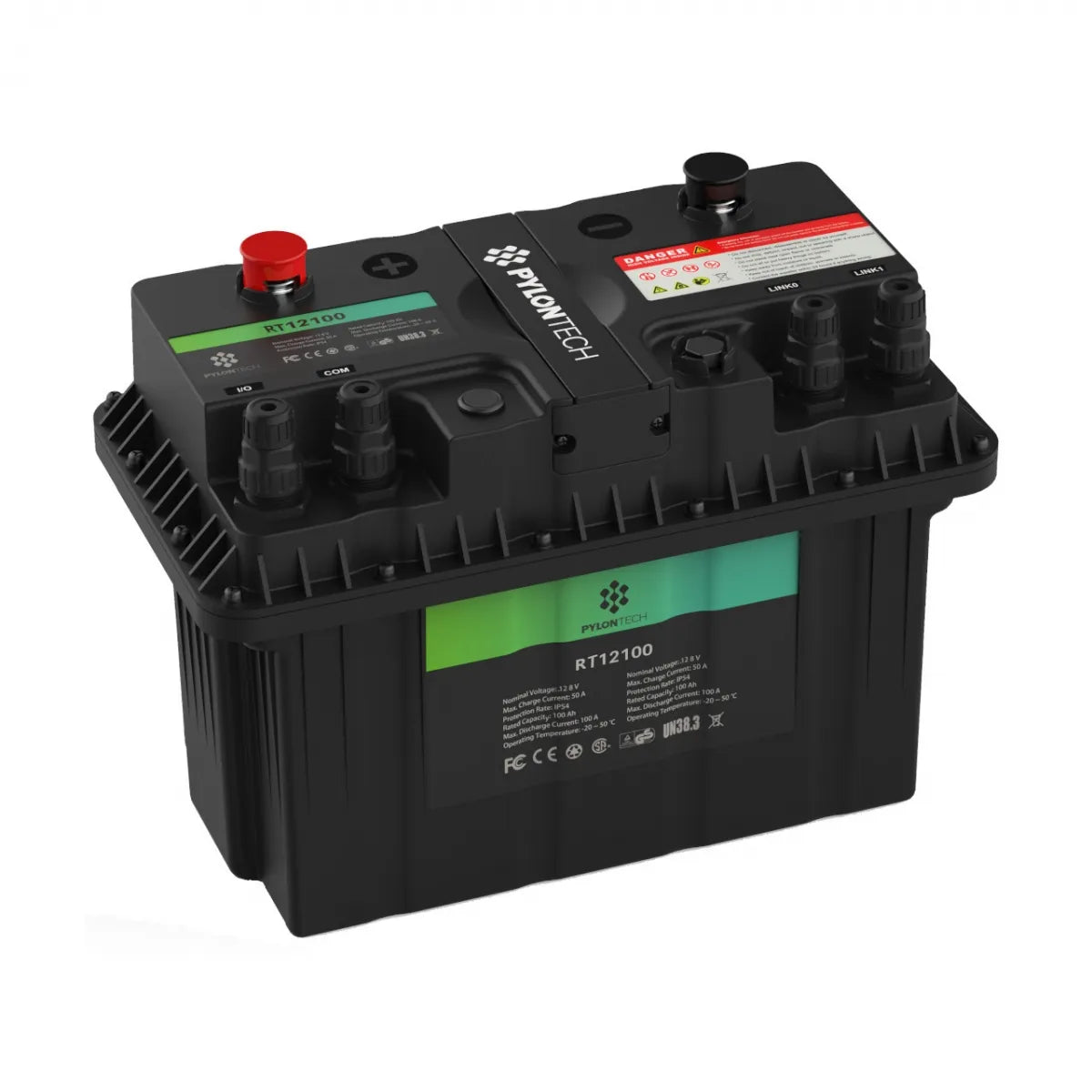

Pylon 12V 100Ah Heated Lithium Battery RT12100G31
Pylon 12V 100Ah Heated Lithium Battery RT12100G31
Regular price
£494.99
Regular price
Sale price
£494.99
Unit price
/
per
SKU:RT12100G31
The Pylontech RT12100G31 battery has been developed to provide adaptability and scalability to applications from Marine, RV/Caravan, 4x4 and other solar storage systems.
The Intelligent BMS provides the ultimate in safety with temperature protection, over-voltage, over-current and short circuit protection to ensure safe operation, high reliability & zero maintenance to extend service life.
Pylontech RT12100G31 Key Features
- Auto-Balance Multiple Batteries in Parallel
- Connects multiple batteries in parallel safely without internal non-uniformity issues.
- Expandable up to 4 series and 4 parallel for up to 48V 400Ah
- Customise your system. 16 units can be scaled in a variety of series and parallel such as 4 Series 4 Parallel, 2 Series 8 Parallel, 1 Series 16 Parallel.
As Lithium batteries provide clear advantages over traditional lead-acid batteries with longer service life, deeper discharge capability, more usable capacities and much lighter weight, the RT12100G31 is a great solution for many applications.
Pylontech RT12100G31 Advantages
- Twice the usable capacity (compared to the same capacity of FLA/AGM/GEL)
- Deep Cycle (Auto cut-off at 10V)
- Calendar life of 10+ years, the cycle life of 4000 times
- High charging current
- Embedded BMS
- RS485, CAN and Bluetooth 5 Connectivity
- Connect up to 4x Parallel and 4x Series (16 batteries in total)
- Zero maintenance
- Working Temperature -20 to -60°C
- Rugged mechanical design
- Ingress protection IP67 Rating - great for marine applications
- Built-in heater
- Serviceable design (marine grade stainless steel screws to replace BMS and/or cells)
Model | RT12100G31 |
---|---|
Nominal Voltage | 12.8v |
Nominal Capacity | 100Ah (1280Wh) |
Cycle Life (DOD - 80% under controlled conditions) | >3000 cycles (90% DoD) @ 25°C |
Maximum Charge Voltage | 14.2V - 14.6V (14.4V recommended) |
Maximum Cont. Charge Current | 50A |
Maximum Cont. Discharge Current | 100A |
Discharge Cut-Off Voltage | 10v |
Operating Discharge temperature | -20 to -60°C |
Operating Charge temperature | -0 to -50°C |
Storage temperature | -40 to -60°C |
State of Charge Display | Yes |
Short Circuit Protection | Yes |
IP Rating |
IP67 Rating
|
Series* Connection Allowed | Up to 4S |
Parallel* Connection Allowed | Up to 16P @ 12V Up to 8P @ 24V Up to 4P @ 48V |
Case Structure | Rugged mechanical design |
Safety | UN38.3 Approved |
Size |
G31 Size
|
Dimensions (L x W x H) | 325 x 174 x 226mm |
Weight | Approx. 13KG |
Warranty | 3 Years |
