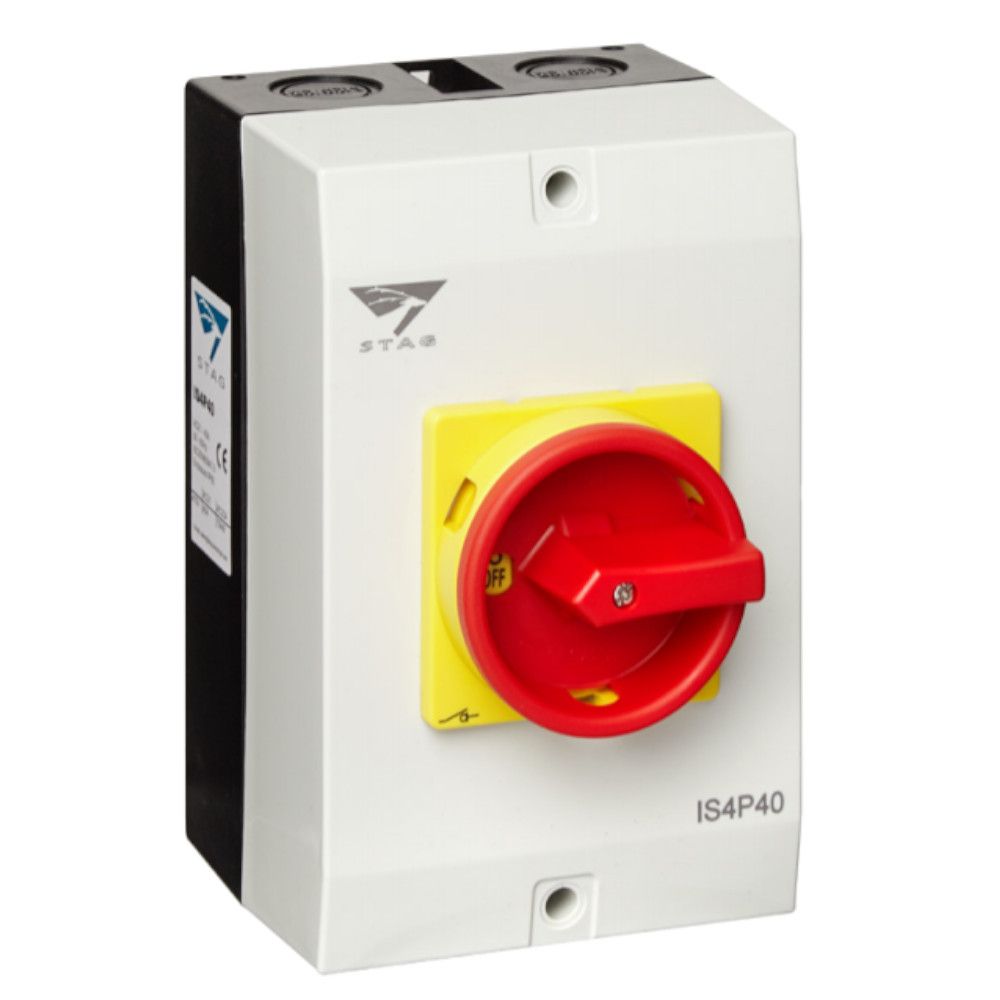

Stag 40A AC Isolator - 4 Pole IP65 Enclosed
The Stag 4 Pole 40A AC Isolator is constructed from high-quality flame-retardant materials and sealed to an IP65 rating, ensuring it is tough, durable, and suitable for a wide range of applications.

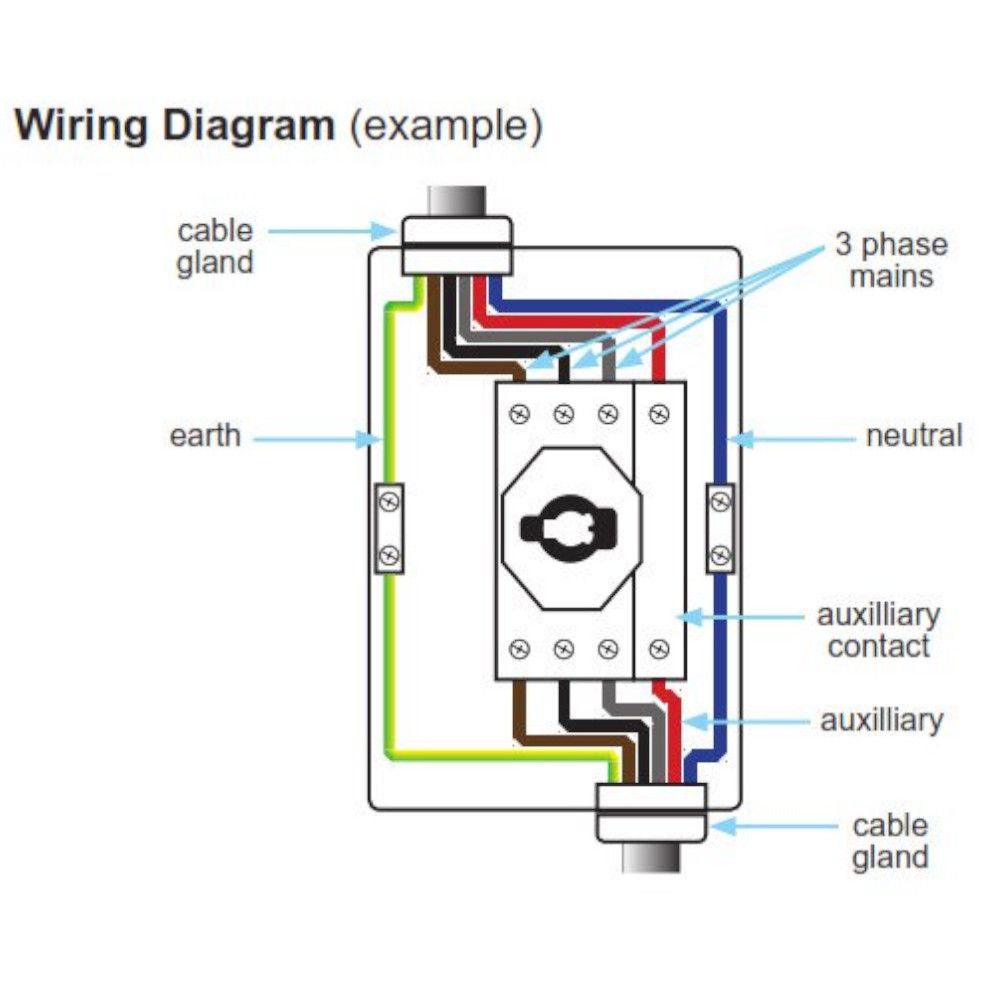

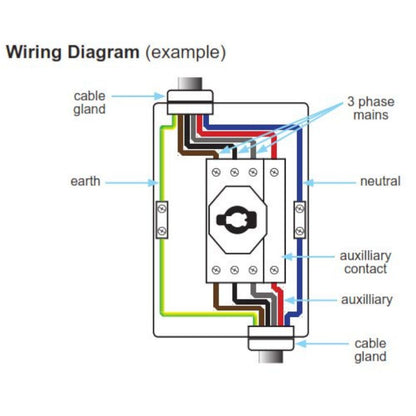

Designed with safety as a priority, this isolator only opens in the OFF position and includes additional earth and neutral connections. The 4th pole is an Early Make Late Break, which can be used to switch a neutral. The isolator enclosures also feature multiple gland knockout holes, providing a versatile and adaptable solution.
Key Features:
- 4 Poles
- 40A Capacity
- 230-440V
- IP65 Protection Rating: Ensures reliable performance in harsh environments.
- EN 60947-3 Compliant
- Multiple Gland Knockouts: Allows for flexible installation options.
- Lockable Rotary Handle: Enhances security and safety.
- Flame Retardant Construction: Built to withstand high temperatures.
- External Mounting Points: Simplifies installation.
- Additional Earth Connection
- Interlocked Enclosure Lid: Prevents the enclosure from being opened while the isolator is ON.
- Dimensions: 175x115x100mm
For more detailed information, download the datasheet here.
