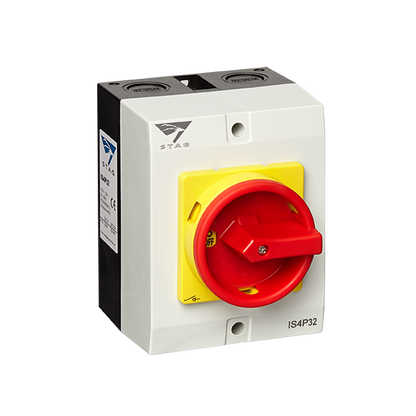

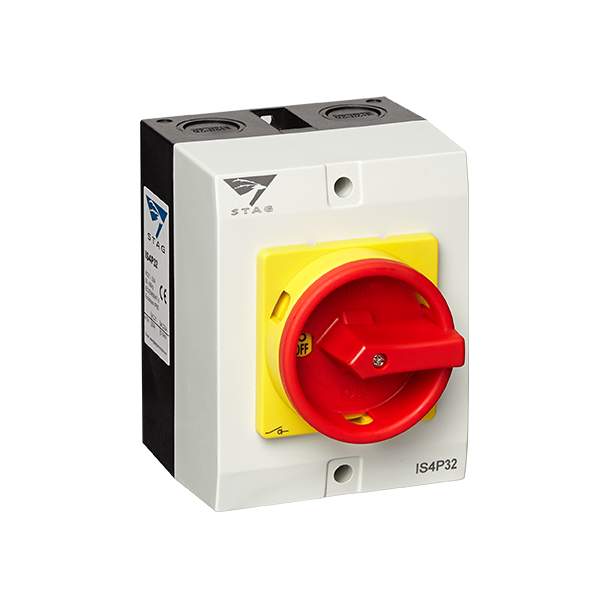

IMO Stag 32A AC Isolator - 4 Pole IP65 Enclosed

Stag 32A AC Isolator - 4 Pole IP65 Enclosed

The Stag 4 Pole 32A AC Isolator is constructed from high-quality flame-retardant materials and sealed to an IP65 rating, making it tough, durable, and suitable for a wide range of applications.

Designed with safety as a priority, this isolator only opens in the OFF position and includes additional earth and neutral connections. The 4th pole is an Early Make Late Break, which can be used to switch a neutral. The isolator enclosures also feature multiple gland knockout holes, providing a versatile and adaptable solution.

Key Features:

• 4 Poles
• 32A Capacity
• IP65 Protection Rating: Ensures reliable performance in harsh environments.
• EN 60947-3 Compliant
• Multiple Gland Knockouts: Allows for flexible installation options.
• Lockable Rotary Handle: Enhances security and safety.
• Flame Retardant Construction: Built to withstand high temperatures.
• External Mounting Points: Simplifies installation.
• Additional Earth Connection
• Interlocked Enclosure Lid: Prevents the enclosure from being opened while the isolator is ON.
• Dimensions: 125x100x85mm

For more detailed information, download the datasheet here.
