IMO

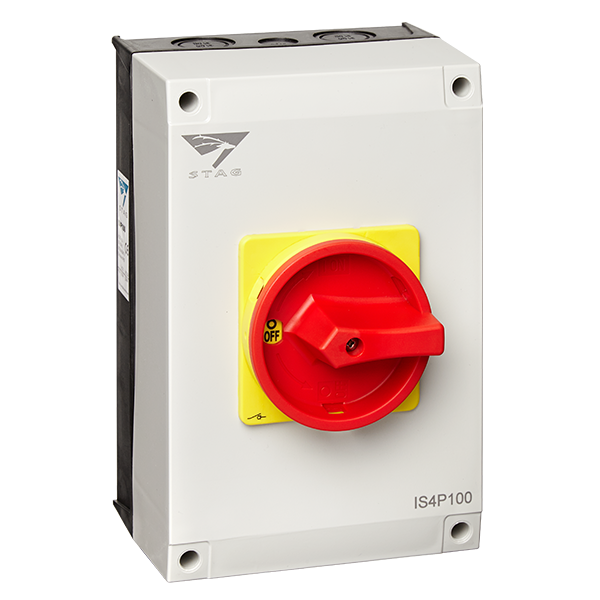

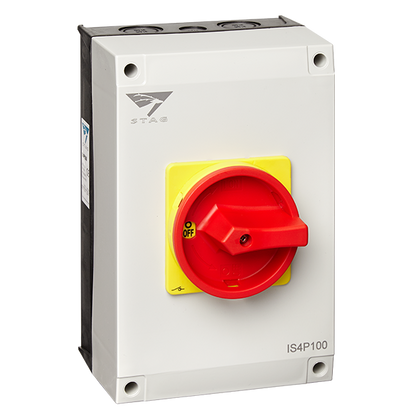

IMO Stag 100A AC Isolator - 4 Pole IP65 Enclosed

IMO Stag 100A AC Isolator - 4 Pole IP65 Enclosed

Regular price £54.99
Regular price Sale price £54.99
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:IMO - IS4P100

Stag 100A AC Isolator - 4 Pole IP65 Enclosed

The Stag 4 Pole 100A AC Isolator is crafted from high-quality flame-retardant materials and sealed to an IP65 rating, ensuring it is tough, durable, and suitable for a wide range of applications.

Designed with safety as a priority, this isolator only opens in the OFF position and includes additional earth and neutral connections. The 4th pole is an Early Make Late Break, which can be used to switch a neutral. The isolator enclosures also feature multiple gland knockout holes, providing a versatile and adaptable solution.

Key Features:

  • 4 Poles
  • 100A Capacity
  • 230-440V
  • IP65 Protection Rating: Ensures reliable performance in harsh environments.
  • EN 60947-3 Compliant
  • Multiple Gland Knockouts: Allows for flexible installation options.
  • Lockable Rotary Handle: Enhances security and safety.
  • Flame Retardant Construction: Built to withstand high temperatures.
  • External Mounting Points: Simplifies installation.
  • Additional Earth Connection
  • Interlocked Enclosure Lid: Prevents the enclosure from being opened while the isolator is ON.
  • Dimensions: 240x160x120mm

For more detailed information, download the datasheet here.
