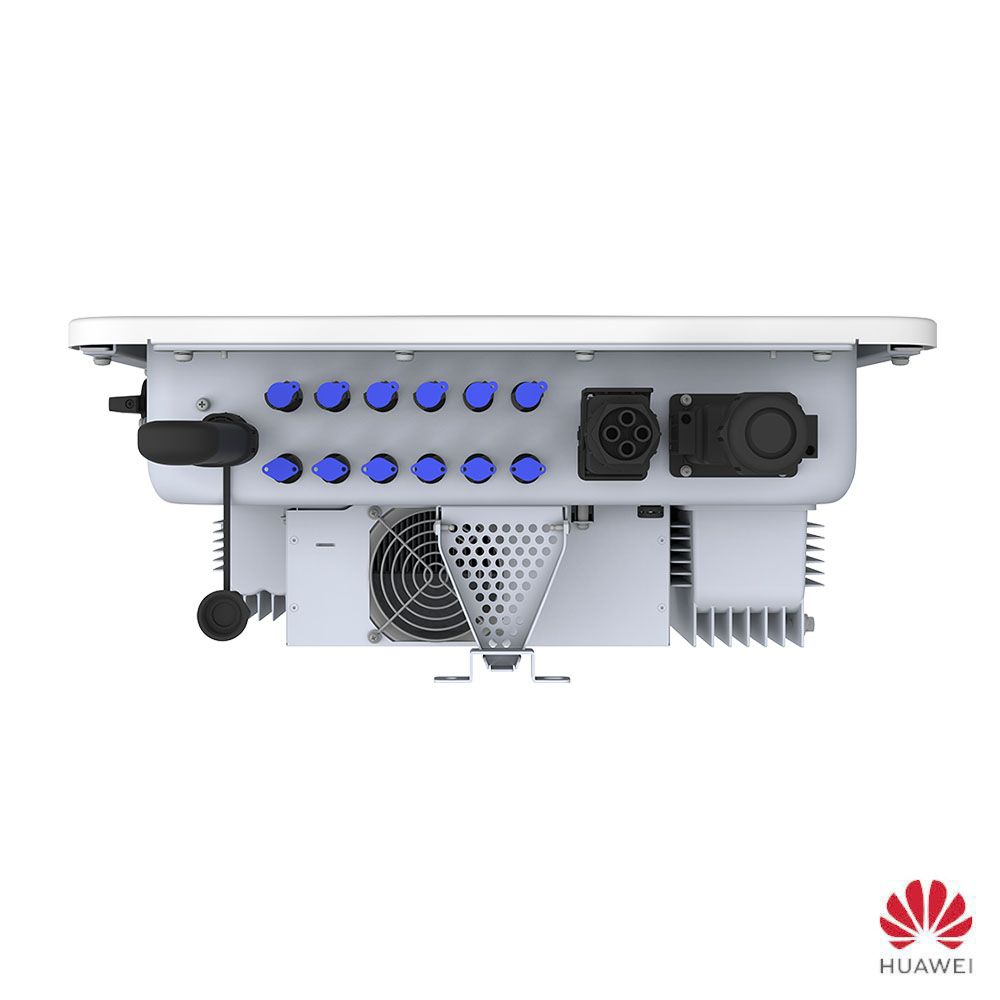

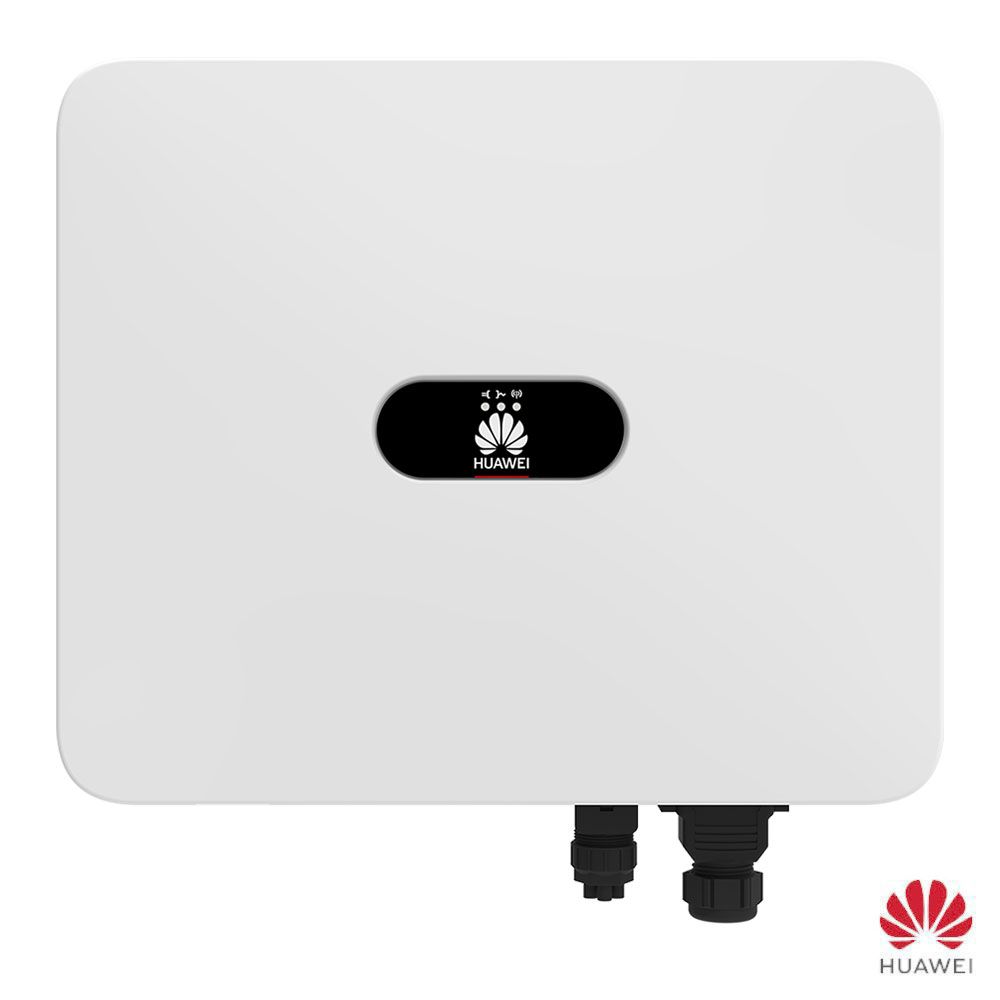

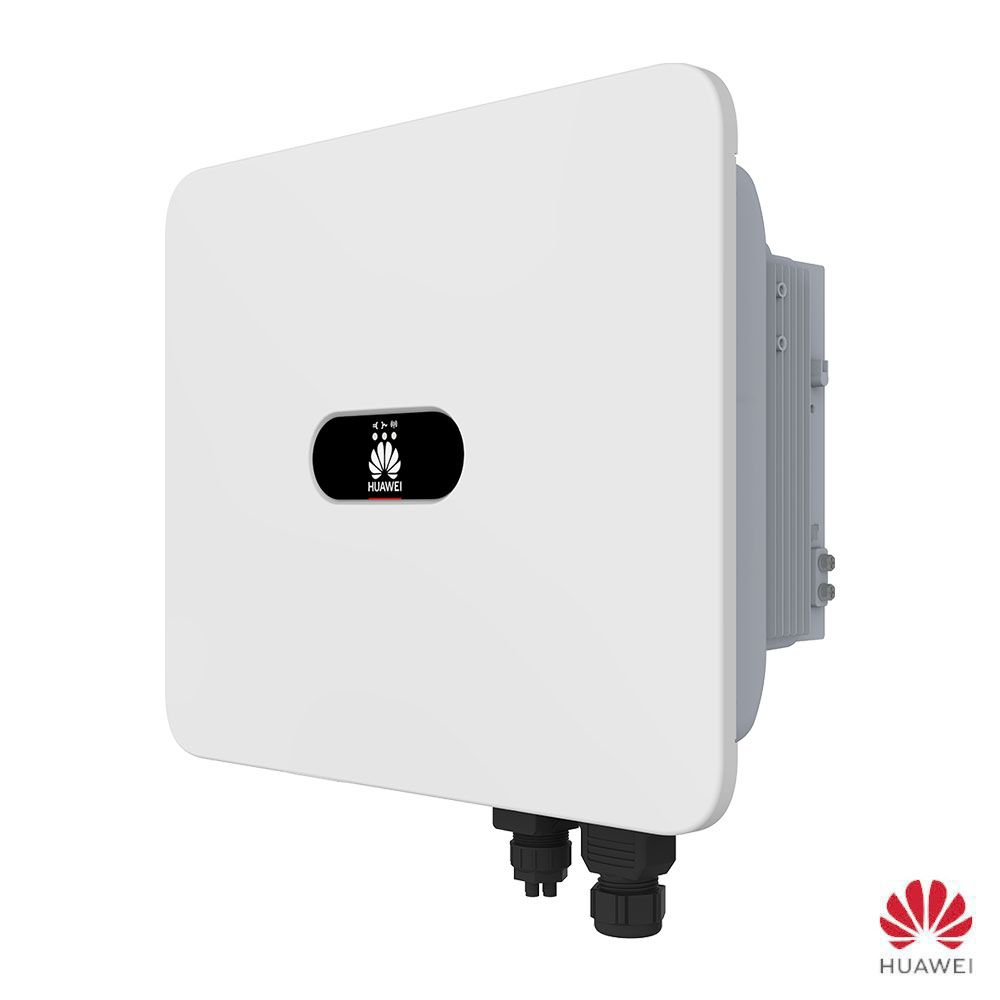

Huawei SUN2000 25K-MB0 3ph Hybrid Inverter

Huawei SUN2000 25K-MB0 3ph Hybrid Inverter

The Huawei SUN2000-25K-MB0 25kW Three-Phase Hybrid Inverter is a lightweight and compact solution built for efficient energy management in advanced residential and commercial solar systems. With two MPP trackers and four PV string inputs, this high-capacity inverter supports flexible and optimized solar energy capture. Integrated PID recovery and AFCI arc detection enhance system safety and ensure peak efficiency, allowing operators full control over power generation, storage, and consumption.

Compatible with the Huawei Smart PV Optimiser SUN2000-450W-P2, this inverter also supports parallel connection with up to three devices when combined with the Smart String ESS, making it adaptable and scalable for growing energy needs.

Key Features of the Huawei SUN2000 25K-MB0 3ph Hybrid Inverter:

• 25,000W power capacity, ideal for large residential and commercial solar installations
• Dual MPPT (Maximum Power Point Tracking) for high energy capture and system flexibility
• Three-phase output for stable and efficient power distribution
• Max input current per MPPT: 30 A (two-string) / 20 A (single-string)
• Compatible with Huawei Smart PV Optimiser SUN2000-450W-P2 for maximized solar efficiency
• Supports parallel connection of up to three devices with Smart String ESS for expanded capacity
• Integrated Type II AC and DC surge protection for enhanced system safety
• IP66 protection rating, ensuring durability in outdoor environments
• Flexible communication options: RS485, WLAN/Ethernet (with optional Smart Dongle), and 4G/3G/2G with optional Smart Dongle-4G

Technical Specifications:

Download the datasheet for Huawei SUN2000 25K-MB0 3ph Hybrid Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
