Huawei SUN2000 20K-MB0 3ph Hybrid Inverter

Huawei SUN2000 20K-MB0 3ph Hybrid Inverter

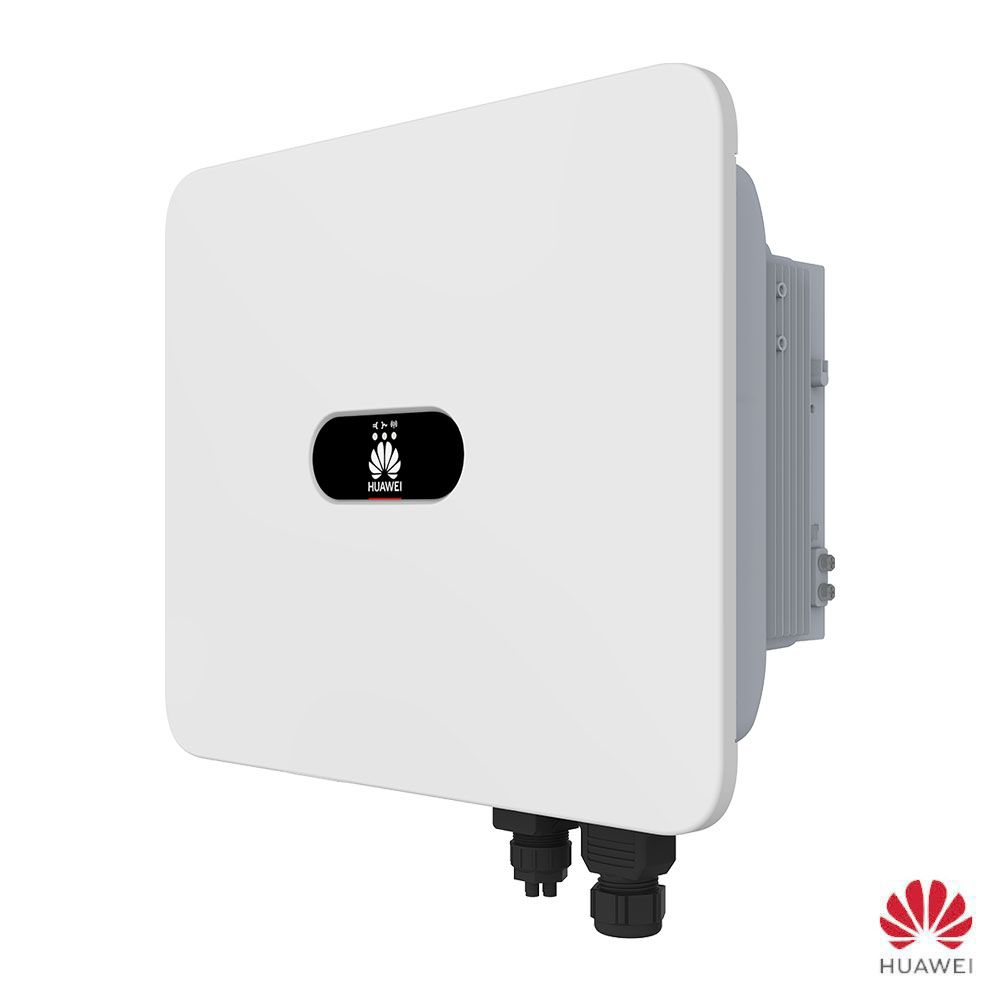

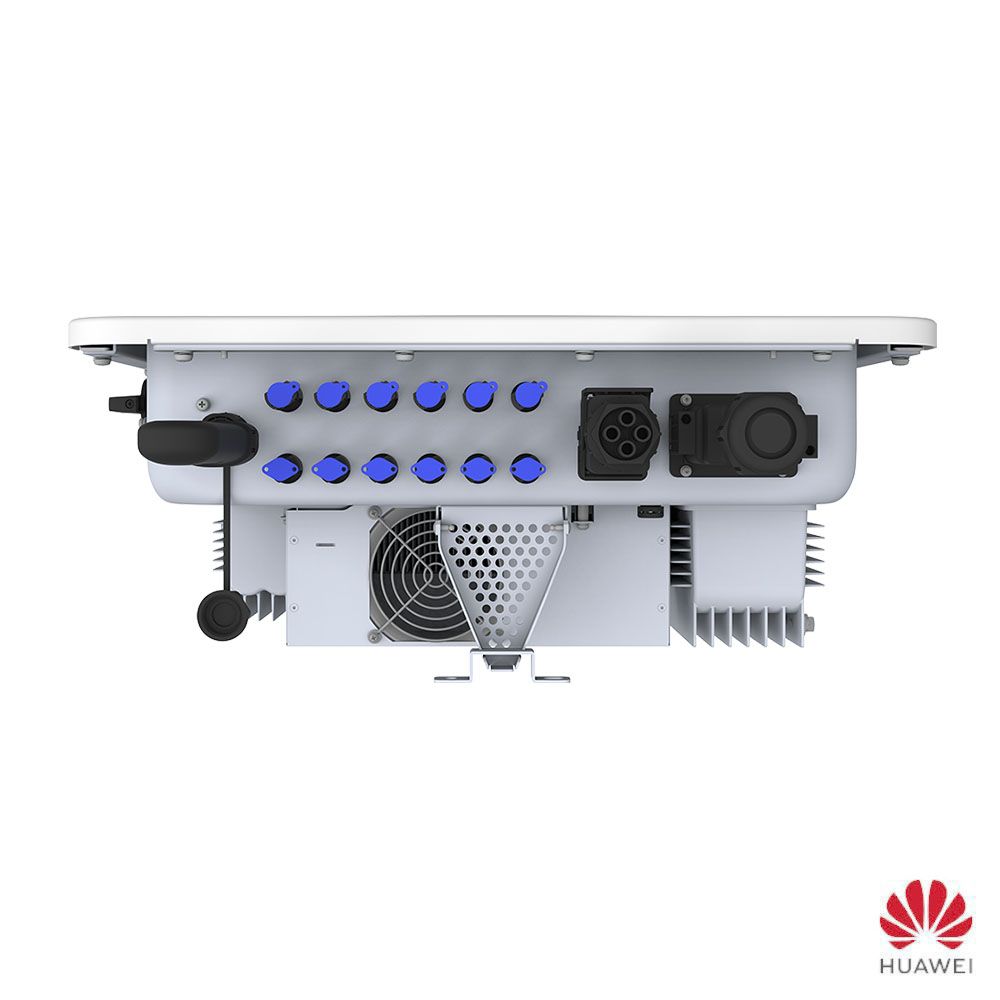

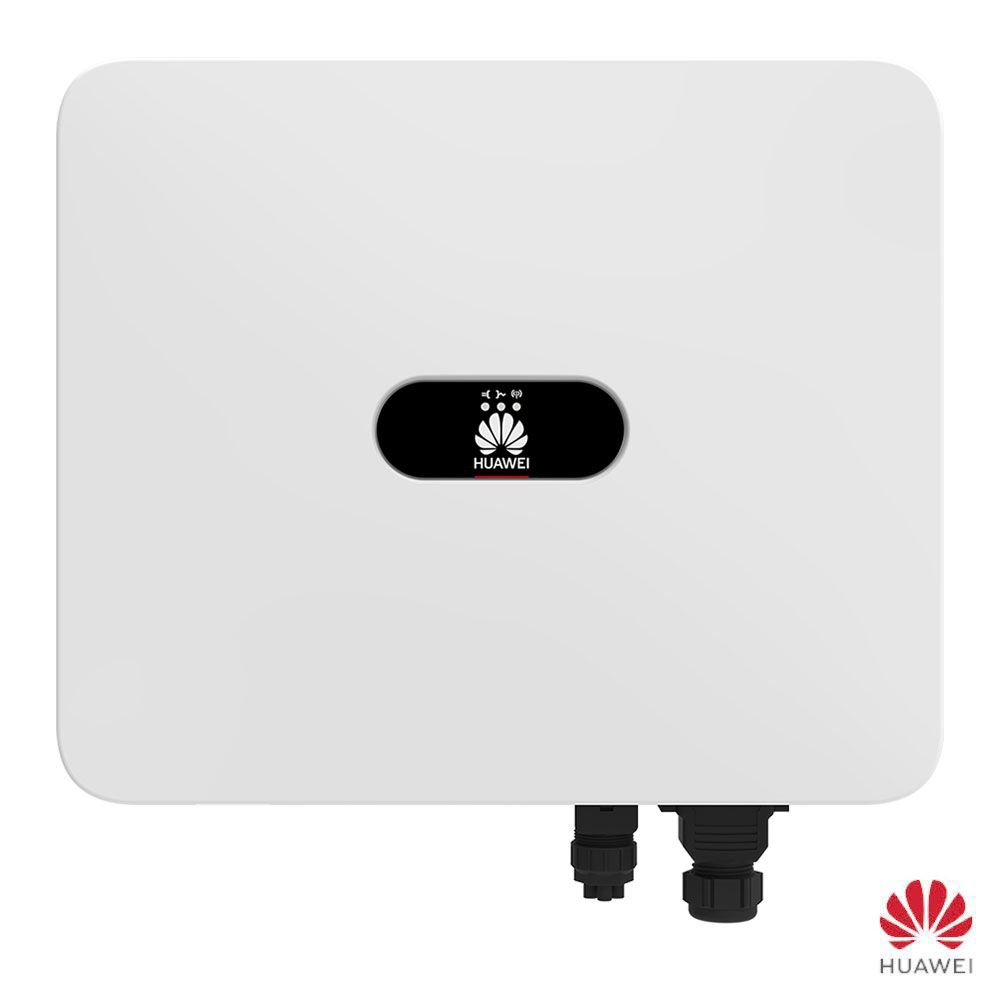

The Huawei SUN2000-20K-MB0 20kW Three-Phase Hybrid Inverter is a lightweight and compact solution designed for advanced residential and commercial solar systems. This high-capacity hybrid inverter is equipped with two MPP trackers and four PV string inputs, allowing for efficient energy management and flexible system design. With integrated PID recovery and AFCI arc detection, the SUN2000-20K-MB0 ensures maximum safety and efficiency, giving operators complete control over power generation, storage, and consumption.

This versatile inverter is compatible with the Huawei Smart PV Optimiser SUN2000-450W-P2 and supports parallel connection with up to three devices when combined with the Smart String ESS, making it scalable and adaptable for expanding energy needs.

Key Features of the Huawei SUN2000 20K-MB0 3ph Hybrid Inverter:

• 20,000W power capacity, ideal for large residential and commercial solar installations
• Dual MPPT (Maximum Power Point Tracking) for high energy capture and system adaptability
• Three-phase output for stable and efficient power distribution across multiple applications
• Max input current per MPPT: 30 A (two-string) / 20 A (single-string)
• Compatible with Huawei Smart PV Optimiser SUN2000-450W-P2 for optimized solar efficiency
• Supports parallel connection of up to three devices with Smart String ESS for expanded capacity
• Integrated Type II AC and DC surge protection for enhanced system safety
• IP66 protection rating for durability in outdoor environments
• Flexible communication options: RS485, WLAN/Ethernet (optional Smart Dongle), and 4G/3G/2G via optional Smart Dongle-4G

Technical Specifications:

Download the datasheet for Huawei SUN2000 20K-MB0 3ph Hybrid Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
