Huawei SUN2000 17K-MB0 3ph Hybrid Inverter

Huawei SUN2000 17K-MB0 3ph Hybrid Inverter

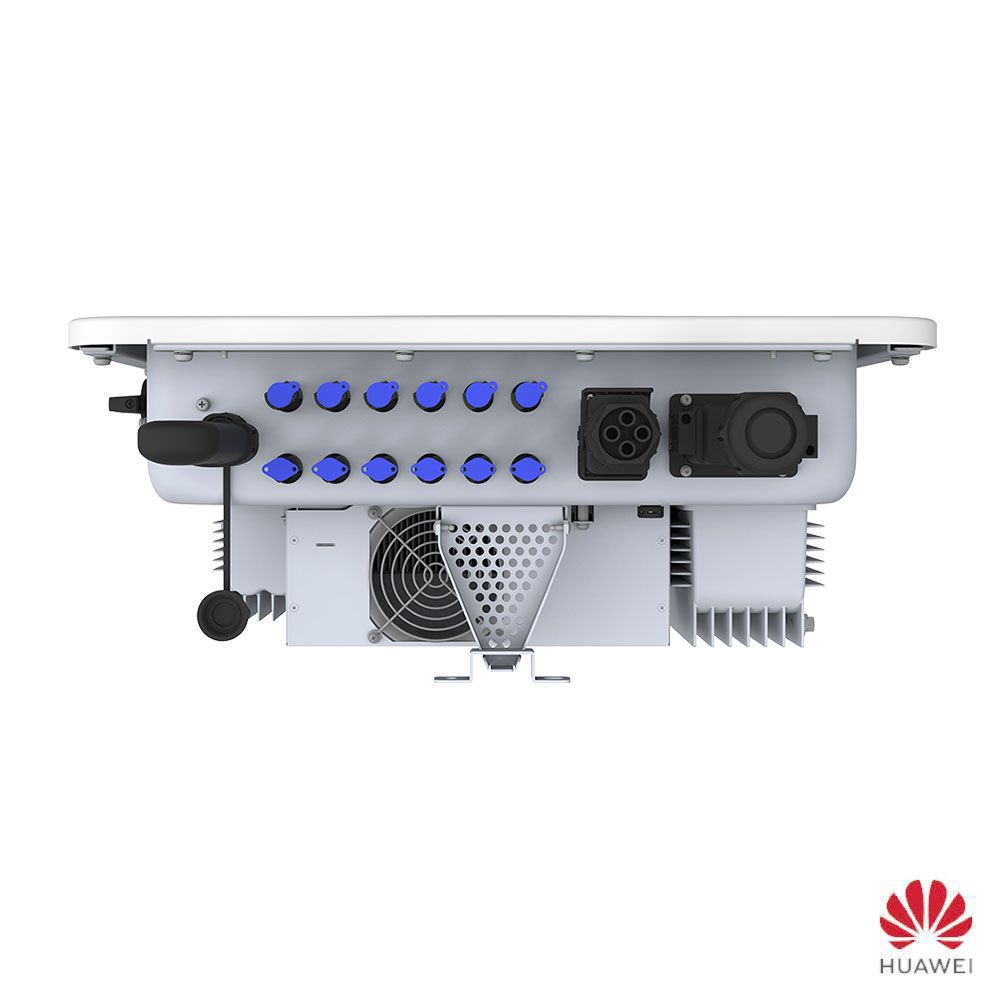

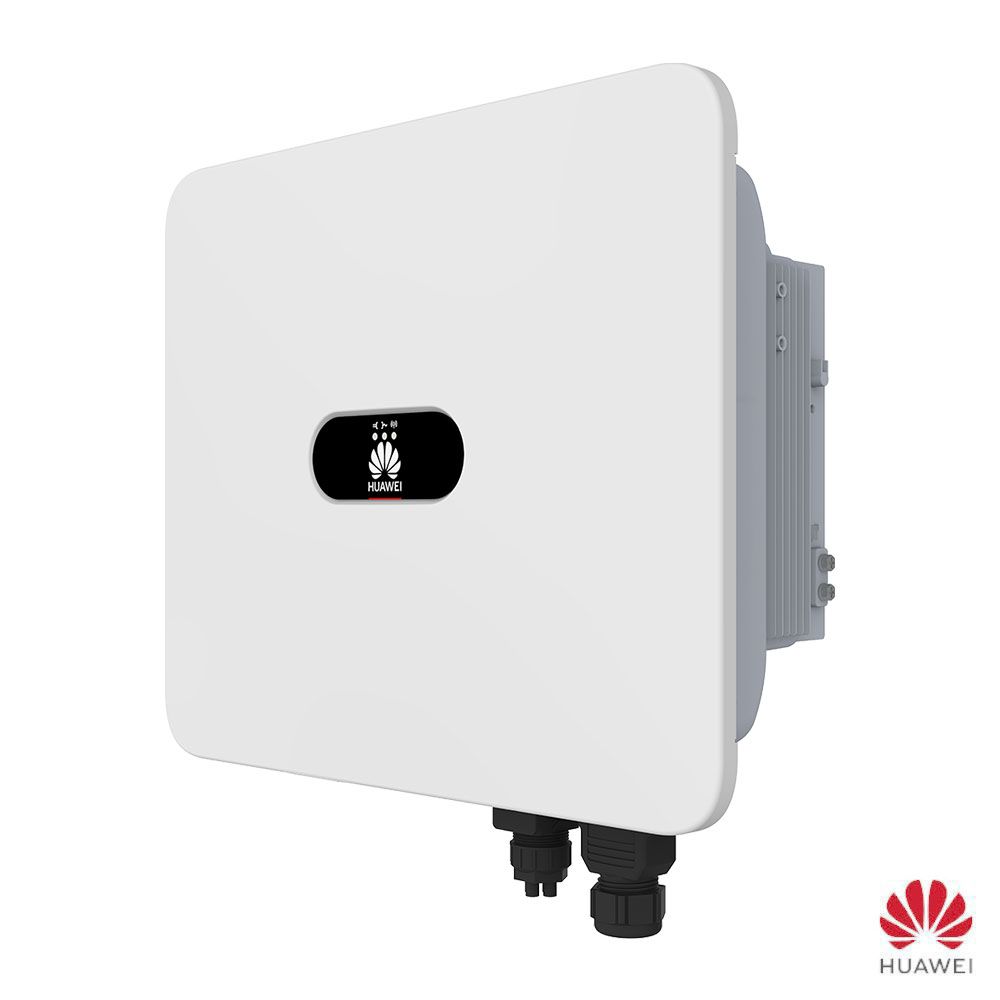

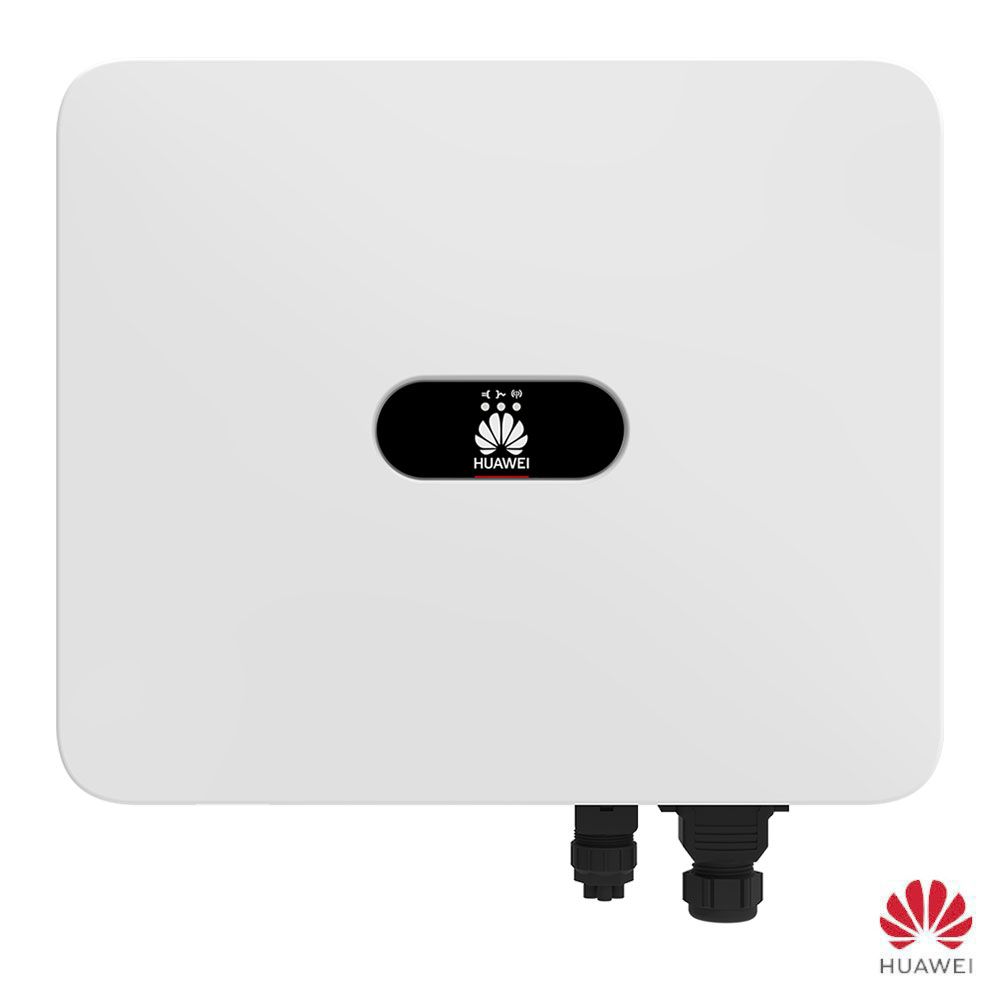

The Huawei SUN2000-17K-MB0 17kW Three-Phase Hybrid Inverter is a lightweight, compact solution designed for advanced solar systems, offering efficient energy management in residential and commercial installations. Equipped with two MPP trackers and a total of four PV string inputs, this inverter ensures optimal energy capture and flexibility in system design. With integrated PID recovery and AFCI arc detection, the SUN2000-17K-MB0 provides maximum safety and system efficiency, empowering operators to manage energy generation, storage, and consumption seamlessly.

This versatile inverter is compatible with the Huawei Smart PV Optimiser SUN2000-450W-P2 and allows for parallel connection with up to three devices when paired with the Smart String ESS, making it scalable and adaptable for various energy needs.

Key Features of the Huawei SUN2000 17K-MB0 3ph Hybrid Inverter:

• 17,000W power capacity, suitable for large residential and commercial solar installations
• Dual MPPT (Maximum Power Point Tracking) for high energy capture and system adaptability
• Three-phase output for stable and efficient power distribution across phases
• Max input current per MPPT: 30 A (two-string) / 20 A (single-string)
• Compatible with Huawei Smart PV Optimiser SUN2000-450W-P2 for enhanced solar efficiency
• Supports parallel connection of up to three devices with Smart String ESS, allowing for expanded system capacity
• Built-in Type II AC and DC protection for increased system safety and durability
• IP66 protection rating for reliable performance in various outdoor environments
• Flexible communication options: RS485, WLAN/Ethernet (optional Smart Dongle), and optional 4G/3G/2G via Smart Dongle-4G

Technical Specifications:

Download the datasheet for Huawei SUN2000 17K-MB0 3ph Hybrid Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
