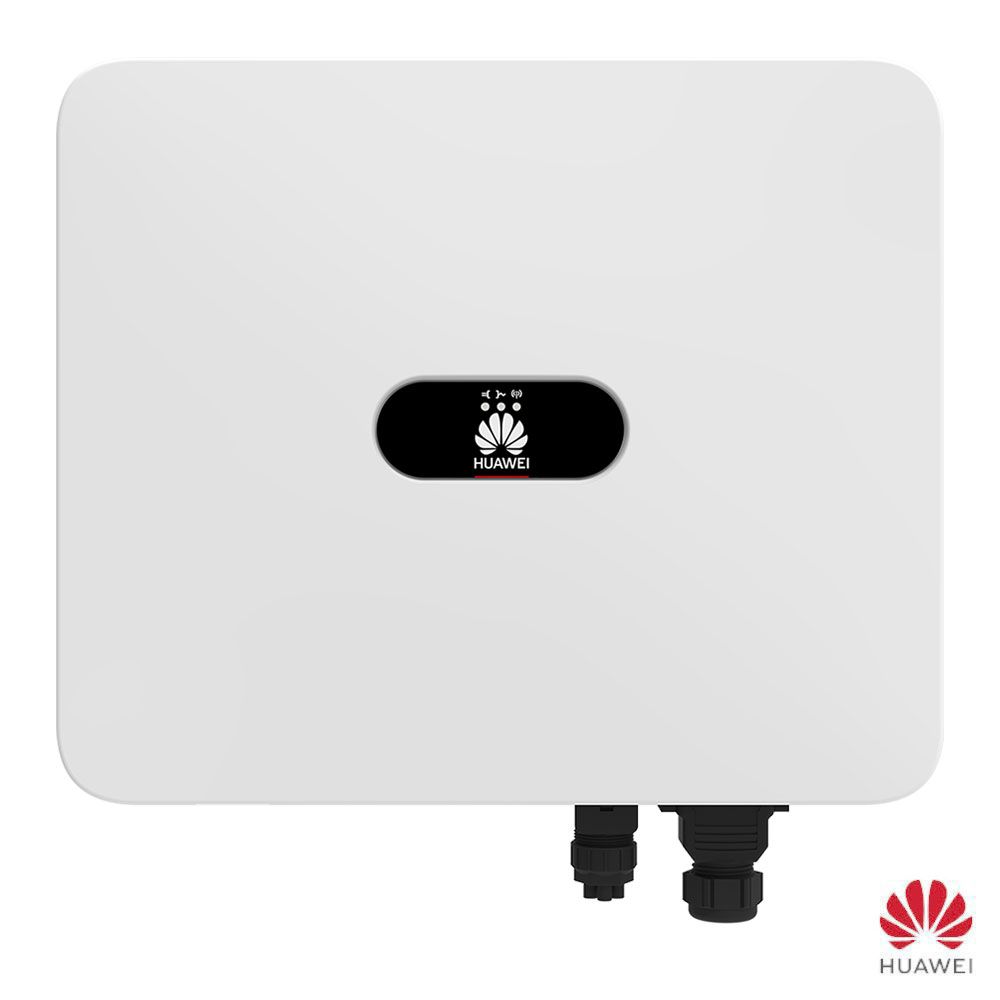

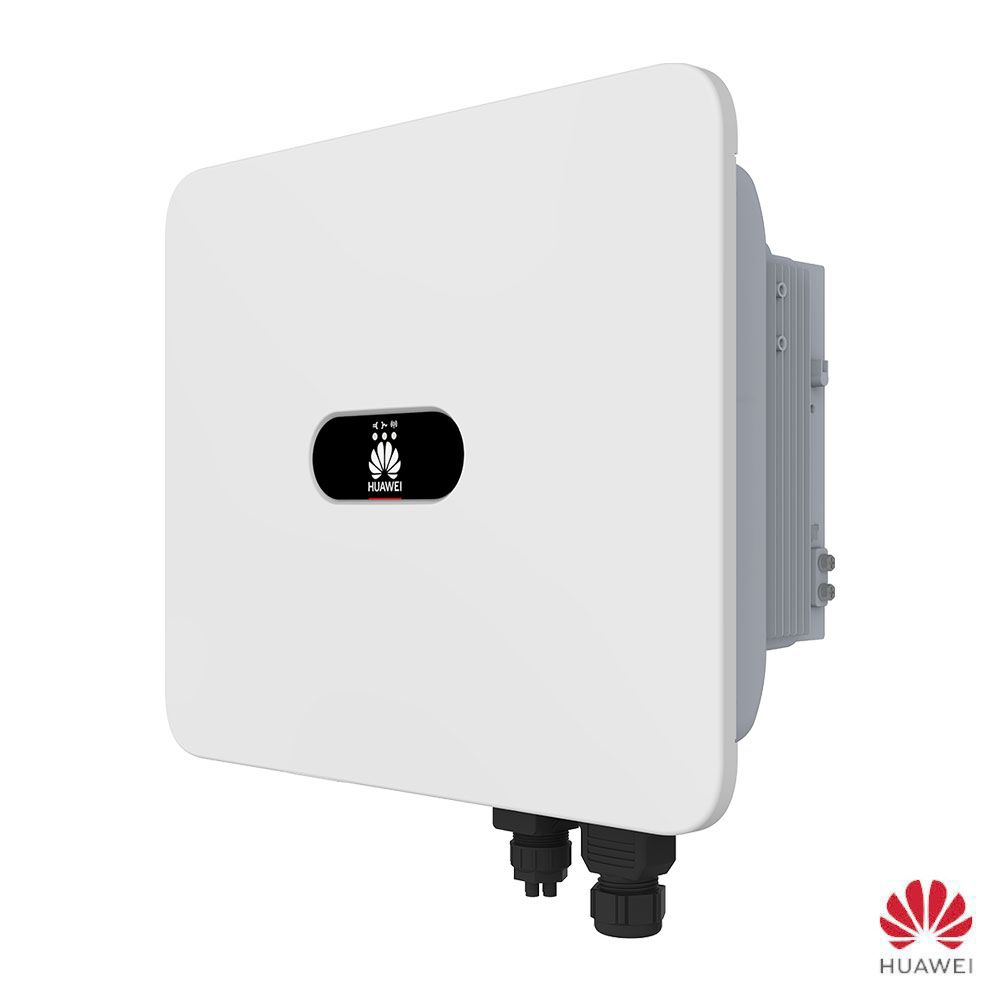

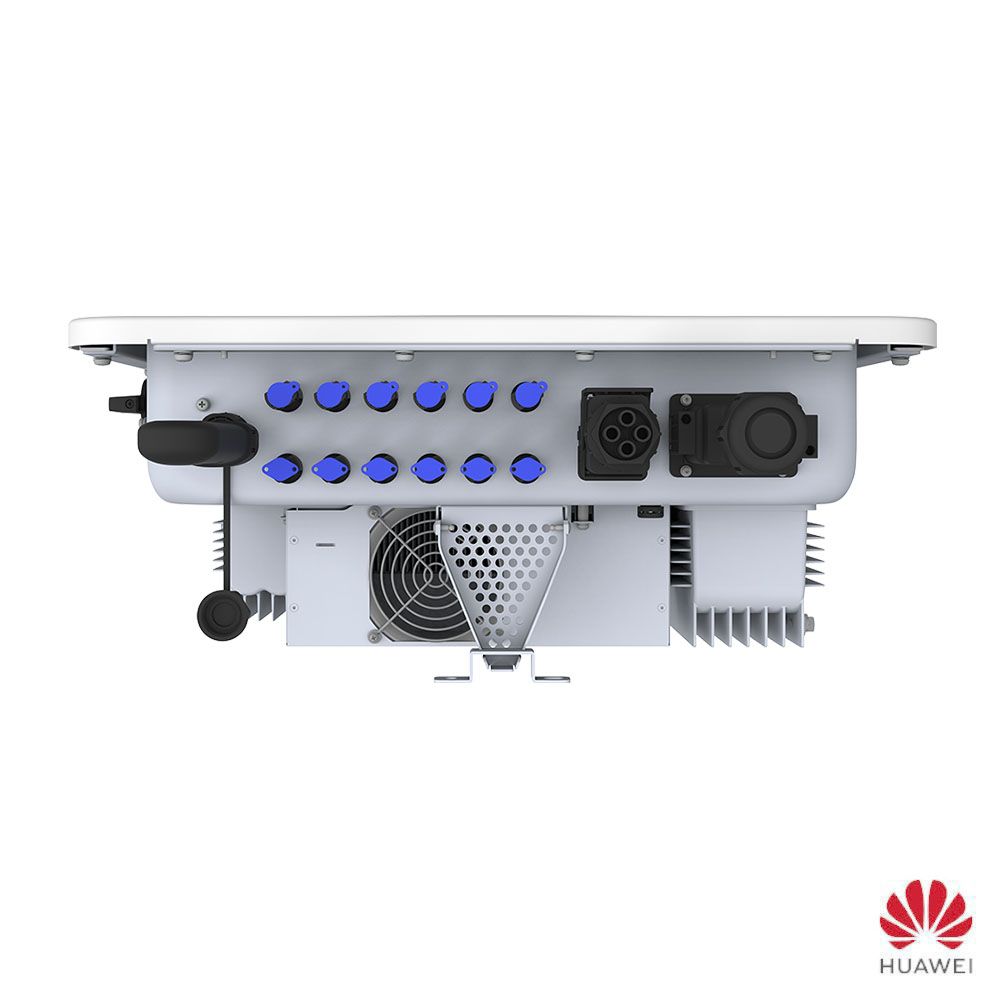

Huawei SUN2000 15K-MB0 3ph Hybrid Inverter

Huawei SUN2000 15K-MB0 3ph Hybrid Inverter

The Huawei SUN2000-15K-MB0 15kW Three-Phase Hybrid Inverter is a light and compact solution engineered for efficient energy management in advanced residential solar systems. This high-performance hybrid inverter features two MPP trackers and a total of four PV string inputs, ensuring optimal energy capture and flexibility in solar system design. With integrated PID recovery and AFCI arc detection, the SUN2000-15K-MB0 provides maximum safety and efficiency, empowering system operators with complete control over energy generation, storage, and consumption.

This inverter is compatible with the Huawei Smart PV Optimiser SUN2000-450W-P2 and supports parallel connection with up to three devices when combined with the Smart String ESS, allowing for robust scalability and expanded energy management options.

Key Features of the Huawei SUN2000 15K-MB0 3ph Hybrid Inverter:

• 15,000W power capacity, perfect for large-scale residential solar installations
• Dual MPPT (Maximum Power Point Tracking) for enhanced energy capture and system flexibility
• Supports three-phase output for stable and efficient power distribution
• Max input current per MPPT: 30 A (two-string) / 20 A (single-string)
• Compatible with Huawei Smart PV Optimiser SUN2000-450W-P2 for optimized solar production
• Allows parallel connection of up to three devices with Smart String ESS, offering scalability
• Type II AC and DC protection for increased safety and reliability
• IP66 protection rating, ensuring durability in diverse outdoor conditions
• Flexible communication options: RS485, WLAN/Ethernet (optional Smart Dongle), and 4G/3G/2G with optional Smart Dongle-4G

Technical Specifications:

Download the datasheet for Huawei SUN2000 15K-MB0 3ph Hybrid Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
