Huawei SUN2000 115KTL-M2 3ph Inverter

Huawei SUN2000 115KTL-M2 3ph Inverter

The Huawei SUN2000-115KTL-M2 115kW Three-Phase Inverter is a high-performance string inverter designed for grid-tied large-scale PV systems. This inverter combines robust features such as overvoltage protection (Type II for DC and AC), ten independent MPP trackers, and an impressive European efficiency rating of up to 98.6%. Compact for its power class and weighing only 93 kg, this inverter ensures quick and easy commissioning with plug-in DC connections, supported by the Huawei FusionSolar app for effortless setup.

Smart integration features allow for seamless communication with Huawei's smart components, enabling remote monitoring and management through the FusionSolar management system. It also supports RS485 communication for direct connection to smart logging systems.

Key Features of the Huawei SUN2000 115KTL-M2 3ph Inverter:

• 10 independent MPPTs for optimized energy capture and efficiency

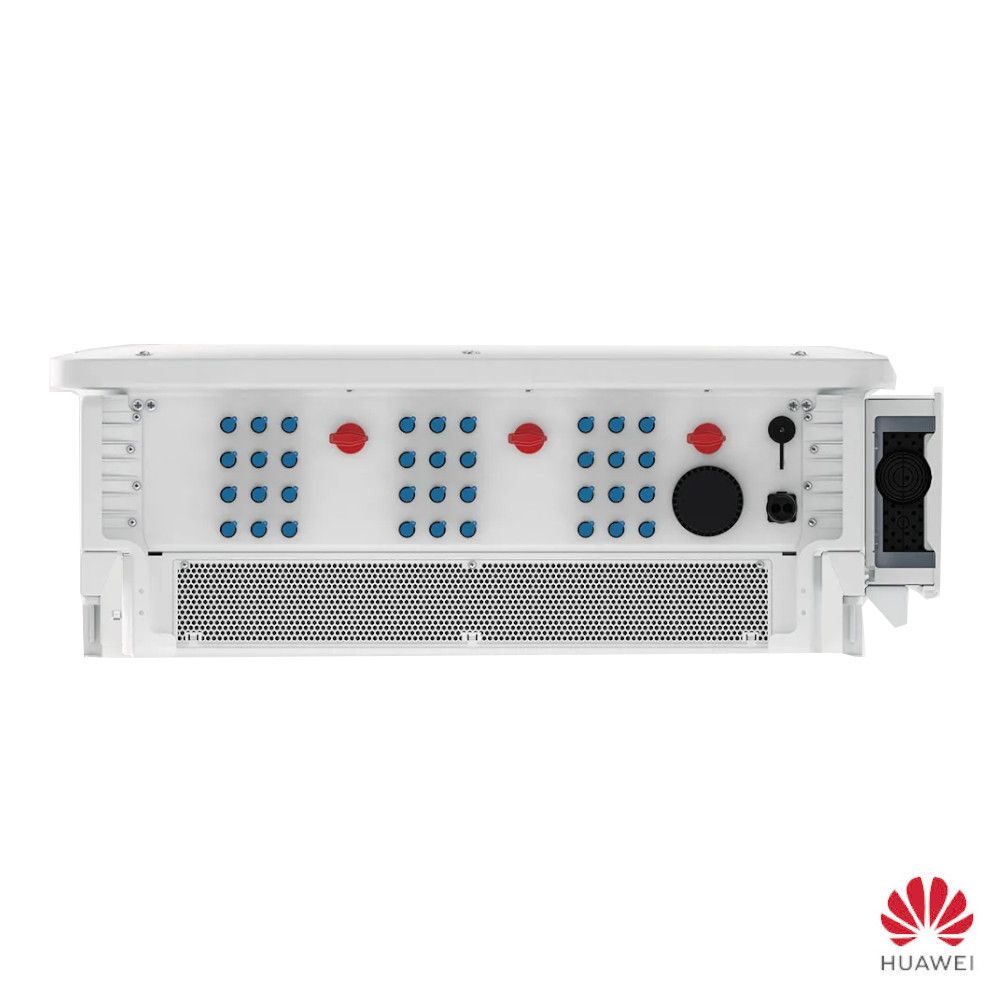

• 20 DC connections to accommodate a variety of system designs
• Maximum input voltage of 1,100V, ensuring compatibility with large PV arrays
• String-level management and Smart I-V Curve Diagnosis for enhanced system monitoring
• European efficiency of up to 98.6% (480V), maximizing energy output
• Smart air cooling system for reliable operation in various conditions
• Integrated PID recovery to protect and maintain system performance
• Type II AC and DC overvoltage protection for improved system safety
• IP66 protection rating, allowing for safe installation both indoors and outdoors
• Fuse-free design for reduced maintenance and greater reliability
• Direct meter connection via RS485 for 24-hour energy monitoring
• AC MBUS communication and easy commissioning via the FusionSolar app, with a free monitoring portal (App/Web)
• Includes Bluetooth-Dongle and mounting bracket for convenient setup

Technical Specifications:

Download the datasheet for Huawei SUN2000 115KTL-M2 3ph Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
