Huawei Smart Logger 3000A01 (up to 80 devices)

Huawei Smart Logger 3000A01EU (No MBUS)

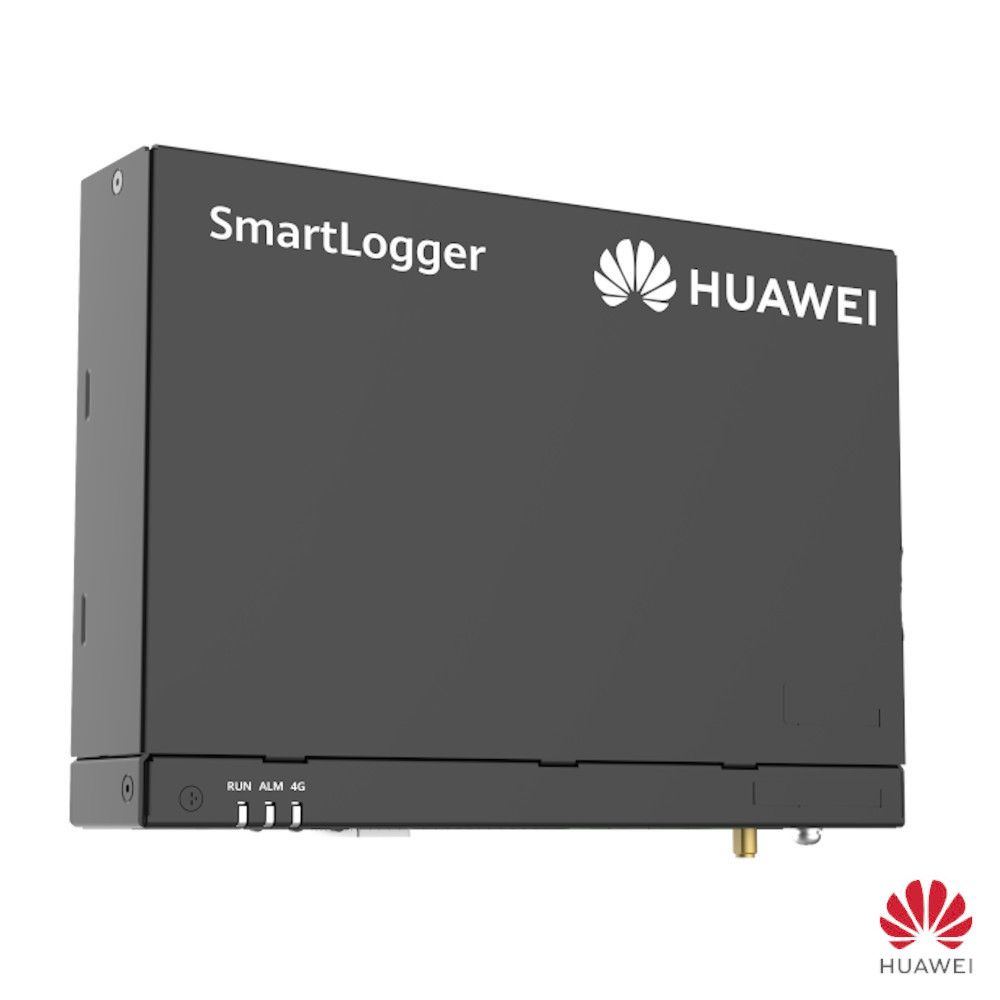

The Huawei Smart Logger 3000A01EU is a powerful data logging and management device for large-scale PV power systems, compatible with Huawei inverters from the SUN2000-60KTL range and up. This Smart Logger offers centralized monitoring of connected solar modules and inverters, making it ideal for managing complex solar installations. For smaller inverters, consider the Huawei WLAN-FE dongle.

Designed with a programmable logic controller (PLC) and a compact form factor, the Smart Logger 3000A01EU is easy to install on a wall, DIN rail, or stable surface. This model does not include an MBUS connector, but it supports multiple communication protocols, including RS485, Ethernet, and 4G, for flexible data management and monitoring.

Key Features of the Huawei Smart Logger 3000A01EU (No MBUS):

• Supports up to 80 connected devices for comprehensive system management
• Smart zero-export control to optimize energy management
• On-site installation via FusionSolar App or notebook
• Integrated web server for streamlined configuration and monitoring
• Supports RS485, Ethernet, and 4G communication for versatile connectivity
• Compatible with IEC60870-5-104 standard for integration with third-party monitoring systems
• IP20 protection rating with integrated overvoltage protection

Technical Specifications:

Included in Delivery:

• Mains cable 230V
• Mains adapter 12VDC + holder
• Patch cable
• 4G antenna
• Connector for DI/AI/DO contacts
• Connector for RS485

Note: Suitable for Huawei inverters from the SUN2000-60KTL range. Compatible with older and newer Huawei inverter ranges. Image shown is an approximate representation of the product.

Download the datasheet for Huawei Smart Logger 3000A01EU (No MBUS) here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
