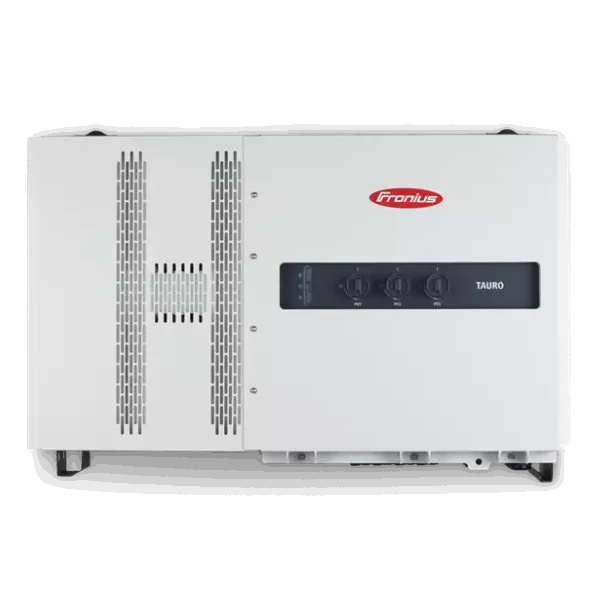

Fronius Tauro 50-3-D 50kW direct 3-phase inverter

Fronius Tauro 50-3-D 50kW direct 3-phase inverter

£5,999.99
£5,999.99
Sale Sold out
Tax included. Shipping calculated at checkout.

4.210.300

The three-phase Fronius Tauro in the 50 kW power class promises maximum performance, even under the harshest conditions. With its smart hardware design, it not only contributes to BOS cost optimization, but also offers unprecedented flexibility in system design.

The Fronius Tauro can be used to implement sophisticated roofs in both centralised (P variant) and decentralised system designs (D variant). Simplest installation and the fastest service on the market also guarantee maximum safety.

INPUT DATA

Number of MPP trackers 3
Max. input current (Idc max_inverter)
 134 A
Feed-in start voltage (Udc start)
 200 V
MPP voltage range (Umpp min - Umpp max)
 400 - 870 V9)
Max. PV generator power (Pdc max)
 75 kWpeak
Max. input current PV1(Idc max, PV1)
 36 A
Max. input current PV2(Idc max, PV2)
 36 A
Max. input current PV3(Idc max, PV3)
 72 A
Max. short-circuit current PV1(Isc max, PV1)*
 72 A
Max. short-circuit current PV2 (Isc max, PV2)*
 72 A
Max. short-circuit current PV3(Isc max, PV3)*
 125 A
Max. power PV system PV1 (Pdc max,PV1)
 25 kWpeak
Max. power PV system PV2 (Pdc max, PV2)
 25 kWpeak
Max. power PV system PV3 (Pdc max, PV3)
 50 kWpeak
Max. AC fuse size rating 355 A
Max. short-circuit current inverter(Isc max, inverter)
 240 A
Max. short-circuit current string(Isc max, string)
 20 A
Max. input current string(Idc max, String)
 14,5 A
Number of DC connections PV1
 4
Number of DC connections PV2
 3
Number of DC connections PV3
 7
Max. short-circuit current string(Isc max, string)- 30 A Option
30 A
Max. input current string(Idc max, String)- 30 A Option
22 A
Number of DC connections PV1 - 30 A Option
4
Number of DC connections PV2 - 30 A Option
5
Number of DC connections PV3 - 30 A Option
5

OUTPUT DATA

AC nominal output (Pac,r)
 50 kW
Max. output power (Pac max)
 50 kVA
AC output current (Iac nom)
 75,8A at 220Vac , 72,5A at 230Vac
Grid connection (Uac,r)
 3~ NPE 380/220 , 3~ NPE 400/230 V
AC voltage range (Umin - Umax)
 180 - 270 V
Frequency (fr)
 50/60 Hz
Frequency range (fmin - fmax)
 45 - 65 Hz
Total harmonic distortion <3% @Pnom (230/400VAC 50Hz)
Power factor (cos φac,r)
 1 ind,/cap,
Max. DC fuse size rating 20 A

GENERAL DATA

Length
 1109 mm
Width
 755 mm
Depth
 346,2 mm
Weight 92 kg
Weight incl. packaging 111 kg
Degree of protection IP65
Protection class 1
Overvoltage category (DC / AC) 1)
2 / 3
Night-time consumption 15 W
Installation Indoor and outdoor4)
