Dyness Powerbox G2 10.24kWh LV LFP Battery
Dyness Powerbox G2 10.24kWh LV LFP Battery
Couldn't load pickup availability
SKU:Dyness-PBG2

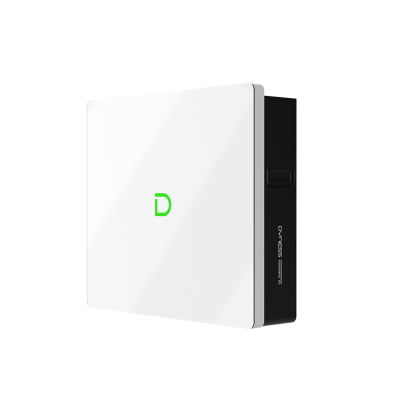

Powerbox G2 - 10.24kWh Low Voltage Energy Storage System
The Powerbox G2 is a high-performance, low-voltage residential energy storage system designed for maximum flexibility and efficiency. With the ability to scale up to 50 parallel units, it offers energy coverage ranging from 10.24kWh to 512kWh, making it an ideal solution for both small households and larger home energy storage systems.
Its compact 6.5-inch slim design allows for flexible installation in any space, while its advanced 1C discharge rate ensures a reliable power supply during peak household electricity consumption.
Key Features
- Flexible Expansion: Supports up to 50 parallel units, providing scalable energy storage from 10.24kWh to 512kWh.
- Automatic Self-Heating: Efficient charging even at temperatures as low as -20°C.
- Ultra-Safe Protection: Smart fire suppression system with a 5-second response time and auto pressure relief.
- 1C Charge-Discharge Rate: Delivers a maximum output of 10.24kW and a continuous current of 200A.
- Easy Installation: 30% reduced volume and 15% less weight for effortless setup.
- IP65 Protection Rating: Dustproof, waterproof, and built for outdoor installations in extreme weather conditions.
- Long-Term Reliability: Utilises LiFePO4 battery cells with unlimited cycles and a 10-year warranty.
- Smart App Management: Monitor and control your energy storage system remotely.
Technical Specifications
| Product Model | Powerbox G2 |
|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Energy | 10.24 kWh |
| Expansion Capability | Up to 50 parallel units (max 512kWh) |
| Charge/Discharge Rate | 1C (Max Output: 10.24kW, Max Continuous Current: 200A) |
| Operating Temperature | -20°C to 55°C (Self-heating at -20°C) |
| Protection Level | IP65 (Waterproof & Dustproof) |
| Fire Safety | Automatic 5-second fire suppression & pressure relief system |
| Cycle Life | Unlimited cycles / 10 years |
| Weight | 96 kg |
Reliable, Scalable, and Safe Energy Storage
The Powerbox G2 is designed to provide worry-free household power storage, whether for daily energy use, backup power during outages, or reducing reliance on the grid. Its flexible expansion allows users to mix new and old battery units without performance loss, making it an adaptable and cost-effective energy solution.
Built for extreme environments, the Powerbox G2 ensures seamless operation in sub-zero temperatures, with self-heating technology that activates at -20°C. Its advanced fire safety mechanisms, including 5-second automatic suppression, provide an extra layer of security.
Download the Datasheet
Download the Powerbox G2 Datasheet
Need Technical Support?
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
