Dyness

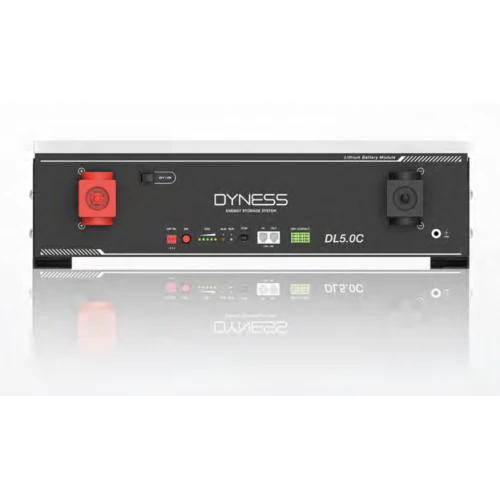

Dyness DL5.0C

Dyness DL5.0C

£898.99
£898.99
Sale Sold out
Tax included. Shipping calculated at checkout.

DL5.0C

Discover the Dyness DL5.0C, a finely crafted solution designed to excel in residential and domestic & commercial settings. Engineered with cutting-edge LFP battery technology, this module offers seamless remote updates and convenient APP monitoring for effortless energy management. With versatile installation options and scalability ranging from 5.12 to 256 kWh (max. 50 modules in parallel), the Dyness DLC5.0C provides a diverse range of energy storage solutions tailored to your specific needs.
Battery Type LiFePO4
Nominal Battery Energy 5.12 kWh
Nominal Capacity 100Ah
Nominal Voltage 51.2V
Operating Voltage 44.8 ~ 57.6V
Recomended Charge & Discharge C Rate 0.5C
Maximum Discharge C rate 1C
Recommended Charge/Discharge Current 50A
Max Continous Charge Current 75A
Max Continous Discharge Current 100A
Peak Power Charge/Discharge Current 110A (15s)
Depth of Discharge (DOD) 95%
Net Weight 54 kg
Dimension[W*D*H] 558*545*150 mm
Charging Temp. Range 0~55
Discharging Temp. Range -20~55
Communication CAN/RS485/RS232
Cycle Life[1] 6000 Cycles
Protection Level lP20
Expansion up to 50 units in parallel
Pros Can be used in both off-grid and hybrid setups, compact design
Certification & Safety Standard UN38.3/CE-EMC/IEC62619/CEI-021 all undergoing

[1]Test conditions: 0.2C Charging/Discharging, @25C
