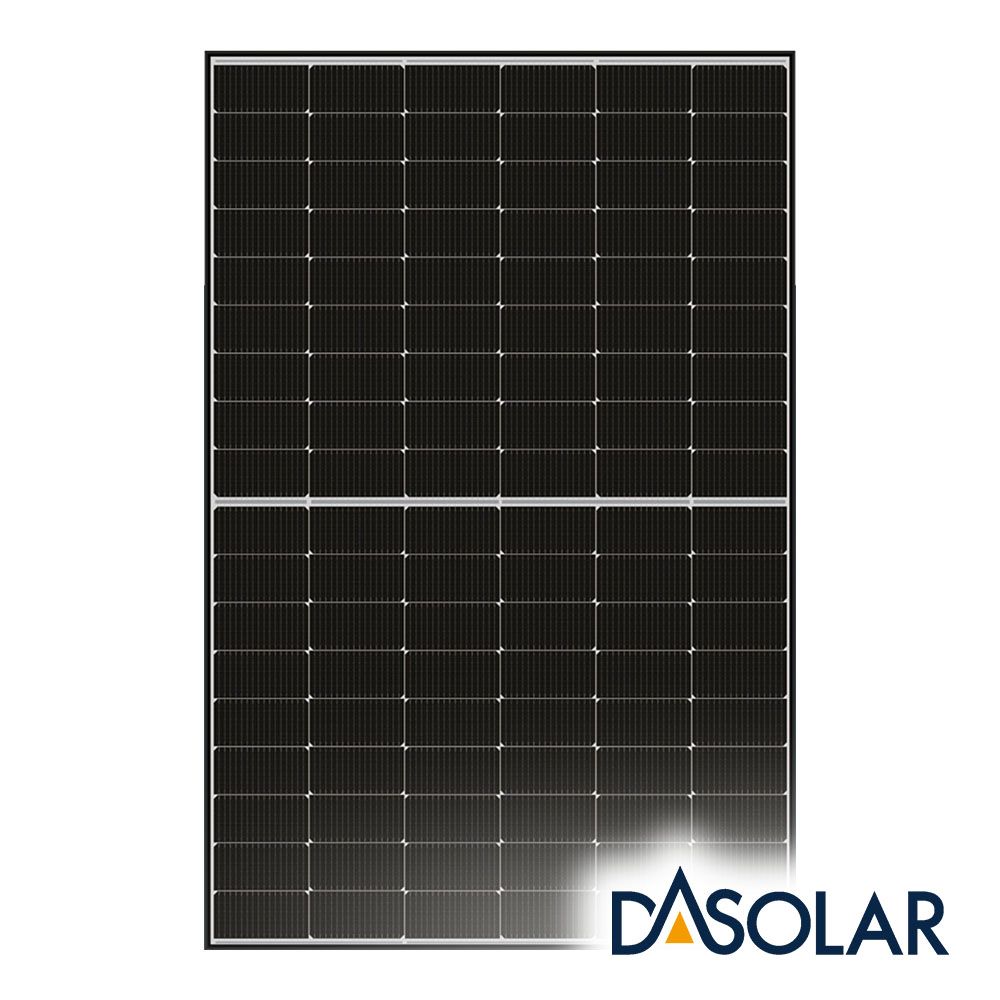

DAS Solar 440W N-Type TOPCon Bifacial, Dual Glass, Black Frame

Product Description

The DAS Solar 440W N-Type TOPCon Bifacial Dual Glass module with a Black Frame is a cutting-edge solar solution designed to maximise energy efficiency and performance. DAS Solar is at the forefront of N-Type technology innovation, delivering products that combine high-performance energy conversions with exceptional reliability. This module is engineered to deliver optimal performance even in challenging conditions, making it a versatile choice for various applications.

Key Features:

• High Module Conversion Efficiency: Achieves up to 22.5% efficiency, ensuring maximum power output.
• N-Type Bifacial Module: Utilises bifacial technology to capture sunlight from both sides, significantly increasing energy yield.
• Black Frame, Anodised Aluminium Alloy: Provides a sleek, modern appearance with durable construction for long-lasting use.
• Glass Thickness: 1.6 mm, ensuring robust protection and durability.
• Maximum System Voltage: 1,500V, suitable for high-voltage solar installations.
• Enhanced Low Irradiance Performance: Delivers higher power output even in low-light environments, such as cloudy or foggy conditions.
• Excellent Appearance and Performance: Features a symmetrical design with bifacial solar cells, minimising the risk of hidden micro-cracks.
• High Reliability: Passes 3-fold IEC new standard tests, ensuring exceptional durability and performance.
• Double Sided Power Generation: Bifaciality up to 80%, providing up to 30% more energy yield compared to conventional modules.
• Versatile Application Scenarios: Ideal for diverse environments including Building-integrated photovoltaics (BIPV), snow fields, vertical installations, high humidity regions, strong wind areas, and desert regions.
• Extended Load Tests: Certified for maximum static test load on the front (5400 Pascal) and rear (2400 Pascal), ensuring resilience under extreme conditions.
• IP68 Rating: Includes 3 bypass diodes for enhanced protection and reliability.
• Comprehensive Warranties: Backed by a 25-year product warranty and a 30-year performance warranty, ensuring long-term peace of mind.

Technical Specifications:

• Brand: DAS Solar
• Power Class: 440 W
• Watts per m²: 225
• Cells: 108 Half Cells (6x18 half cells)
• Frame Colour: Black
• Backsheet: White
• Popular Features: N-Type, TOPCon, Glass-Glass/Dual Glass, Bifacial
• Module Efficiency: 22.5%
• Open Circuit Voltage (Voc): 38.88V
• Short Circuit Current (Isc): 13.98A
• Connector Type: MC4-EVO2 Original
• Dimensions (LxWxT): 1,722 x 1,134 x 30 mm
• Product Weight: 20.5 kg
• Panels per Pallet: 36
• Panels per Container: 936
• MCS No.: BABT8843-112-440W
• Warranty Period: 25 Years
• Performance Warranty: 30 Years
• Annual Degradation: 0.40%

The DAS Solar 440W N-Type TOPCon Bifacial Dual Glass module is designed to deliver superior efficiency, durability, and aesthetic appeal, making it an ideal choice for both residential and commercial solar installations.

Datasheet:
Download datasheet here.
