BYD Combiner Box for Battery-Box Premium HVS & HVM
BYD Combiner Box for Battery-Box Premium HVS & HVM
Couldn't load pickup availability
SKU:13193966-00
Battery-Box Premium HVS/HVM Combiner Box

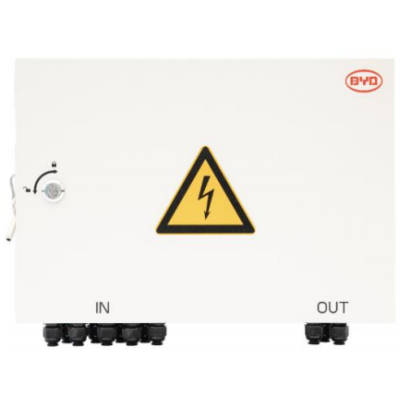

The Battery-Box Premium HVS/HVM Combiner Box is designed for the safe and efficient parallel connection of 2 or 3 BYD Battery-Box Premium HVS or HVM towers. It simplifies DC cabling connections by consolidating multiple towers into a single DC cable string connected to the inverter.
Engineered exclusively for use with the BYD Battery-Box Premium HVS and HVM, this combiner box ensures compatibility, reliability, and safety for your energy storage system. Please ensure that the planned configuration meets the BYD Premium HV Compatible Inverter List and that all battery towers have the same module quantity and state of charge (SOC). Mixing HVS and HVM towers is not permitted.
Technical Parameters
| Feature | Specification |
|---|---|
| Model | CBH-40A |
| Supported Battery-Box Model | BYD Battery-Box Premium HVS & HVM |
| Max Connection of HVS/HVM Towers | 3 |
| Max Input Current per Battery Tower | 35 A |
| Max Output Current | 40 A |
| Dimensions (H x W x D) | 350 x 540 x 120 mm |
| Weight | 9.7 kg |
| Max Operating Voltage | 1000 V (DC) |
| Enclosure Protection Rating | IP55 |
| Operating Temperature | -10 °C to +50 °C |
| DC Input Cable Glands Entry | 6 M20 × 1.5 |
| DC Output Cable Glands Entry | 2 M20 × 1.5 |
| DC Conductor Cross-Section | 6 mm² to 16 mm² |
| Ground Cable Cross-Section | 10 mm² to 16 mm² |
Note: Derating of 0.5%/K of maximum current applies for operating temperatures from 40°C to 50°C.
